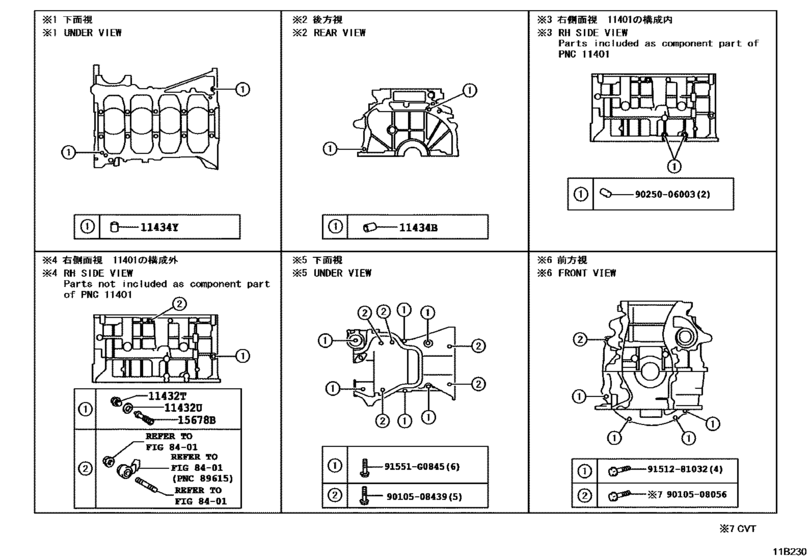

Cylinder Block ([05.2016 - ] (1605- )2AZFE) Diagram Toyota PREVIA/ TARAGO
- Year
- 2012 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- AERAS
- ENGINE
- 2AZFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 05.2012
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11432T
|
11432T
90341-14013 Plug, W/head Taper Screw, No.1[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90341-14013 |
US $2.15 |
||
|
11432U
|
11432U
90430-14011 Gasket, Straight Screw Plug No.1(For Cylinder Block)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90430-14011 |
US $0.90 |
||
|
11432U
|
11432U
90430-C0004
Gasket, Straight Screw Plug No.1(For Cylinder Block)
[04.2012 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194 |
90430-C0004 |
— | ||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[04.2012 - 09.2013] 2AZFE..ACR50..(AERAS,DLX)..GEN L=22,OD=10,2AZ-FE,*194 |
90250-10113 |
from US $1.17 |
||
|
11434B
|
11434B
90250-C0012
Pin, Straight(For Clutch Housing Set)
[09.2013 - 05.2016] 2AZFE..ACR50..(AERAS,DLX)..GEN L=22,OD=10,2AZ-FE,(L),*194 |
90250-C0012 |
— | ||
|
11434Y
|
11434Y
90250-08074 Pin, Straight(For Timing Gear Case)[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
90250-08074 |
US $1.79 |
||
|
15678B
|
15678B
15678-28010 Filter, Oil Control Valve[04.2012 - 05.2016] 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN) *195; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*194; 2AZFE..ACR50..(AERAS,DLX)..GEN 2AZ-FE,*195 |
15678-28010 |
from US $5.11 |
||
|
91551G0845
|
91551G0845
91551-G0845 Bolt(For Camshaft Housing Set) |
91551-G0845 |
US $1.79 |
||
|
9010508056
|
9010508056
90105-08056 Bolt (For Overdrive Case & Transaxle Case Setting) |
90105-08056 |
US $2.33 |
||
|
9010508439
|
9010508439
90105-08439 BOLT FLANGE |
90105-08439 |
US $2.48 |
||
|
9025006003
|
9025006003
90250-06003 Pin, Straight |
90250-06003 |
US $1.61 |
||
|
9151281032
|
9151281032
91512-81032 New Genuine Part |
91512-81032 |
US $1.97 |
