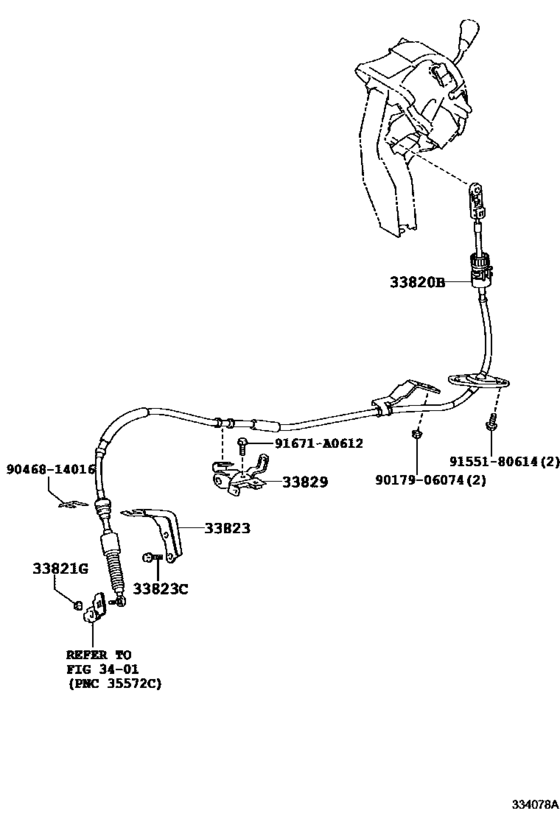

Shift Lever & Retainer ([03.2010 - ] (1003- )CVT) Diagram Toyota PREVIA/ TARAGO
- Year
- 2012 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- AERAS
- ENGINE
- 2AZFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 05.2012
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33820B
|
33820B
33820-28450 Cable Assy, Transmission Control[04.2012 - 05.2016] ACR50..CVT |
33820-28450 |
US $126.67 |
||
|
33821G
|
33821G
94151-80800 Nut (For Transmission Control Cable)[04.2012 - 05.2016] ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
94151-80800 |
from US $0.80 |
||
|
33823
|
33823
33823-28270 Bracket, Transmission Control Cable, No.1[04.2012 - 05.2016] ACR50..CVT |
33823-28270 |
US $9.90 |
||
|
33823C
|
33823C
91611-B0816 Bolt[04.2012 - 05.2016] ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
91611-B0816 |
from US $1.01 |
||
|
33829
|
33829
33829-28070 Support, Transmission Control Cable[04.2012 - 05.2016] ACR50..CVT |
33829-28070 |
US $7.57 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.64 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.61 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
