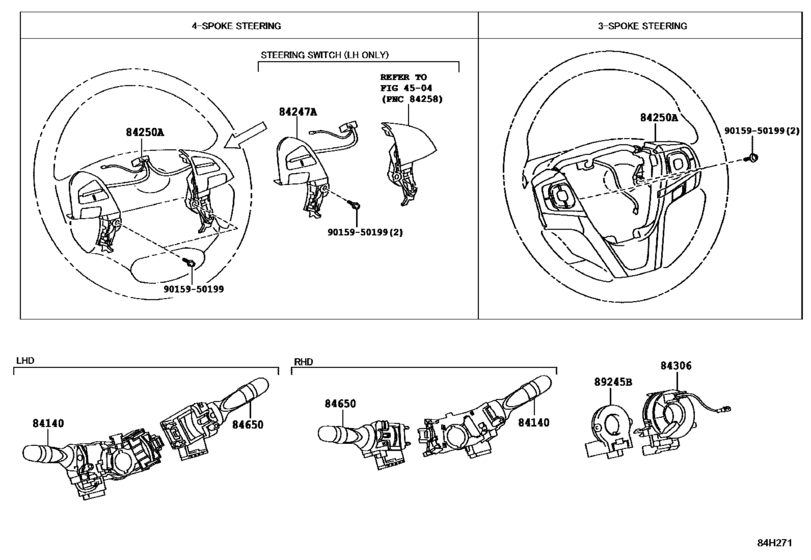

Switch & Relay & Computer ([05.2016 - ] STEERING (1605- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2012 - 2018
- Sales region
- General
- Frame
- ACR50
- grade
- AERAS
- ENGINE
- 2AZFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- From
- 05.2012
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-12570 Switch Assy, Headlamp Dimmer[05.2016 -] ACR50..AERAS |
84140-12570 |
US $147.60 |
||
|
84140
|
84140
84140-42070 Switch Assy, Headlamp Dimmer[04.2012 - 05.2016] GSR50..ARL;ACR50..RHD..CVT;ACR50..RHD..4FC..GEN |
84140-42070 |
from US $99.16 |
||
|
84247A
|
84247A
84247-28120 Switch, Steering Pad, Lh[04.2012 - 04.2013] GSR50..RHD..GEN;ACR50..(AERAS,DLX)..GEN AUDIO-AM/FM & CD & 6SPEAKER |
84247-28120 |
US $128.13 |
||
|
84250A
|
84250A
84250-28390
Switch Assy, Steering Pad
[05.2016 -] ACR50,GSR50..RHD |
84250-28390 |
— | ||
|
84306
|
84306
84306-52090 Cable Sub-Assy, Spiral[04.2012 - 05.2016] ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..RHD..4FC..GEN |
84306-52090 |
from US $167.06 |
||
|
84650
|
84650
84652-42130
Switch Assy, Windshield Wiper
[04.2012 - 02.2015] GSR50..ARL;ACR50..RHD..CVT;ACR50..RHD..4FC..GEN |
84652-42130 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-42132 Switch Assy, Windshield Wiper[04.2012 - 02.2015] GSR50..ARL;ACR50..RHD..CVT;ACR50..RHD..4FC..GEN |
84652-42132 |
US $131.20 |
||
|
84650
|
84650
84652-42132 Switch Assy, Windshield Wiper[03.2015 - 05.2016] ACR50,GSR50..RHD |
84652-42132 |
US $131.20 |
||
|
89245B
|
89245B
89245-33040 Sensor, Steering[04.2012 - 04.2013] GSR50;ACR50..CVT..(AERAS,DLX); ACR50..CVT..GL VSC-WITH |
89245-33040 |
US $295.84 |
||
|
89245B
|
89245B
89245-33050 Sensor, Steering[04.2013 - 05.2016] GSR50;ACR50..RHD;ACR50..LHD..4FC..GEN; ACR50..4FC..GEN VSC-WITH&HEADLAMP-DISCHARGE & AFS; ACR50..GL..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
89245-33050 |
from US $185.72 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.53 |
||
