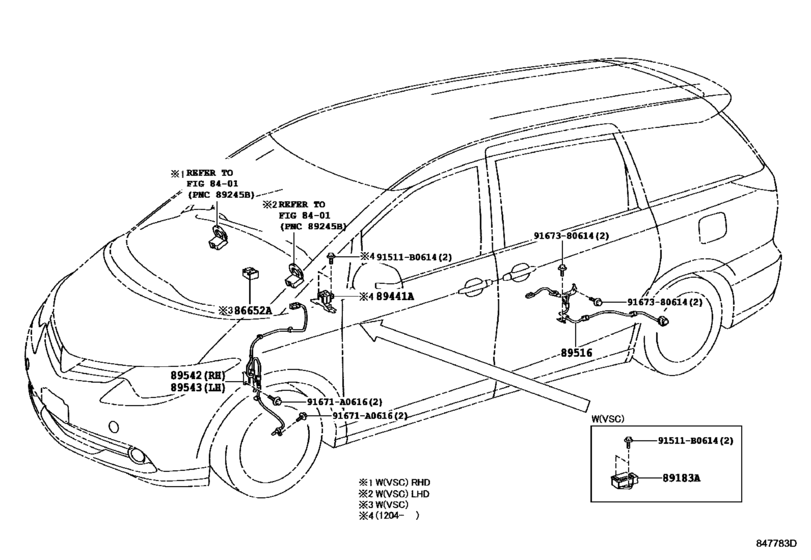

Abs & Vsc ([01.2006 - 05.2016] (0601-1605)) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86652A
|
86652A
86652-48010 Buzzer Assy, Skid Control[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN VSC-WITH |
86652-48010 |
US $35.67 |
||
|
86652A
|
86652A
86652-50010 Buzzer Assy[12.2008 - 04.2012] GSR50..LHD;ACR50..CVT;ACR50..LHD..GL..GEN; ACR50..GCC;ACR50..RHD..4FC..GEN;ACR50..LHD..DLX..GEN VSC-WITH |
86652-50010 |
from US $31.45 |
||
|
89183A
|
89183A
89183-28010 Sensor, Yawrate[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN VSC-WITH |
89183-28010 |
US $1,116.75 |
||
|
89516
|
89516
89516-28050 Wire, Skid Control Sensor[01.2006 - 12.2008] ACR50,GSR50 RH |
89516-28050 |
US $28.83 |
||
|
89516
|
89516
89516-28060 Wire, Skid Control Sensor[01.2006 - 12.2008] ACR50,GSR50 LH |
89516-28060 |
US $33.96 |
||
|
89542
|
89542
89542-28100 Sensor, Speed, Front Rh[01.2006 - 12.2008] ACR50,GSR50 |
89542-28100 |
from US $175.71 |
||
|
89543
|
89543
89543-28100 Sensor, Speed, Front Lh[01.2006 - 12.2008] ACR50,GSR50 |
89543-28100 |
from US $197.87 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.64 |
||
|
9167380614
|
9167380614
91673-80614 BOLT, FLANGE W/WASER |
91673-80614 |
US $1.08 |
