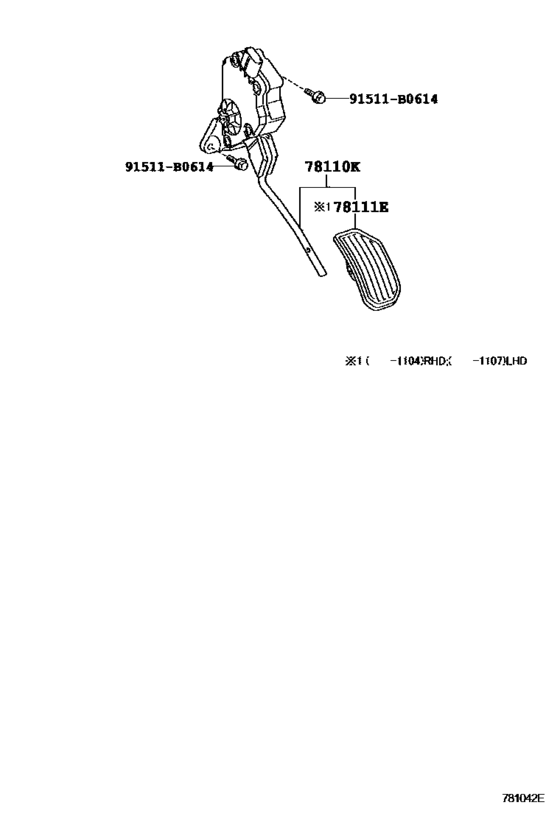

Accelerator Link ([01.2006 - ] (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110K
|
78110K
78110-28020
Sensor Assy, Accelerator Pedal
[01.2006 - 12.2008] ACR50,GSR50..LHD |
78110-28020 |
— | ||
| replacement | |||||
|
78110K
|
78110K
78110-58041
Sensor Assy, Accelerator Pedal
[01.2006 - 12.2008] ACR50,GSR50..LHD |
78110-58041 |
— | ||
|
78110K
|
78110K
78110-58020
Sensor Assy, Accelerator Pedal
[07.2011 - 04.2012] ACR50,GSR50..LHD |
78110-58020 |
— | ||
| replacement | |||||
|
78110K
|
78110K
78110-58041
Sensor Assy, Accelerator Pedal
[07.2011 - 04.2012] ACR50,GSR50..LHD |
78110-58041 |
— | ||
|
78110K
|
78110K
78110-58040
Sensor Assy, Accelerator Pedal
[05.2014 - 01.2016] ACR50,GSR50..LHD |
78110-58040 |
— | ||
| replacement | |||||
|
78110K
|
78110K
78110-58041
Sensor Assy, Accelerator Pedal
[05.2014 - 01.2016] ACR50,GSR50..LHD |
78110-58041 |
— | ||
|
78110K
|
78110K
78110-58041
Sensor Assy, Accelerator Pedal
[02.2016 - 05.2016] ACR50,GSR50..LHD |
78110-58041 |
— | ||
|
78111E
|
78111E
78111-42010 Pedal, Accelerator[01.2006 - 12.2008] ACR50,GSR50 |
78111-42010 |
US $10.05 |
||
| replacement | |||||
|
78111E
|
78111E
78111-12150 Pedal, Accelerator[01.2006 - 12.2008] ACR50,GSR50 |
78111-12150 |
US $11.36 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
