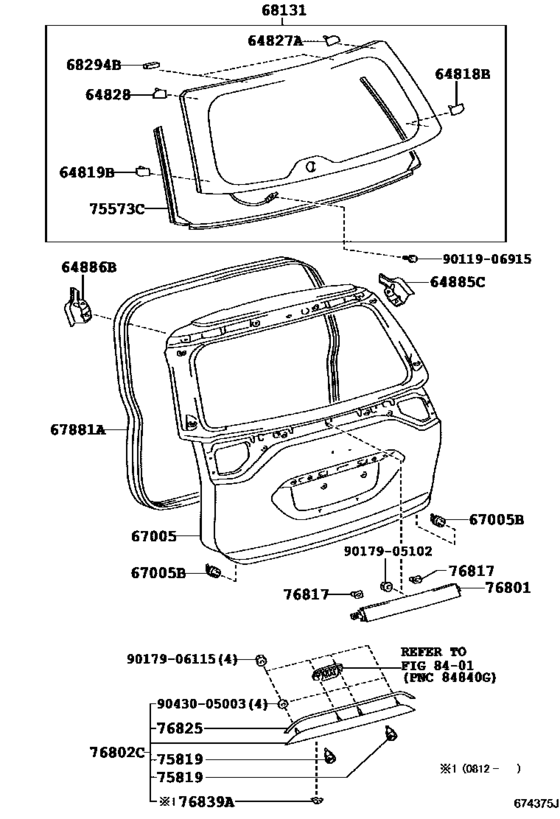

Back Door Panel & Glass ([01.2006 - ] DOOR PANEL (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64818B
|
64818B
64818-28020 Spacer, Back Door Glass, No.1[01.2006 - 12.2008] ACR50,GSR50 |
64818-28020 |
US $7.35 |
||
|
64819B
|
64819B
64819-28020 Spacer, Back Window Glass, No.2[01.2006 - 12.2008] ACR50,GSR50 |
64819-28020 |
US $7.35 |
||
|
64827A
|
64827A
64827-28040 Clip, Back Window Glass, Rh[01.2006 - 12.2008] ACR50,GSR50 |
64827-28040 |
US $6.63 |
||
|
64828
|
64828
64828-28030 Clip, Back Window Glass, Lh[01.2006 - 12.2008] ACR50,GSR50 |
64828-28030 |
US $6.63 |
||
|
64885C
|
64885C
64885-28060 Channel, Back Door Glass, Rh[01.2006 - 12.2008] ACR50,GSR50 |
64885-28060 |
US $15.59 |
||
|
64886B
|
64886B
64886-28060 Channel, Back Door Glass, Lh[01.2006 - 12.2008] ACR50,GSR50 |
64886-28060 |
US $15.59 |
||
|
67005
|
67005
67005-28B00
Panel Sub-Assy, Back Door
[01.2006 - 06.2008] ACR50,GSR50 |
67005-28B00 |
— | ||
| replacements | |||||
|
67005
|
67005
67005-28C90 Panel Sub-Assy, Back DoorBACK DOOR [01.2006 - 06.2008] ACR50,GSR50 |
67005-28C90 |
US $866.85 |
||
|
67005
|
67005
76889-28020 Seal, Rear Spoiler, No.1[01.2006 - 06.2008] ACR50,GSR50 |
76889-28020 |
US $2.15 |
||
|
67005
|
67005
67005-28B20
Panel Sub-Assy, Back Door
[01.2006 - 06.2008] ACR50,GSR50..LHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
67005-28B20 |
— | ||
| replacements | |||||
|
67005
|
67005
67005-28D10 Panel Sub-Assy, Back DoorBACK DOOR [01.2006 - 06.2008] ACR50,GSR50..LHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
67005-28D10 |
US $848.29 |
||
|
67005
|
67005
76889-28020 Seal, Rear Spoiler, No.1[01.2006 - 06.2008] ACR50,GSR50..LHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
76889-28020 |
US $2.15 |
||
|
67005
|
67005
67005-28C90 Panel Sub-Assy, Back DoorBACK DOOR [06.2008 - 12.2008] ACR50,GSR50 |
67005-28C90 |
US $866.85 |
||
|
67005
|
67005
67005-28D10 Panel Sub-Assy, Back DoorBACK DOOR [06.2008 - 12.2008] ACR50,GSR50..LHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
67005-28D10 |
US $848.29 |
||
|
67005B
|
67005B
90541-10042 Cushion(For Back Door Panel)[01.2006 - 12.2008] ACR50,GSR50 |
90541-10042 |
from US $2.44 |
||
|
67881A
|
67881A
67881-28120 Weatherstrip, Back Door[01.2006 - 12.2008] ACR50,GSR50 |
67881-28120 |
from US $152.26 |
||
|
68131
|
68131
68105-28610
Glass, Back Door
[01.2006 - 10.2008] ACR50,GSR50 *UVCEHT,T=3.1,GREEN |
68105-28610 |
— | ||
| replacement | |||||
|
68131
|
68131
68105-28611
Glass, Back Door
[01.2006 - 10.2008] ACR50,GSR50 *UVCEHT,T=3.1,GREEN |
68105-28611 |
— | ||
|
68131
|
68131
68105-28611
Glass, Back Door
[11.2008 - 12.2008] ACR50,GSR50 *UVCEHT,T=3.1,GREEN |
68105-28611 |
— | ||
|
68131
|
68131
68105-28680 Glass, Back DoorBACK DOOR [12.2008 - 04.2012] GSR50..LHD;ACR50..GCC,GEN *UVCEHT,T=3.1,GREEN |
68105-28680 |
US $392.54 |
||
|
68294B
|
68294B
68294-26030 Dam, Side Lower WindowBACK DOOR GLASS ADHESIVE [07.2006 - 12.2008] ACR50,GSR50 |
68294-26030 |
from US $2.46 |
||
|
75573C
|
75573C
75573-28030 Moulding, Back Window, Outside[01.2006 - 12.2008] ACR50,GSR50 |
75573-28030 |
from US $38.49 |
||
|
75819
|
75819
75819-33010 Clip, Luggage Compartment Door Moulding[01.2006 - 12.2008] ACR50,GSR50 |
75819-33010 |
from US $1.31 |
||
|
76801
|
76801
76801-28260 Garnish Sub-Assy, Back Door, Outside[07.2007 - 12.2008] ACR50,GSR50 |
76801-28260 |
US $141.44 |
||
|
76801
|
76801
76801-28330 Garnish Sub-Assy, Back Door, Outside[01.2006 - 06.2007] ACR50,GSR50 |
76801-28330 |
US $154.34 |
||
| replacement | |||||
|
76801
|
76801
76801-28260 Garnish Sub-Assy, Back Door, Outside[01.2006 - 06.2007] ACR50,GSR50 |
76801-28260 |
US $141.44 |
||
|
76801
|
76801
76801-28400 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [12.2008 - 03.2012] ACR50,GSR50 |
76801-28400 |
US $177.63 |
||
| replacement | |||||
|
76801
|
76801
76801-28401 Garnish Sub-Assy, Back Door, Outside[12.2008 - 03.2012] ACR50,GSR50 |
76801-28401 |
from US $118.56 |
||
|
76801
|
76801
76801-28401 Garnish Sub-Assy, Back Door, Outside[04.2012 - 05.2016] GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) |
76801-28401 |
from US $118.56 |
||
|
76802C
|
76802C
76802-28010 Garnish Sub-Assy, Back Door, Outside No.2[01.2006 - 12.2008] ACR50,GSR50 |
76802-28010 |
US $157.25 |
||
| replacement | |||||
|
76802C
|
76802C
76802-28070 Garnish Sub-Assy, Back Door, Outside No.2BACK DOOR, OUTSIDE NO.2 [01.2006 - 12.2008] ACR50,GSR50 |
76802-28070 |
from US $96.64 |
||
|
76802C
|
76802C
76802-28070 Garnish Sub-Assy, Back Door, Outside No.2BACK DOOR, OUTSIDE NO.2 [12.2008 - 04.2012] GSR50..LHD;ACR50..GCC,GEN |
76802-28070 |
from US $96.64 |
||
|
76817
|
76817
76817-26040 Clip, Back Door Outside Garnish[01.2006 - 12.2008] ACR50,GSR50 |
76817-26040 |
from US $1.13 |
||
|
76825
|
76825
76825-28080 Protector, Back Door Outside Garnish[01.2006 - 12.2008] ACR50,GSR50 |
76825-28080 |
US $12.90 |
||
|
76839A
|
76839A
76839-28030 Cover, Back Door GarnishBACK DOOR GARNISH [12.2008 - 04.2012] GSR50..LHD;ACR50..GCC,GEN |
76839-28030 |
US $2.62 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.76 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9043005003
|
9043005003
90430-05003 GASKET |
90430-05003 |
from US $0.62 |
||
