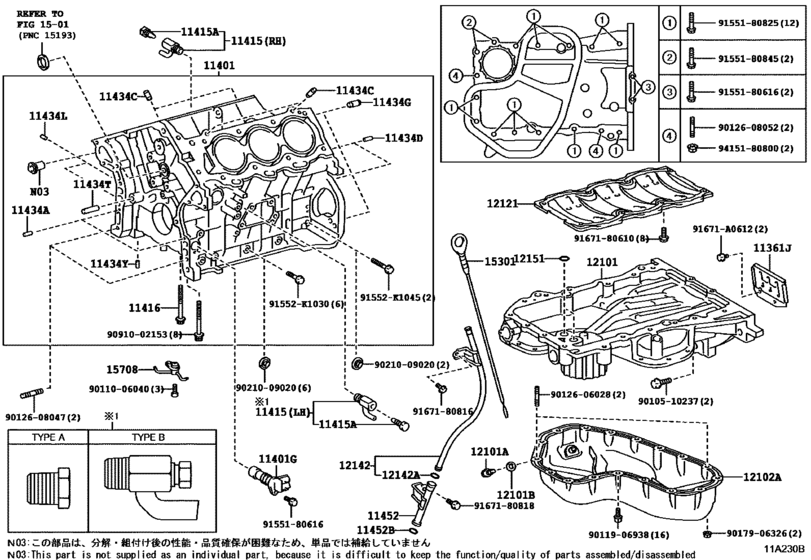

Cylinder Block ([04.2015 - ] (1504- )2GRFE) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-31060 Cover, Flywheel Housing Under[11.2006 - 12.2008] 2GRFE..GSR50 |
11361-31060 |
US $19.22 |
||
|
11401
|
11401
11401-80718 Block Sub-Assy, Cylinder[11.2006 - 04.2008] 2GRFE..GSR50 |
11401-80718 |
US $4,266.08 |
||
| replacements | |||||
|
11401
|
11401
11401-80828
Block Sub-Assy, Cylinder
[11.2006 - 04.2008] 2GRFE..GSR50 |
11401-80828 |
— | ||
|
11401
|
11401
13011-31151 Ring Set, Piston[11.2006 - 04.2008] 2GRFE..GSR50 |
13011-31151 |
from US $216.94 |
||
|
11401
|
11401
13011-31161 Ring Set, Piston[11.2006 - 04.2008] 2GRFE..GSR50 |
13011-31161 |
from US $300.81 |
||
|
11401
|
11401
11401-80774
Block Sub-Assy, Cylinder
[05.2008 - 12.2008] 2GRFE..GSR50 |
11401-80774 |
— | ||
| replacements | |||||
|
11401
|
11401
11401-80828
Block Sub-Assy, Cylinder
[05.2008 - 12.2008] 2GRFE..GSR50 |
11401-80828 |
— | ||
|
11401
|
11401
13011-31151 Ring Set, Piston[05.2008 - 12.2008] 2GRFE..GSR50 |
13011-31151 |
from US $216.94 |
||
|
11401
|
11401
13011-31161 Ring Set, Piston[05.2008 - 12.2008] 2GRFE..GSR50 |
13011-31161 |
from US $300.81 |
||
|
11401
|
11401
11401-80800 Block Sub-Assy, Cylinder[10.2012 - 06.2014] 2GRFE..GSR50 |
11401-80800 |
US $2,955.68 |
||
| replacements | |||||
|
11401
|
11401
11401-80826 Block Sub-Assy, Cylinder[10.2012 - 06.2014] 2GRFE..GSR50 |
11401-80826 |
US $2,664.48 |
||
|
11401
|
11401
13011-31151 Ring Set, Piston[10.2012 - 06.2014] 2GRFE..GSR50 |
13011-31151 |
from US $216.94 |
||
|
11401
|
11401
13011-31161 Ring Set, Piston[10.2012 - 06.2014] 2GRFE..GSR50 |
13011-31161 |
from US $300.81 |
||
|
11401
|
11401
11401-80814
Block Sub-Assy, Cylinder
[07.2014 - 12.2014] 2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN |
11401-80814 |
— | ||
| replacements | |||||
|
11401
|
11401
11401-80826 Block Sub-Assy, Cylinder[07.2014 - 12.2014] 2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN |
11401-80826 |
US $2,664.48 |
||
|
11401
|
11401
13011-31151 Ring Set, Piston[07.2014 - 12.2014] 2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN |
13011-31151 |
from US $216.94 |
||
|
11401
|
11401
13011-31161 Ring Set, Piston[07.2014 - 12.2014] 2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN |
13011-31161 |
from US $300.81 |
||
|
11401
|
11401
11401-80826 Block Sub-Assy, Cylinder[12.2014 - 05.2016] 2GRFE..GSR50 |
11401-80826 |
US $2,664.48 |
||
|
11401G
|
11401G
90919-05057 Sensor, Crank Position[11.2006 - 12.2008] 2GRFE..GSR50 |
90919-05057 |
from US $46.37 |
||
|
11415
|
11415
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.2012 - 05.2016] 2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN LH,TYPE A:REF.ILL. |
90345-52001 |
from US $4.12 |
||
|
11415
|
11415
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.2012 - 05.2016] 2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN RH |
90910-09129 |
from US $6.63 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[12.2008 - 04.2012] 2GRFE..GSR50..LHD |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02154 Bolt(For Crankshaft Bearing Cap Set)[11.2006 - 12.2008] 2GRFE..GSR50 |
90910-02154 |
from US $4.30 |
||
|
11434A
|
11434A
90250-04097 Pin, Straight(For Camshaft Housing Rh)[11.2006 - 12.2008] 2GRFE..GSR50 L=12,OD=4.0 |
90250-04097 |
US $0.90 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[11.2006 - 12.2008] 2GRFE..GSR50 L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11434D
|
11434D
90250-04097 Pin, Straight(For Camshaft Housing Rh)[11.2006 - 12.2008] 2GRFE..GSR50 L=12,OD=4.0 |
90250-04097 |
US $0.90 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[11.2006 - 12.2008] 2GRFE..GSR50 |
90250-10113 |
from US $1.17 |
||
|
11434L
|
11434L
90250-04097 Pin, Straight(For Camshaft Housing Rh)[11.2006 - 12.2008] 2GRFE..GSR50 |
90250-04097 |
US $0.90 |
||
|
11434T
|
11434T
90250-10030 Pin, Straight(For Clutch Housing Set)[11.2006 - 12.2008] 2GRFE..GSR50 |
90250-10030 |
from US $1.31 |
||
|
11434Y
|
11434Y
90250-04097 Pin, Straight(For Camshaft Housing Rh)[11.2006 - 12.2008] 2GRFE..GSR50 |
90250-04097 |
US $0.90 |
||
|
11452
|
11452
11452-31060 Guide, Oil Level Gage[11.2006 - 12.2008] 2GRFE..GSR50 |
11452-31060 |
US $10.63 |
||
|
11452B
|
11452B
90301-12018 Ring, O(For Oil Level Gage Guide)[11.2006 - 12.2008] 2GRFE..GSR50 |
90301-12018 |
from US $2.16 |
||
|
12101
|
12101
12101-31121 Pan Sub-Assy, Oil[11.2006 - 12.2008] 2GRFE..GSR50 |
12101-31121 |
US $318.86 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[11.2006 - 12.2008] 2GRFE..GSR50 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[11.2006 - 12.2008] 2GRFE..GSR50 |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[11.2006 - 12.2008] 2GRFE..GSR50 |
90430-12031 |
from US $0.84 |
||
|
12102A
|
12102A
12102-31050 Pan Sub-Assy, Oil, No.2[11.2006 - 12.2008] 2GRFE..GSR50 |
12102-31050 |
US $110.66 |
||
| replacement | |||||
|
12102A
|
12102A
12102-31051 Pan Sub-Assy, Oil, No.2OIL, NO.2 [11.2006 - 12.2008] 2GRFE..GSR50 |
12102-31051 |
from US $111.52 |
||
|
12102A
|
12102A
12102-31051 Pan Sub-Assy, Oil, No.2OIL, NO.2 [02.2010 - 04.2012] 2GRFE..GSR50..LHD |
12102-31051 |
from US $111.52 |
||
|
12121
|
12121
12121-31070 Plate, Oil Pan Baffle, No.1[11.2006 - 12.2008] 2GRFE..GSR50 |
12121-31070 |
US $55.47 |
||
|
12121
|
12121
12121-31120 Plate, Oil Pan Baffle, No.1[04.2015 - 05.2016] 2GRFE..GSR50 |
12121-31120 |
US $43.39 |
||
|
12142
|
12142
12142-31030 Guide, Oil Level Gage, No.2[11.2006 - 12.2008] 2GRFE..GSR50 |
12142-31030 |
from US $10.47 |
||
|
12142
|
12142
12142-31040 Guide, Oil Level Gage, No.2OIL LEVEL GAGE, NO.2 [12.2008 - 04.2012] 2GRFE..GSR50..LHD |
12142-31040 |
from US $11.95 |
||
|
12142A
|
12142A
96721-19010 Ring, O(For Oil Level Gage Guide)[11.2006 - 12.2008] 2GRFE..GSR50 |
96721-19010 |
from US $1.60 |
||
|
12151
|
12151
12151-31010 Ring, O(For Oil Pan)[11.2006 - 12.2008] 2GRFE..GSR50 |
12151-31010 |
from US $12.68 |
||
|
15301
|
15301
15301-31100 Gage Sub-Assy, Oil Level[11.2006 - 12.2008] 2GRFE..GSR50 |
15301-31100 |
from US $10.20 |
||
|
15301
|
15301
15301-31110 Gage Sub-Assy, Oil LevelOIL LEVEL [12.2008 - 04.2012] 2GRFE..GSR50..LHD |
15301-31110 |
from US $10.05 |
||
|
15708
|
15708
15708-31030 Nozzle Sub-Assy, Oil, No.1[11.2006 - 12.2008] 2GRFE..GSR50 |
15708-31030 |
from US $8.40 |
||
|
15708
|
15708
15708-31050 Nozzle Sub-Assy, Oil, No.1[06.2015 - 05.2016] 2GRFE..GSR50 |
15708-31050 |
from US $8.48 |
||
|
91552K1030
|
91552K1030
91552-K1030 BOLT FLANGE |
91552-K1030 |
US $0.96 |
||
|
91552K1045
|
91552K1045
91552-K1045 New Genuine Part |
91552-K1045 |
US $2.15 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.64 |
||
|
9010510237
|
9010510237
90105-10237 New Genuine Part |
90105-10237 |
US $1.46 |
||
|
9011006040
|
9011006040
90110-06040 BOLT HEXAGON SOCKET |
90110-06040 |
US $1.08 |
||
|
9011906938
|
9011906938
90119-06938 BOLT WWASHER |
90119-06938 |
from US $0.64 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.64 |
||
|
9012608047
|
9012608047
90126-08047 Bolt, Stud(For Egr Valve) |
90126-08047 |
US $1.43 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.78 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.66 |
||
|
9021009020
|
9021009020
90210-09020 WASHER SEAL |
90210-09020 |
US $0.96 |
||
|
9091002153
|
9091002153
90910-02153 Bolt(For Crankshaft Bearing Cap Set) |
90910-02153 |
US $4.30 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.80 |
||
|
9155180845
|
9155180845
91551-80845 BOLT FLANGE |
91551-80845 |
from US $1.19 |
||
|
9167180610
|
9167180610
91671-80610 New Genuine Part |
91671-80610 |
US $1.08 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.78 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.86 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
