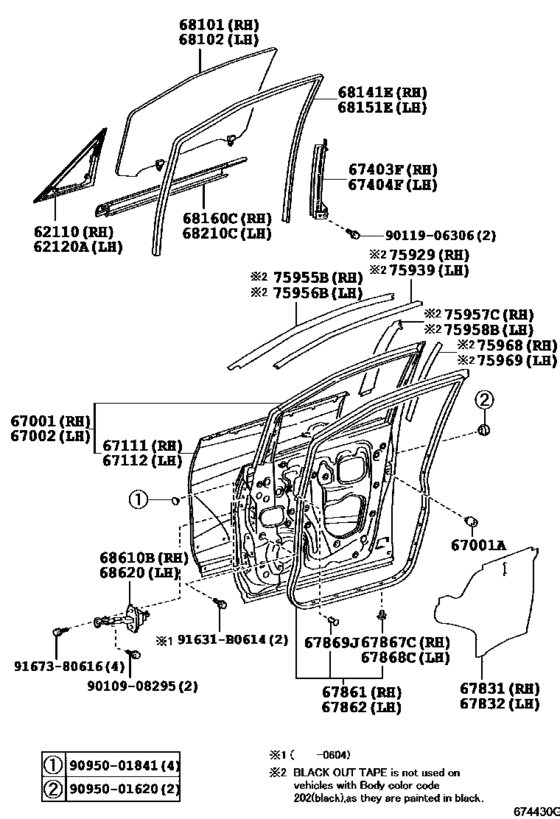

Front Door Panel & Glass ([01.2006 - ] DOOR PANEL (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62110
|
62110
62110-28050
Window Assy, Front Side Fix, Rh
[01.2006 - 10.2007] ACR50,GSR50 |
62110-28050 |
— | ||
| replacement | |||||
|
62110
|
62110
62110-28052
Window Assy, Front Side Fix, Rh
[01.2006 - 10.2007] ACR50,GSR50 |
62110-28052 |
— | ||
|
62110
|
62110
62110-28051
Window Assy, Front Side Fix, Rh
[11.2007 - 10.2008] ACR50,GSR50 |
62110-28051 |
— | ||
| replacement | |||||
|
62110
|
62110
62110-28052
Window Assy, Front Side Fix, Rh
[11.2007 - 10.2008] ACR50,GSR50 |
62110-28052 |
— | ||
|
62110
|
62110
62110-28052
Window Assy, Front Side Fix, Rh
[11.2008 - 12.2008] ACR50,GSR50 |
62110-28052 |
— | ||
|
62120A
|
62120A
62120-28180
Window Assy, Front Side Fix, Lh
[01.2006 - 10.2007] ACR50,GSR50 |
62120-28180 |
— | ||
| replacement | |||||
|
62120A
|
62120A
62120-28182 Window Assy, Front Side Fix, LhFRONT SIDE FIX, LH [01.2006 - 10.2007] ACR50,GSR50 |
62120-28182 |
US $60.72 |
||
|
62120A
|
62120A
62120-28181
Window Assy, Front Side Fix, Lh
[11.2007 - 10.2008] ACR50,GSR50 |
62120-28181 |
— | ||
| replacement | |||||
|
62120A
|
62120A
62120-28182 Window Assy, Front Side Fix, LhFRONT SIDE FIX, LH [11.2007 - 10.2008] ACR50,GSR50 |
62120-28182 |
US $60.72 |
||
|
62120A
|
62120A
62120-28182 Window Assy, Front Side Fix, LhFRONT SIDE FIX, LH [11.2008 - 12.2008] ACR50,GSR50 |
62120-28182 |
US $60.72 |
||
|
67001
|
67001
67001-28200 Panel Sub-Assy, Front Door, Rh[01.2006 - 12.2008] ACR50,GSR50 |
67001-28200 |
from US $841.68 |
||
|
67001A
|
67001A
90541-09069 Cushion, Hood Bumper[01.2006 - 12.2008] ACR50,GSR50 |
90541-09069 |
from US $2.22 |
||
|
67002
|
67002
67002-28210 Panel Sub-Assy, Front Door, Lh[01.2006 - 12.2008] ACR50,GSR50 |
67002-28210 |
from US $833.06 |
||
|
67111
|
67111
67111-28090 Panel, Front Door, Outer RhFRONT DOOR, OUTER RH [01.2006 - 12.2008] ACR50,GSR50 |
67111-28090 |
US $244.61 |
||
|
67112
|
67112
67112-28100
Panel, Front Door, Outer Lh
[01.2006 - 12.2008] ACR50,GSR50 |
67112-28100 |
— | ||
|
67403F
|
67403F
67403-28090 Frame Sub-Assy, Front Door, Rear Lower Rh[01.2006 - 12.2008] ACR50,GSR50 |
67403-28090 |
US $18.78 |
||
|
67404F
|
67404F
67404-28090 Frame Sub-Assy, Front Door, Rear Lower Lh[01.2006 - 12.2008] ACR50,GSR50 |
67404-28090 |
US $18.78 |
||
|
67831
|
67831
67831-28160 Cover, Front Door Service Hole, Rh[01.2006 - 12.2008] ACR50,GSR50 |
67831-28160 |
US $10.34 |
||
| replacements | |||||
|
67831
|
67831
67831-28161 Cover, Front Door Service Hole, Rh[01.2006 - 12.2008] ACR50,GSR50 |
67831-28161 |
US $13.80 |
||
|
67831
|
67831
67832-28130 Cover, Front Door Service Hole, Lh[01.2006 - 12.2008] ACR50,GSR50 |
67832-28130 |
US $13.80 |
||
|
67831
|
67831
67831-28161 Cover, Front Door Service Hole, Rh[10.2010 - 04.2012] GSR50..LHD;ACR50..GCC,GEN |
67831-28161 |
US $13.80 |
||
|
67832
|
67832
67831-28160 Cover, Front Door Service Hole, Rh[01.2006 - 12.2008] ACR50,GSR50 |
67831-28160 |
US $10.34 |
||
| replacements | |||||
|
67832
|
67832
67831-28161 Cover, Front Door Service Hole, Rh[01.2006 - 12.2008] ACR50,GSR50 |
67831-28161 |
US $13.80 |
||
|
67832
|
67832
67832-28130 Cover, Front Door Service Hole, Lh[01.2006 - 12.2008] ACR50,GSR50 |
67832-28130 |
US $13.80 |
||
|
67832
|
67832
67832-28130 Cover, Front Door Service Hole, Lh[10.2010 - 04.2012] GSR50..LHD;ACR50..GCC,GEN |
67832-28130 |
US $13.80 |
||
|
67861
|
67861
67861-28080
Weatherstrip, Front Door, Rh
[01.2006 - 12.2008] ACR50,GSR50 |
67861-28080 |
— | ||
| replacement | |||||
|
67861
|
67861
67861-28082 Weatherstrip, Front Door, Rh[01.2006 - 12.2008] ACR50,GSR50 |
67861-28082 |
US $116.44 |
||
|
67861
|
67861
67861-28081 Weatherstrip, Front Door, Rh[06.2012 - 02.2013] ACR50,GSR50 |
67861-28081 |
US $94.64 |
||
| replacement | |||||
|
67861
|
67861
67861-28082 Weatherstrip, Front Door, Rh[06.2012 - 02.2013] ACR50,GSR50 |
67861-28082 |
US $116.44 |
||
|
67861
|
67861
67861-28082 Weatherstrip, Front Door, Rh[03.2013 - 05.2016] ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN |
67861-28082 |
US $116.44 |
||
|
67862
|
67862
67862-28080 Weatherstrip, Front Door, Lh[01.2006 - 12.2008] ACR50,GSR50 |
67862-28080 |
US $94.64 |
||
| replacement | |||||
|
67862
|
67862
67862-28082 Weatherstrip, Front Door, Lh[01.2006 - 12.2008] ACR50,GSR50 |
67862-28082 |
from US $97.10 |
||
|
67862
|
67862
67862-28081 Weatherstrip, Front Door, Lh[06.2012 - 02.2013] ACR50,GSR50 |
67862-28081 |
US $94.64 |
||
| replacement | |||||
|
67862
|
67862
67862-28082 Weatherstrip, Front Door, Lh[06.2012 - 02.2013] ACR50,GSR50 |
67862-28082 |
from US $97.10 |
||
|
67862
|
67862
67862-28082 Weatherstrip, Front Door, Lh[03.2013 - 05.2016] ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN |
67862-28082 |
from US $97.10 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[01.2006 - 12.2008] ACR50,GSR50 |
67867-12150 |
from US $1.79 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[01.2006 - 12.2008] ACR50,GSR50 |
67867-12150 |
from US $1.79 |
||
|
67869J
|
67869J
67869-20030 Clip, Door Weatherstrip(For Front Door)[01.2006 - 12.2008] ACR50,GSR50 |
67869-20030 |
from US $1.29 |
||
|
68101
|
68101
68101-28240 Glass Sub-Assy, Front Door, Rh[01.2006 - 12.2008] ACR50,GSR50 |
68101-28240 |
US $546 |
||
| replacement | |||||
|
68101
|
68101
68101-28242
Glass Sub-Assy, Front Door, Rh
[01.2006 - 12.2008] ACR50,GSR50 |
68101-28242 |
— | ||
|
68101
|
68101
68101-28241
Glass Sub-Assy, Front Door, Rh
[12.2008 - 09.2011] ACR50,GSR50 |
68101-28241 |
— | ||
| replacement | |||||
|
68101
|
68101
68101-28242
Glass Sub-Assy, Front Door, Rh
[12.2008 - 09.2011] ACR50,GSR50 |
68101-28242 |
— | ||
|
68101
|
68101
68101-28242
Glass Sub-Assy, Front Door, Rh
[10.2011 - 04.2012] GSR50..LHD;ACR50..GCC,GEN |
68101-28242 |
— | ||
|
68102
|
68102
68102-28240
Glass Sub-Assy, Front Door, Lh
[01.2006 - 12.2008] ACR50,GSR50 |
68102-28240 |
— | ||
| replacement | |||||
|
68102
|
68102
68102-28242
Glass Sub-Assy, Front Door, Lh
[01.2006 - 12.2008] ACR50,GSR50 |
68102-28242 |
— | ||
|
68102
|
68102
68102-28241
Glass Sub-Assy, Front Door, Lh
[12.2008 - 09.2011] ACR50,GSR50 |
68102-28241 |
— | ||
| replacement | |||||
|
68102
|
68102
68102-28242
Glass Sub-Assy, Front Door, Lh
[12.2008 - 09.2011] ACR50,GSR50 |
68102-28242 |
— | ||
|
68102
|
68102
68102-28242
Glass Sub-Assy, Front Door, Lh
[10.2011 - 04.2012] GSR50..LHD;ACR50..GCC,GEN |
68102-28242 |
— | ||
|
68141E
|
68141E
68141-28120 Run, Front Door Glass, Rh[01.2006 - 12.2008] ACR50,GSR50 |
68141-28120 |
US $71.23 |
||
|
68141E
|
68141E
68141-28180 Run, Front Door Glass, Rh[12.2013 - 05.2016] ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN PNC 85710D=TYPE B |
68141-28180 |
US $43.16 |
||
|
68151E
|
68151E
68151-28090 Run, Front Door Glass, Lh[01.2006 - 12.2008] ACR50,GSR50 |
68151-28090 |
US $71.23 |
||
|
68151E
|
68151E
68151-28150 Run, Front Door Glass, Lh[12.2013 - 05.2016] ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN PNC 85720C=TYPE B |
68151-28150 |
US $36.55 |
||
|
68160C
|
68160C
68161-28060 Weatherstrip Assy, Front Door Glass, Outer Rh[01.2006 - 12.2008] ACR50,GSR50 |
68161-28060 |
from US $27.09 |
||
|
68210C
|
68210C
68162-28060 Weatherstrip Assy, Front Door Glass, Outer Lh[01.2006 - 12.2008] ACR50,GSR50 |
68162-28060 |
from US $26.73 |
||
|
68610B
|
68610B
68610-28060 Check Assy, Front Door[01.2006 - 12.2008] ACR50,GSR50 |
68610-28060 |
from US $51.74 |
||
|
68620
|
68620
68610-28060 Check Assy, Front Door[01.2006 - 12.2008] ACR50,GSR50 |
68610-28060 |
from US $51.74 |
||
|
75929
|
75929
75929-28020 Tape, Black Out Front Door, Inner Upper Rh[01.2006 - 12.2008] ACR50,GSR50 |
75929-28020 |
from US $14.24 |
||
|
75939
|
75939
75939-28020 Tape, Black Out Front Door, Inner Upper Lh[01.2006 - 12.2008] ACR50,GSR50 |
75939-28020 |
US $19.99 |
||
|
75955B
|
75955B
75955-28030 Tape, Black Out Front Door, Outer Upper Rh[01.2006 - 12.2008] ACR50,GSR50 |
75955-28030 |
from US $17.82 |
||
|
75956B
|
75956B
75956-28030 Tape, Black Out Front Door, Outer Upper Lh[01.2006 - 12.2008] ACR50,GSR50 |
75956-28030 |
from US $18.43 |
||
|
75957C
|
75957C
75957-28030 Tape, Black Out Front Door, Outer Rear Rh[01.2006 - 12.2008] ACR50,GSR50 |
75957-28030 |
from US $20.30 |
||
|
75958B
|
75958B
75958-28030 Tape, Black Out Front Door, Outer Rear Lh[01.2006 - 12.2008] ACR50,GSR50 |
75958-28030 |
US $29.74 |
||
|
75968
|
75968
75968-28020 Tape, Black Out Front Door, Inner Rear Rh[01.2006 - 12.2008] ACR50,GSR50 |
75968-28020 |
from US $9.01 |
||
|
75969
|
75969
75969-28020 Tape, Black Out Front Door, Inner Rear Lh[01.2006 - 12.2008] ACR50,GSR50 |
75969-28020 |
from US $9.28 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.78 |
||
|
9011906306
|
9011906306
90119-06306 Bolt, Back Window Stay |
90119-06306 |
US $2.15 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.97 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.97 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
