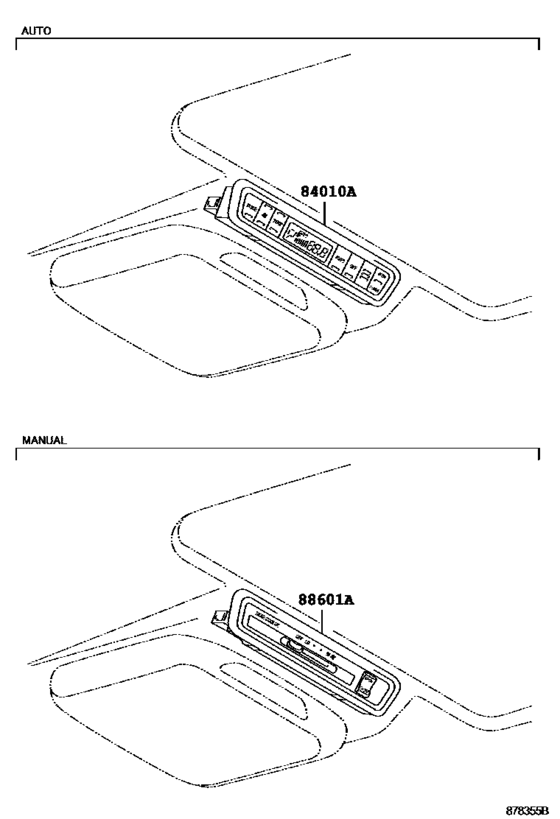

Heating & Air Conditioning - Control & Air Duct ([01.2006 - ] REAR HEATER CONTROL (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88601A
|
88601A
88610-28560-A0
Switch Sub-Assy, Cooler Control
[04.2012 - 05.2016] ACR50..LHD;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC);ACR50..RHD..4FC..GEN MOON ROOF-WITH,SHELL,TRIM0# |
88610-28560-A0 |
— | ||
|
88601A
|
88601A
88610-28560-E0
Switch Sub-Assy, Cooler Control
[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN WITHOUT(COLD AREA SPEC)&MOON ROOF-WITH,GREGE,TRIM4#; GSR50..RHD..GL;ACR50..RHD..GEN;ACR50,GSR50..GCC MOON ROOF-WITH,GREGE,TRIM4# |
88610-28560-E0 |
— | ||
|
88601A
|
88601A
88610-28570-A0
Switch Sub-Assy, Cooler Control
[04.2012 - 05.2016] ACR50..LHD;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC);ACR50..RHD..4FC..GEN SHELL,TRIM0#; ACR50..LHD..CVT;GSR50..LHD..GEN CHINA SPEC&COLD AREA SPEC,SHELL,TRIM0#; ACR50..LHD..CVT;GSR50..LHD..GEN BEIJING SPEC&COLD AREA SPEC,SHELL,TRIM0#; GSR50. |
88610-28570-A0 |
— | ||
|
88601A
|
88601A
88610-28570-E0
Switch Sub-Assy, Cooler Control
[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN GREGE,TRIM4#; ACR50,GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L),GREGE,TRIM4#; GSR50..RHD..GL;ACR50..RHD..GEN COLD SPEC(BATTERY SIZE:80D26L)&MOON ROOF-WITH,GREGE,TRIM4#; ACR50,GSR50.. |
88610-28570-E0 |
— |
