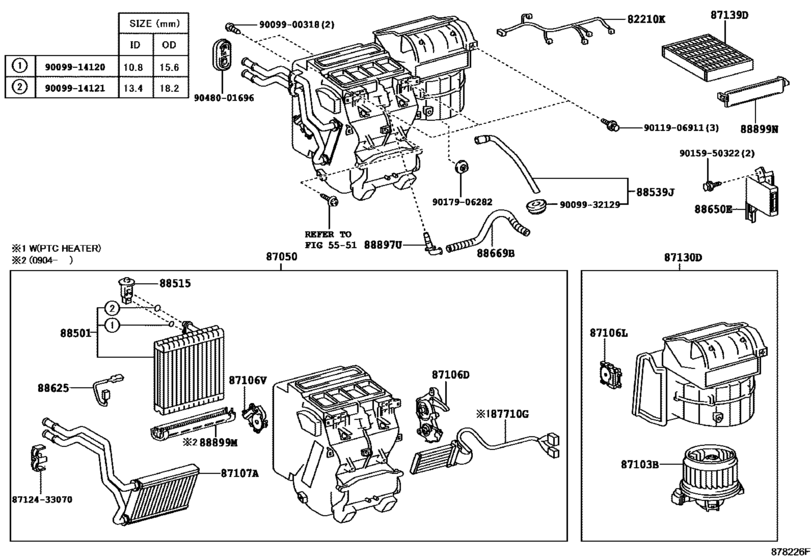

Heating & Air Conditioning - Cooler Unit ([01.2006 - ] FRONT (0601- )LHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-28040
Harness Assy, Air Conditioner
[02.2007 - 12.2008] ACR50,GSR50..LHD |
82212-28040 |
— | ||
|
82210K
|
82210K
82212-33020
Harness Assy, Air Conditioner
[01.2006 - 02.2007] ACR50,GSR50..LHD |
82212-33020 |
— | ||
| replacement | |||||
|
82210K
|
82210K
82212-28040
Harness Assy, Air Conditioner
[01.2006 - 02.2007] ACR50,GSR50..LHD |
82212-28040 |
— | ||
|
87050
|
87050
87050-28640
Radiator Assy, Air Conditioner
[01.2006 - 01.2007] GSR50..GCC; GSR50..LHD..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); GSR50..LHD..GEN JORDAN SPEC&WITHOUT(COLD AREA SPEC) |
87050-28640 |
— | ||
| replacement | |||||
|
87050
|
87050
87050-28642
Radiator Assy, Air Conditioner
[01.2006 - 01.2007] GSR50..GCC; GSR50..LHD..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); GSR50..LHD..GEN JORDAN SPEC&WITHOUT(COLD AREA SPEC) |
87050-28642 |
— | ||
|
87050
|
87050
87050-28641
Radiator Assy, Air Conditioner
[02.2007 - 08.2007] ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); ACR50..LHD..GL..GEN EXCEPT CHINA SPEC&WITHOUT(COLD AREA SPEC); ACR50..LHD..GL..GEN PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC); ACR50,GS |
87050-28641 |
— | ||
| replacement | |||||
|
87050
|
87050
87050-28642
Radiator Assy, Air Conditioner
[02.2007 - 08.2007] ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); ACR50..LHD..GL..GEN EXCEPT CHINA SPEC&WITHOUT(COLD AREA SPEC); ACR50..LHD..GL..GEN PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC); ACR50,GS |
87050-28642 |
— | ||
|
87050
|
87050
87050-28642
Radiator Assy, Air Conditioner
[09.2007 - 12.2008] ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); ACR50..LHD..GL..GEN EXCEPT CHINA SPEC&WITHOUT(COLD AREA SPEC); ACR50..LHD..GL..GEN PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC); ACR50,GS |
87050-28642 |
— | ||
|
87050
|
87050
87050-28750
Radiator Assy, Air Conditioner
[04.2012 - 05.2016] ACR50,GSR50..LHD |
87050-28750 |
— | ||
|
87103B
|
87103B
87103-33090 Motor Sub-Assy, Blower W/fanBLOWER W/FAN [01.2006 - 12.2008] ACR50,GSR50..LHD |
87103-33090 |
US $256.48 |
||
|
87106D
|
87106D
87106-28190
Servo Sub-Assy, Damper, No.1
[01.2006 - 01.2007] ACR50,GSR50 |
87106-28190 |
— | ||
| replacement | |||||
|
87106D
|
87106D
87106-28191 Servo Sub-Assy, Damper, No.1[01.2006 - 01.2007] ACR50,GSR50 |
87106-28191 |
US $205.67 |
||
|
87106D
|
87106D
87106-28191 Servo Sub-Assy, Damper, No.1[02.2007 - 12.2008] ACR50,GSR50 |
87106-28191 |
US $205.67 |
||
|
87106L
|
87106L
87106-33270 Servo Sub-Assy, DamperDAMPER(FOR RECIRCULATION) [01.2006 - 12.2008] ACR50,GSR50..LHD |
87106-33270 |
US $111.13 |
||
|
87106V
|
87106V
87106-33260 Damper Servo Sub-Assy, Air Conditioner Radiator, No.2[01.2006 - 01.2007] ACR50,GSR50 |
87106-33260 |
US $112.67 |
||
|
87107A
|
87107A
87107-33120 Unit Sub-Assy, Heater Radiator[01.2006 - 01.2007] ACR50,GSR50 |
87107-33120 |
US $395.34 |
||
|
87130D
|
87130D
87130-28580
Blower Assy
[12.2011 - 04.2012] ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); ACR50..LHD..GL..GEN WITHOUT(DESTINATION PACKAGE)&WITHOUT(COLD AREA SPEC); ACR50..LHD..GL..GEN PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC |
87130-28580 |
— | ||
|
87130D
|
87130D
87130-33200
Blower Assy
[01.2006 - 01.2007] GSR50..GCC; GSR50..LHD..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); GSR50..LHD..GEN JORDAN SPEC&WITHOUT(COLD AREA SPEC) |
87130-33200 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-28580
Blower Assy
[01.2006 - 01.2007] GSR50..GCC; GSR50..LHD..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); GSR50..LHD..GEN JORDAN SPEC&WITHOUT(COLD AREA SPEC) |
87130-28580 |
— | ||
|
87139D
|
87139D
87139-30040 Filter, Clean Air[01.2006 - 12.2008] ACR50,GSR50 MICRO DUST FILTER |
87139-30040 |
from US $33.60 |
||
| replacement | |||||
|
87139D
|
87139D
87139-YZZ45 Filter, Clean Air[01.2006 - 12.2008] ACR50,GSR50 MICRO DUST FILTER |
87139-YZZ45 |
US $121.58 |
||
|
87139D
|
87139D
87139-50100 Clean Air Filter (Charcoal type)[04.2013 - 05.2016] ACR50,GSR50 *DPF |
87139-50100 |
from US $67.20 |
||
|
88501
|
88501
88501-28400
Evaporator Sub-Assy, Cooler, No.1
[09.2007 - 12.2008] ACR50,GSR50 |
88501-28400 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-48311 Evaporator Sub-Assy, Cooler, No.1[09.2007 - 12.2008] ACR50,GSR50 |
88501-48311 |
from US $354.68 |
||
|
88501
|
88501
88501-33190
Evaporator Sub-Assy, Cooler, No.1
[11.2006 - 08.2007] ACR50,GSR50..LHD |
88501-33190 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-48311 Evaporator Sub-Assy, Cooler, No.1[11.2006 - 08.2007] ACR50,GSR50..LHD |
88501-48311 |
from US $354.68 |
||
|
88501
|
88501
88501-48310
Evaporator Sub-Assy, Cooler, No.1
[04.2009 - 07.2010] ACR50,GSR50 |
88501-48310 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-48311 Evaporator Sub-Assy, Cooler, No.1[04.2009 - 07.2010] ACR50,GSR50 |
88501-48311 |
from US $354.68 |
||
|
88501
|
88501
88501-48311 Evaporator Sub-Assy, Cooler, No.1[07.2010 - 05.2012] GSR50;ACR50..RHD;ACR50..LHD..4FC |
88501-48311 |
from US $354.68 |
||
|
88515
|
88515
88515-28240 Valve, Cooler Expansion[04.2012 - 05.2016] ACR50..CVT;GSR50..LHD..GEN;GSR50..GL..(ARL,GCC);ACR50..4FC..(GCC,GEN) |
88515-28240 |
from US $84.45 |
||
|
88515
|
88515
88515-33020 Valve, Cooler Expansion[01.2006 - 12.2008] ACR50,GSR50 |
88515-33020 |
from US $103.60 |
||
|
88539J
|
88539J
88539-28290
Hose, Drain Cooler
[01.2006 - 12.2008] ACR50,GSR50..LHD |
88539-28290 |
— | ||
|
88625
|
88625
88625-33190 Thermistor, Cooler, No.1[01.2006 - 12.2008] ACR50,GSR50 |
88625-33190 |
US $10.35 |
||
|
88650E
|
88650E
88650-28A80
Amplifier Assy, Air Conditioner, No.1
[11.2006 - 12.2008] GSR50..RHD;GSR50..GCC; GSR50..LHD..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); GSR50..LHD..GEN JORDAN SPEC&WITHOUT(COLD AREA SPEC) |
88650-28A80 |
— | ||
| replacement | |||||
|
88650E
|
88650E
88650-28A82 Amplifier Assy, Air Conditioner, No.1AIR CONDITIONER, NO.1 [11.2006 - 12.2008] GSR50..RHD;GSR50..GCC; GSR50..LHD..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); GSR50..LHD..GEN JORDAN SPEC&WITHOUT(COLD AREA SPEC) |
88650-28A82 |
US $491.73 |
||
|
88650E
|
88650E
88650-28A81
Amplifier Assy, Air Conditioner, No.1
[04.2009 - 10.2009] GSR50..RHD;GSR50..GCC; GSR50..LHD..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); GSR50..LHD..GEN JORDAN SPEC&WITHOUT(COLD AREA SPEC) |
88650-28A81 |
— | ||
| replacement | |||||
|
88650E
|
88650E
88650-28A82 Amplifier Assy, Air Conditioner, No.1AIR CONDITIONER, NO.1 [04.2009 - 10.2009] GSR50..RHD;GSR50..GCC; GSR50..LHD..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC); GSR50..LHD..GEN JORDAN SPEC&WITHOUT(COLD AREA SPEC) |
88650-28A82 |
US $491.73 |
||
|
88650E
|
88650E
88650-28A82 Amplifier Assy, Air Conditioner, No.1AIR CONDITIONER, NO.1 [11.2009 - 04.2012] GSR50..GCC; GSR50..LHD..GEN TAIWAN SPEC&WITHOUT(COLD AREA SPEC) |
88650-28A82 |
US $491.73 |
||
|
88650E
|
88650E
88650-28B50
Amplifier Assy, Air Conditioner, No.1
[04.2012 - 03.2013] GSR50..ARL,GCC;GSR50..LHD..GEN |
88650-28B50 |
— | ||
| replacement | |||||
|
88650E
|
88650E
88650-28B53
Amplifier Assy, Air Conditioner, No.1
[04.2012 - 03.2013] GSR50..ARL,GCC;GSR50..LHD..GEN |
88650-28B53 |
— | ||
|
88650E
|
88650E
88650-28B51
Amplifier Assy, Air Conditioner, No.1
[04.2013 - 08.2013] GSR50..ARL,GCC;GSR50..LHD..GEN |
88650-28B51 |
— | ||
| replacement | |||||
|
88650E
|
88650E
88650-28B53
Amplifier Assy, Air Conditioner, No.1
[04.2013 - 08.2013] GSR50..ARL,GCC;GSR50..LHD..GEN |
88650-28B53 |
— | ||
|
88650E
|
88650E
88650-28B53
Amplifier Assy, Air Conditioner, No.1
[08.2013 - 09.2014] GSR50..ARL,GCC;GSR50..LHD..GEN |
88650-28B53 |
— | ||
|
88650E
|
88650E
88650-28B54
Amplifier Assy, Air Conditioner, No.1
[09.2014 - 05.2016] GSR50..GL |
88650-28B54 |
— | ||
|
88669B
|
88669B
88669-33090
Hose (For Cooler Thermistor)
[01.2006 - 12.2008] ACR50,GSR50 |
88669-33090 |
— | ||
|
88897U
|
88897U
88897-33030
Aspirator
[01.2006 - 12.2008] ACR50,GSR50 |
88897-33030 |
— | ||
|
88899M
|
88899M
88899-33050 Parts, Cooling UnitCOVER(FOR AIR FILTER) [04.2009 - 04.2012] GSR50..LHD;ACR50..GCC,GEN |
88899-33050 |
US $11.39 |
||
|
88899N
|
88899N
88899-33040 Plate, Cover(For Air Filter)[01.2006 - 12.2008] ACR50,GSR50 |
88899-33040 |
from US $1.22 |
||
|
8712433070
|
8712433070
87124-33070 Clamp, Heater |
87124-33070 |
from US $1.12 |
||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9009932129
|
9009932129
90099-32129
Grommet (For Cooler Unit Drain Hose)
|
90099-32129 |
— | ||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
from US $0.92 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048001696
|
9048001696
90480-01696
Grommet, Heater
|
90480-01696 |
— | ||
