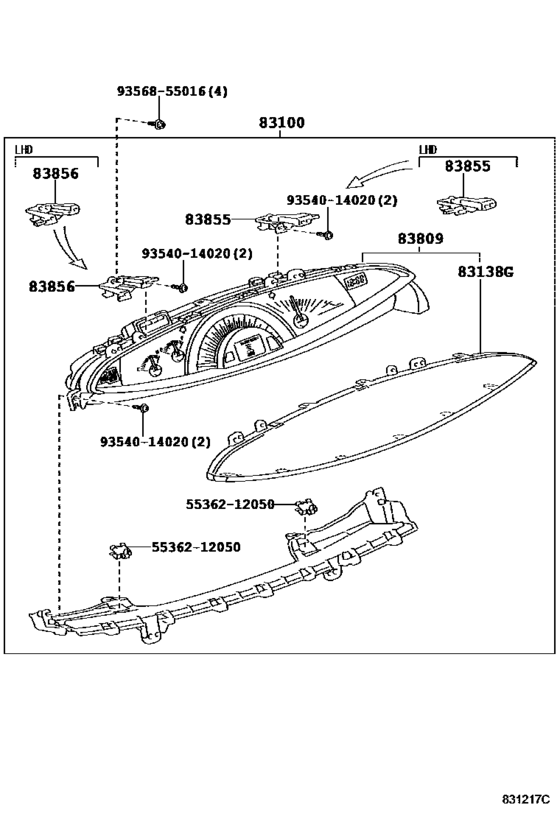

Meter ([01.2006 - ] (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-28C80-E0
Meter Assy, Combination
[01.2006 - 06.2007] ACR50,GSR50..GCC ASH BROWN,TRIM4# |
83800-28C80-E0 |
— | ||
| replacement | |||||
|
83100
|
83100
83800-28G30-E0
Meter Assy, Combination
[01.2006 - 06.2007] ACR50,GSR50..GCC ASH BROWN,TRIM4# |
83800-28G30-E0 |
— | ||
|
83100
|
83100
83800-28G30-E0
Meter Assy, Combination
[06.2007 - 12.2008] ACR50,GSR50..GCC ASH BROWN,TRIM4# |
83800-28G30-E0 |
— | ||
|
83100
|
83100
83800-28G31-E0
Meter Assy, Combination
[12.2008 - 08.2009] ACR50,GSR50..GCC ASH BROWN,TRIM4# |
83800-28G31-E0 |
— | ||
|
83100
|
83100
83800-28K50
Meter Assy, Combination
[09.2009 - 05.2010] ACR50,GSR50..GCC |
83800-28K50 |
— | ||
| replacement | |||||
|
83100
|
83100
83800-28K51
Meter Assy, Combination
[09.2009 - 05.2010] ACR50,GSR50..GCC |
83800-28K51 |
— | ||
|
83100
|
83100
83800-28K51
Meter Assy, Combination
[06.2010 - 04.2012] ACR50,GSR50..GCC |
83800-28K51 |
— | ||
|
83100
|
83100
83800-28K52
Meter Assy, Combination
[04.2013 - 05.2016] ACR50,GSR50..GCC |
83800-28K52 |
— | ||
|
83138G
|
83138G
83852-28C60
Glass, Combination Meter
[01.2006 - 05.2007] ACR50,GSR50..LHD |
83852-28C60 |
— | ||
| replacement | |||||
|
83138G
|
83138G
83852-28G21
Glass, Combination Meter
[01.2006 - 05.2007] ACR50,GSR50..LHD |
83852-28G21 |
— | ||
|
83138G
|
83138G
83852-28G21
Glass, Combination Meter
[09.2009 - 04.2012] ACR50,GSR50..LHD |
83852-28G21 |
— | ||
|
83809
|
83809
83809-28140
Meter Sub-Assy, Combination
[01.2006 - 06.2007] ACR50,GSR50..GCC |
83809-28140 |
— | ||
|
83809
|
83809
83809-28330
Meter Sub-Assy, Combination
[06.2007 - 12.2008] ACR50,GSR50..GCC |
83809-28330 |
— | ||
|
83809
|
83809
83809-28331
Meter Sub-Assy, Combination
[12.2008 - 05.2010] ACR50,GSR50..GCC |
83809-28331 |
— | ||
| replacement | |||||
|
83809
|
83809
83809-28332
Meter Sub-Assy, Combination
[12.2008 - 05.2010] ACR50,GSR50..GCC |
83809-28332 |
— | ||
|
83809
|
83809
83809-28332
Meter Sub-Assy, Combination
[06.2010 - 04.2012] ACR50,GSR50..GCC |
83809-28332 |
— | ||
|
83809
|
83809
83809-28333
Meter Sub-Assy, Combination
[04.2013 - 05.2016] ACR50,GSR50..GCC |
83809-28333 |
— | ||
|
83855
|
83855
83855-28C60
Bracket, Combination Meter, No.1
[01.2006 - 12.2008] ACR50,GSR50..LHD |
83855-28C60 |
— | ||
|
83856
|
83856
83856-28C60
Bracket, Combination Meter, No.2
[01.2006 - 12.2008] ACR50,GSR50..LHD |
83856-28C60 |
— | ||
|
5536212050
|
5536212050
55362-12050 Bracket, Meter Mounting |
55362-12050 |
US $1.46 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $2.15 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
