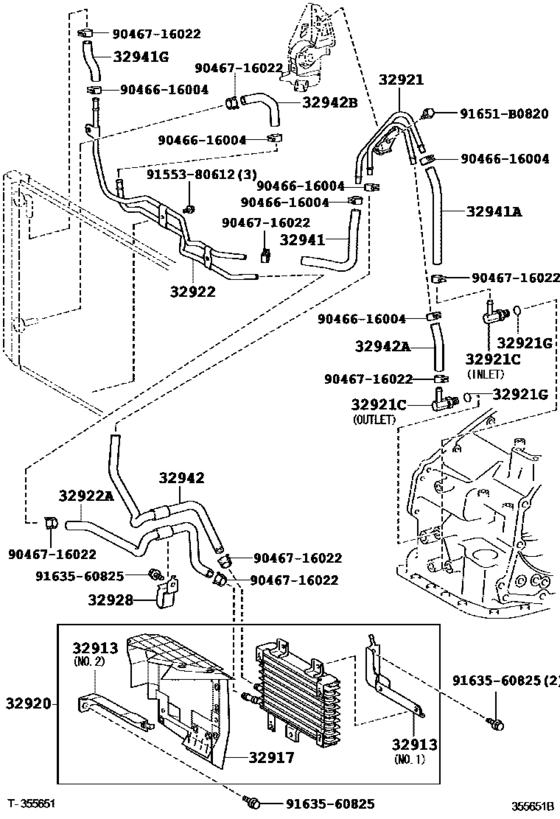

Oil Cooler & Tube (Atm) ([01.2006 - 12.2008] U660E,AIR COOLING OIL COOLER (0601-0812)GSR50..ARL,GCC) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32913
|
32913
32913-28040
Bracket, Oil Cooler
[11.2006 - 12.2008] GSR50..GCC NO.1 |
32913-28040 |
— | ||
|
32913
|
32913
32913-28050
Bracket, Oil Cooler
[11.2006 - 12.2008] GSR50..GCC NO.2 |
32913-28050 |
— | ||
|
32917
|
32917
32917-28010
Duct, Transmission Oil Cooler Air
[11.2006 - 12.2008] GSR50..GCC |
32917-28010 |
— | ||
|
32917
|
32917
32917-28020
Duct, Transmission Oil Cooler Air
[12.2008 - 04.2012] GSR50..GCC |
32917-28020 |
— | ||
|
32920
|
32920
32920-28040
Cooler Assy, Oil W/hose
[11.2006 - 12.2008] GSR50..GCC |
32920-28040 |
— | ||
| replacements | |||||
|
32920
|
32920
32917-28030
Duct, Transmission Oil Cooler Air
[11.2006 - 12.2008] GSR50..GCC |
32917-28030 |
— | ||
|
32920
|
32920
32920-28050 Cooler Assy, Oil W/hoseOIL W/HOSE [11.2006 - 12.2008] GSR50..GCC |
32920-28050 |
US $297.61 |
||
|
32920
|
32920
51467-12020
Retainer, Engine Under Cover
[11.2006 - 12.2008] GSR50..GCC |
51467-12020 |
— | ||
|
32920
|
32920
32920-28050 Cooler Assy, Oil W/hoseOIL W/HOSE [12.2008 - 04.2012] GSR50..GCC |
32920-28050 |
US $297.61 |
||
|
32921
|
32921
32907-28030 Tube, Oil Cooler Inlet, No.1[11.2006 - 12.2008] GSR50 |
32907-28030 |
US $17.47 |
||
|
32921C
|
32921C
90407-14032 Elbow, Transaxle Case[11.2006 - 12.2008] GSR50 |
90407-14032 |
from US $4.80 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[11.2006 - 12.2008] GSR50 |
90301-11006 |
from US $2.50 |
||
|
32921G
|
32921G
90301-11031 Ring, O(For Oil Cooler Tube Union)[08.2011 - 04.2012] GSR50..LHD |
90301-11031 |
US $3.58 |
||
|
32922
|
32922
32907-28050 Tube Sub-Assy, Oil Cooler W/o Hose, No.1[01.2006 - 12.2008] ACR50,GSR50 |
32907-28050 |
from US $23.40 |
||
|
32922A
|
32922A
32942-28300
Hose(For Oil Cooler Outlet)
[11.2006 - 12.2008] GSR50..GCC |
32942-28300 |
— | ||
|
32928
|
32928
32928-28060 Clamp, Flexible Hose, No.1FLEXIBLE HOSE, NO.1 [11.2006 - 12.2008] GSR50..GCC |
32928-28060 |
US $7.10 |
||
|
32941
|
32941
32941-28260 Hose, Oil Cooler Inlet, No.1[11.2006 - 12.2008] GSR50 |
32941-28260 |
from US $24.17 |
||
|
32941
|
32941
32941-28290
Hose, Oil Cooler Inlet, No.1
[12.2008 - 04.2012] GSR50..GCC |
32941-28290 |
— | ||
|
32941A
|
32941A
90445-17100 Hose, Oil Cooler Tube[11.2006 - 12.2008] GSR50 |
90445-17100 |
from US $10.88 |
||
|
32941G
|
32941G
90445-17179 Hose, Oil Cooler Inlet, No.3[01.2006 - 12.2008] ACR50,GSR50 |
90445-17179 |
from US $5.52 |
||
|
32942
|
32942
32942-28310
Hose, Oil Cooler Outlet, No.1
[11.2006 - 12.2008] GSR50..GCC; GSR50..ARL TOWING PACKAGE-WITH |
32942-28310 |
— | ||
|
32942
|
32942
32942-28330
Hose, Oil Cooler Outlet, No.1
[12.2008 - 04.2012] GSR50..GCC |
32942-28330 |
— | ||
|
32942A
|
32942A
90445-17179 Hose, Oil Cooler Inlet, No.3[11.2006 - 12.2008] GSR50 |
90445-17179 |
from US $5.52 |
||
|
32942B
|
32942B
32942-28270 Hose, Oil Cooler Inlet, No.2[01.2006 - 12.2008] ACR50,GSR50 |
32942-28270 |
from US $11.11 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9046616004
|
9046616004
90466-16004 Clip(For Ventilation Hose No.2) |
90466-16004 |
from US $1.85 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.32 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.62 |
||
|
9163560825
|
9163560825
91635-60825 New Genuine Part |
91635-60825 |
US $1.65 |
||
