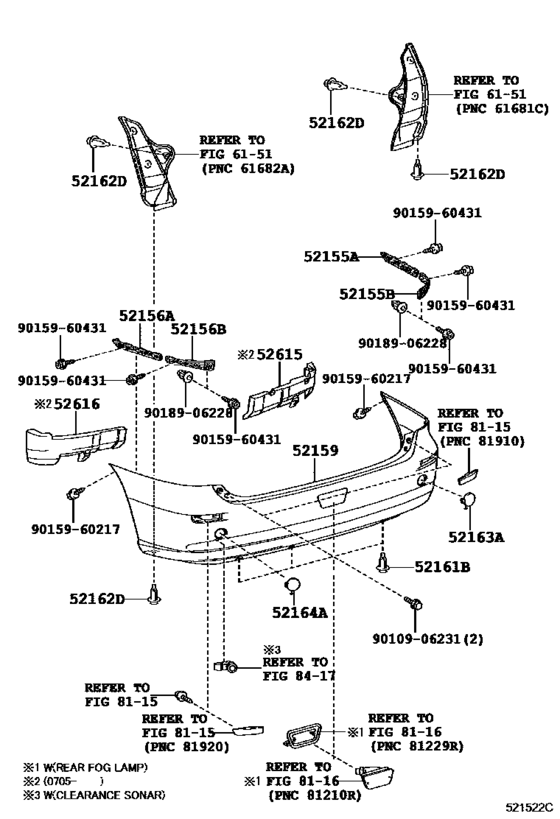

Rear Bumper & Bumper Stay ([01.2006 - ] (0601- )DLX,GL) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52155A
|
52155A
52155-28080 Support, Rear Bumper Side, Rh[01.2006 - 12.2008] ACR50,GSR50 |
52155-28080 |
from US $25.37 |
||
|
52155B
|
52155B
52155-28090 Support, Rear Bumper Side, No.2 Rh[01.2006 - 12.2008] ACR50,GSR50 |
52155-28090 |
from US $17.36 |
||
|
52156A
|
52156A
52156-28050 Support, Rear Bumper Side, Lh[01.2006 - 12.2008] ACR50,GSR50 |
52156-28050 |
from US $25.99 |
||
|
52156B
|
52156B
52156-28060 Support, Rear Bumper Side, No.2 Lh[01.2006 - 12.2008] ACR50,GSR50 |
52156-28060 |
from US $17.43 |
||
|
52159
|
52159
52159-28914 Cover, Rear BumperREAR BUMPER [01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN |
52159-28914 |
from US $249.29 |
||
|
52159
|
52159
52159-28915 Cover, Rear BumperREAR BUMPER [01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR) |
52159-28915 |
from US $293.69 |
||
|
52159
|
52159
52159-28952 Cover, Rear Bumper[04.2012 - 05.2016] GSR50..GCC;GSR50..RHD..GL;ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL) CLEARANCE SONAR-WITH |
52159-28952 |
from US $283.32 |
||
|
52161B
|
52161B
52161-16010 Clip[01.2006 - 12.2008] ACR50,GSR50 |
52161-16010 |
from US $1.72 |
||
| replacements | |||||
|
52161B
|
52161B
52161-0K040 Clip[01.2006 - 12.2008] ACR50,GSR50 |
52161-0K040 |
from US $1.50 |
||
|
52161B
|
52161B
52161-02020 Clip[01.2006 - 12.2008] ACR50,GSR50 |
52161-02020 |
US $5.27 |
||
|
52162D
|
52162D
52161-16010 Clip[01.2006 - 12.2008] ACR50,GSR50 |
52161-16010 |
from US $1.72 |
||
| replacements | |||||
|
52162D
|
52162D
52161-0K040 Clip[01.2006 - 12.2008] ACR50,GSR50 |
52161-0K040 |
from US $1.50 |
||
|
52162D
|
52162D
52161-02020 Clip[01.2006 - 12.2008] ACR50,GSR50 |
52161-02020 |
US $5.27 |
||
|
52163A
|
52163A
52163-28030-A0
Plate, Rear Bumper, Rh
[01.2006 - 12.2008] ACR50,GSR50 SUPER WHITE 2,040 |
52163-28030-A0 |
— | ||
| replacement | |||||
|
52163A
|
52163A
52163-28901 PLATE RR BUMPER RH[01.2006 - 12.2008] ACR50,GSR50 SUPER WHITE 2,040 |
52163-28901 |
US $5.23 |
||
|
52163A
|
52163A
52163-28030-A1 Plate, Rear Bumper, Rh[01.2006 - 12.2008] ACR50,GSR50 WHITE PEARL CS.,070 |
52163-28030-A1 |
from US $6.83 |
||
|
52163A
|
52163A
52163-28030-B0 Plate, Rear Bumper, Rh[01.2006 - 12.2008] ACR50,GSR50 SILVER ME.,1F7 |
52163-28030-B0 |
US $9.32 |
||
|
52163A
|
52163A
52163-28030-B1 Plate, Rear Bumper, RhREAR BUMPER, RH [01.2006 - 12.2008] ACR50,GSR50 MEDIUM SILVER ME.,1F8 |
52163-28030-B1 |
US $6.99 |
||
|
52163A
|
52163A
52163-28030-B3 Plate, Rear Bumper, Rh[04.2012 - 05.2016] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) ICE TITANIUM M.M.,1H4 |
52163-28030-B3 |
US $5.24 |
||
|
52163A
|
52163A
52163-28030-C0 Plate, Rear Bumper, Rh[01.2006 - 12.2008] ACR50,GSR50 BLACK,202 |
52163-28030-C0 |
US $5.24 |
||
|
52163A
|
52163A
52163-28030-D0 Plate, Rear Bumper, Rh[01.2006 - 12.2008] ACR50,GSR50 DK. RED M.M.,3Q3 |
52163-28030-D0 |
US $6.99 |
||
|
52163A
|
52163A
52163-28030-D1 Plate, Rear Bumper, Rh[04.2012 - 05.2016] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) DEEP RED M.M.,3R9 |
52163-28030-D1 |
US $5.82 |
||
|
52163A
|
52163A
52163-28030-E0
Plate, Rear Bumper, Rh
[09.2014 - 05.2016] ACR50,GSR50..DLX,GL DARK SHERRY M.M.,4W4 |
52163-28030-E0 |
— | ||
|
52163A
|
52163A
52163-28030-F0 Plate, Rear Bumper, Rh[01.2006 - 12.2008] ACR50,GSR50 SILKY GOLD M.M.,5A4 |
52163-28030-F0 |
US $5.82 |
||
|
52163A
|
52163A
52163-28030-J0 Plate, Rear Bumper, Rh[01.2006 - 12.2008] ACR50,GSR50 DK.BLUE MC.,8S6 |
52163-28030-J0 |
US $6.99 |
||
|
52163A
|
52163A
52163-28030-J1 Plate, Rear Bumper, Rh[01.2006 - 12.2008] ACR50,GSR50 LT.BLUE M.M.,8S7 |
52163-28030-J1 |
US $8.44 |
||
|
52163A
|
52163A
52163-28030-K0 Plate, Rear Bumper, Rh[12.2008 - 04.2012] GSR50..LHD;ACR50..GCC,GEN LT.PURPLE M.M.,9AE |
52163-28030-K0 |
US $6.99 |
||
|
52164A
|
52164A
52164-28020-A0 Plate, Rear Bumper, LhREAR BUMPER, LH [01.2006 - 12.2008] ACR50,GSR50 SUPER WHITE 2,040 |
52164-28020-A0 |
US $5.24 |
||
|
52164A
|
52164A
52164-28020-A1 Plate, Rear Bumper, Lh[01.2006 - 12.2008] ACR50,GSR50 WHITE PEARL CS.,070 |
52164-28020-A1 |
from US $6.75 |
||
|
52164A
|
52164A
52164-28020-B0 Plate, Rear Bumper, Lh[01.2006 - 12.2008] ACR50,GSR50 SILVER ME.,1F7 |
52164-28020-B0 |
US $6.60 |
||
|
52164A
|
52164A
52164-28020-B1 Plate, Rear Bumper, LhREAR BUMPER, LH [01.2006 - 12.2008] ACR50,GSR50 MEDIUM SILVER ME.,1F8 |
52164-28020-B1 |
US $6.99 |
||
|
52164A
|
52164A
52164-28020-B3 Plate, Rear Bumper, Lh[04.2012 - 05.2016] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) ICE TITANIUM M.M.,1H4 |
52164-28020-B3 |
US $5.24 |
||
|
52164A
|
52164A
52164-28020-C0 Plate, Rear Bumper, Lh[01.2006 - 12.2008] ACR50,GSR50 BLACK,202 |
52164-28020-C0 |
US $5.24 |
||
|
52164A
|
52164A
52164-28020-D0 Plate, Rear Bumper, Lh[01.2006 - 12.2008] ACR50,GSR50 DK. RED M.M.,3Q3 |
52164-28020-D0 |
US $6.99 |
||
|
52164A
|
52164A
52164-28020-D1 Plate, Rear Bumper, Lh[04.2012 - 05.2016] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) DEEP RED M.M.,3R9 |
52164-28020-D1 |
US $5.82 |
||
|
52164A
|
52164A
52164-28020-E0
Plate, Rear Bumper, Lh
[09.2014 - 05.2016] ACR50,GSR50..DLX,GL DARK SHERRY M.M.,4W4 |
52164-28020-E0 |
— | ||
|
52164A
|
52164A
52164-28020-F0 Plate, Rear Bumper, Lh[01.2006 - 12.2008] ACR50,GSR50 SILKY GOLD M.M.,5A4 |
52164-28020-F0 |
US $5.82 |
||
|
52164A
|
52164A
52164-28020-J0 Plate, Rear Bumper, Lh[01.2006 - 12.2008] ACR50,GSR50 DK.BLUE MC.,8S6 |
52164-28020-J0 |
US $6.99 |
||
|
52164A
|
52164A
52164-28020-J1 Plate, Rear Bumper, Lh[01.2006 - 12.2008] ACR50,GSR50 LT.BLUE M.M.,8S7 |
52164-28020-J1 |
US $8.44 |
||
|
52164A
|
52164A
52164-28020-K0 Plate, Rear Bumper, Lh[12.2008 - 04.2012] GSR50..LHD;ACR50..GCC,GEN LT.PURPLE M.M.,9AE |
52164-28020-K0 |
US $6.99 |
||
|
52615
|
52615
52615-28040 Absorber, Rear Bumper Energy[05.2007 - 12.2008] ACR50,GSR50 |
52615-28040 |
from US $20.18 |
||
|
52616
|
52616
52616-28010 Absorber, Rear Bumper Energy, Lh[05.2007 - 12.2008] ACR50,GSR50 |
52616-28010 |
US $101.68 |
||
|
9010906231
|
9010906231
90109-06231 BOLT |
90109-06231 |
from US $1.01 |
||
|
9015960217
|
9015960217
90159-60217 SCREW |
90159-60217 |
from US $1.19 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9018906228
|
9018906228
90189-06228 Grommet(For Rear Bumper) |
90189-06228 |
from US $0.76 |
||
