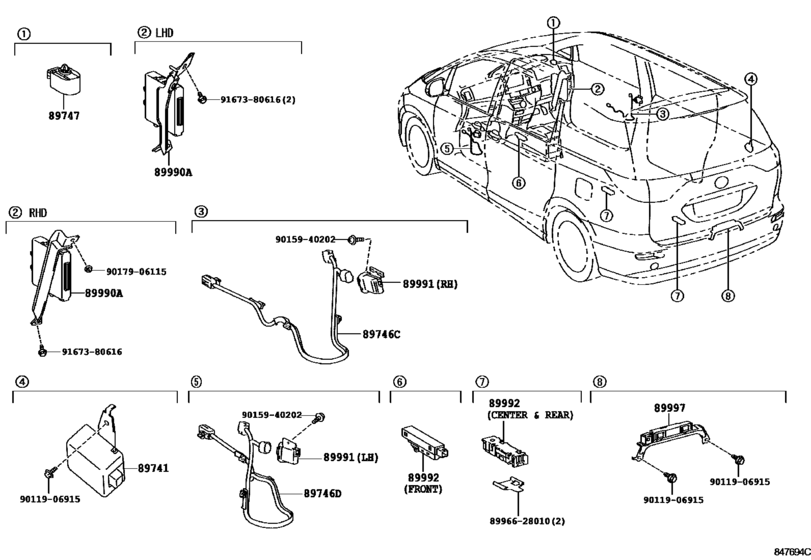

Wireless Door Lock ([01.2006 - ] W(SMART ENTRY) (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2016
- Sales region
- General
- Frame
- GSR50
- grade
- GL
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- From
- 11.2006
- To
- 05.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89741
|
89741
89740-28040
Receiver, Door Control
[01.2006 - 12.2008] ACR50,GSR50..GL..GCC WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PB D)&HEAD LAMP-DISCHARGE + AFS |
89740-28040 |
— | ||
| replacement | |||||
|
89741
|
89741
89740-28041
Receiver, Door Control
[01.2006 - 12.2008] ACR50,GSR50..GL..GCC WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PB D)&HEAD LAMP-DISCHARGE + AFS |
89740-28041 |
— | ||
|
89741
|
89741
89740-28041
Receiver, Door Control
[12.2010 - 04.2012] GSR50..GCC; ACR50..LHD..GL..GEN PHILIPPINES SPEC; ACR50..GL..GCC WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PB D)&HEADLAMP-DISCHARGE & AFS |
89740-28041 |
— | ||
|
89741
|
89741
89741-28250
Receiver, Door Control
[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN EXCEPT CHINA SPEC; ACR50..LHD..GL..GEN EXCEPT CHINA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH); ACR50..LHD..GL..GEN PHILIPPINES SPEC; ACR50..LHD..GL..GEN PHILI |
89741-28250 |
— | ||
| replacement | |||||
|
89741
|
89741
89741-28253
Receiver, Door Control
[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN EXCEPT CHINA SPEC; ACR50..LHD..GL..GEN EXCEPT CHINA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH); ACR50..LHD..GL..GEN PHILIPPINES SPEC; ACR50..LHD..GL..GEN PHILI |
89741-28253 |
— | ||
|
89746C
|
89746C
89746-28040 Harness, Electrical Key Wire, No.1[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; ACR50,GSR50..GL..GCC HEAD LAMP-DISCHARGE + AFS |
89746-28040 |
US $38.15 |
||
|
89746D
|
89746D
89746-28050 Harness, Electrical Key Wire, No.2[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; ACR50,GSR50..GL..GCC HEAD LAMP-DISCHARGE + AFS |
89746-28050 |
US $38.15 |
||
|
89747
|
89747
89747-52010 Buzzer, Wireless Door Lock[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE D OOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS; ACR50,GSR50..GL..GCC WIRELESS DOOR LOCK-WITH(SMART ENTRY)& |
89747-52010 |
from US $29.60 |
||
|
89990A
|
89990A
89990-28042
Computer Assy, Smart Key
[10.2006 - 12.2008] ACR50,GSR50..LHD..GL ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS |
89990-28042 |
— | ||
|
89990A
|
89990A
89990-28051
Computer Assy, Smart Key
[05.2006 - 12.2008] ACR50,GSR50..GL..GCC HEAD LAMP-DISCHARGE + AFS |
89990-28051 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-28052
Computer Assy, Smart Key
[05.2006 - 12.2008] ACR50,GSR50..GL..GCC HEAD LAMP-DISCHARGE + AFS |
89990-28052 |
— | ||
|
89990A
|
89990A
89990-28120
Computer Assy, Smart Key
[12.2008 - 06.2010] GSR50..LHD;ACR50..LHD..GL..GEN; ACR50..GL..GCC HEADLAMP-DISCHARGE & AFS |
89990-28120 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-28122
Computer Assy, Smart Key
[12.2008 - 06.2010] GSR50..LHD;ACR50..LHD..GL..GEN; ACR50..GL..GCC HEADLAMP-DISCHARGE & AFS |
89990-28122 |
— | ||
|
89990A
|
89990A
89990-28121
Computer Assy, Smart Key
[06.2010 - 04.2012] GSR50..LHD;ACR50..LHD..GL..GEN; ACR50..GL..GCC HEADLAMP-DISCHARGE & AFS |
89990-28121 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-28122
Computer Assy, Smart Key
[06.2010 - 04.2012] GSR50..LHD;ACR50..LHD..GL..GEN; ACR50..GL..GCC HEADLAMP-DISCHARGE & AFS |
89990-28122 |
— | ||
|
89990A
|
89990A
89990-28130
Computer Assy, Smart Key
[12.2008 - 05.2010] GSR50..LHD;ACR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; ACR50..GL..GCC ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEADLAMP-DISCHARGE & AFS |
89990-28130 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-28132
Computer Assy, Smart Key
[12.2008 - 05.2010] GSR50..LHD;ACR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; ACR50..GL..GCC ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEADLAMP-DISCHARGE & AFS |
89990-28132 |
— | ||
|
89990A
|
89990A
89990-28131
Computer Assy, Smart Key
[05.2010 - 04.2012] GSR50..LHD;ACR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; ACR50..GL..GCC ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEADLAMP-DISCHARGE & AFS |
89990-28131 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-28132
Computer Assy, Smart Key
[05.2010 - 04.2012] GSR50..LHD;ACR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM; ACR50..GL..GCC ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEADLAMP-DISCHARGE & AFS |
89990-28132 |
— | ||
|
89990A
|
89990A
89990-28280
Computer Assy, Smart Key
[04.2012 - 05.2016] GSR50..GCC;ACR50..LHD..4FC |
89990-28280 |
— | ||
|
89990A
|
89990A
89990-28290
Computer Assy, Smart Key
[04.2012 - 05.2016] GSR50..GCC;ACR50..LHD..4FC ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89990-28290 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-28291
Computer Assy, Smart Key
[04.2012 - 05.2016] GSR50..GCC;ACR50..LHD..4FC ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
89990-28291 |
— | ||
|
89991
|
89991
89991-28020 Oscillator, Door Electrical Key[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS,RH; ACR50,GSR50..GL..GCC HEAD LAMP-DISCHARGE + AFS,RH |
89991-28020 |
US $195.20 |
||
|
89991
|
89991
89991-28030 Oscillator, Door Electrical Key[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS,LH; ACR50,GSR50..GL..GCC HEAD LAMP-DISCHARGE + AFS,LH |
89991-28030 |
US $123.76 |
||
|
89992
|
89992
89992-28010 Oscillator, Indoor Electrical Key[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS,CENTER & REAR; ACR50,GSR50..GL..GCC HEAD LAMP-DISCHARGE + AFS,CENTER & REAR |
89992-28010 |
US $163.07 |
||
|
89992
|
89992
89992-52020 Oscillator, Indoor Electrical Key[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS,FRONT; ACR50,GSR50..GL..GCC HEAD LAMP-DISCHARGE + AFS,FRONT |
89992-52020 |
US $163.07 |
||
|
89997
|
89997
89997-28010 Antenna, Electrical Key[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; ACR50,GSR50..GL..GCC HEAD LAMP-DISCHARGE + AFS |
89997-28010 |
US $88.56 |
||
|
8996628010
|
8996628010
89966-28010 Bracket,rear Floor Plate |
89966-28010 |
US $3.20 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $1.08 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
