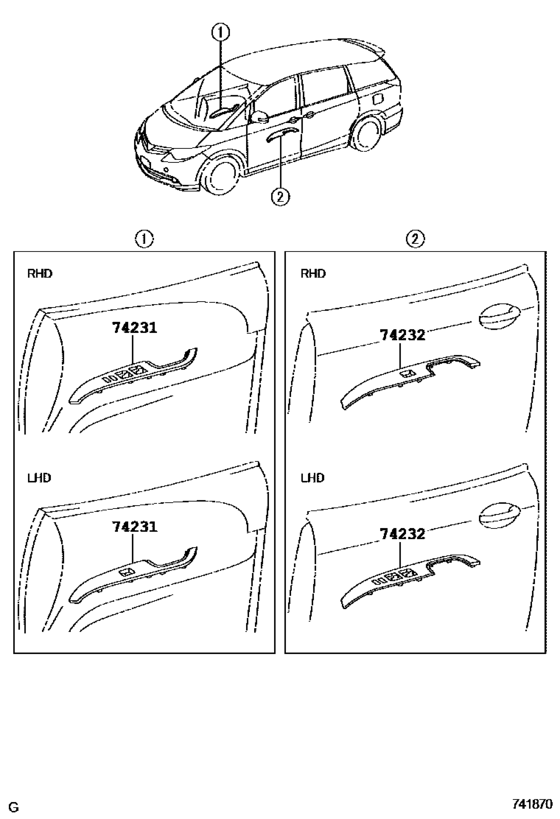

Armrest & Visor ([01.2006 - ] ARMREST (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74231
|
74231
74231-28860 Panel, Front Armrest Base, Upper Rh[01.2006 - 12.2008] ACR50,GSR50..RHD |
74231-28860 |
US $41.08 |
||
|
74231
|
74231
74231-28B70-B0 Panel, Front Armrest Base, Upper Rh[05.2012 - 05.2016] GSR50..DLX GRAY,TRIM0#; ACR50..ARL GRAY,TRIM2# |
74231-28B70-B0 |
US $28.68 |
||
|
74231
|
74231
74231-28D20-C0 Panel, Front Armrest Base, Upper Rh[05.2016 -] ACR50,GSR50..RHD..DLX BLACK,TRIM2# |
74231-28D20-C0 |
US $47.32 |
||
|
74232
|
74232
74232-28530 Panel, Front Armrest Base, Upper Lh[01.2006 - 12.2008] ACR50,GSR50..RHD |
74232-28530 |
US $40.03 |
||
|
74232
|
74232
74232-28690-B0 Panel, Front Armrest Base, Upper Lh[05.2012 - 05.2016] GSR50..DLX GRAY,TRIM0#; ACR50..ARL GRAY,TRIM2# |
74232-28690-B0 |
US $34.22 |
||
|
74232
|
74232
74232-28820-C0 Panel, Front Armrest Base, Upper Lh[05.2016 -] ACR50,GSR50..RHD..DLX BLACK,TRIM2# |
74232-28820-C0 |
US $56.35 |
