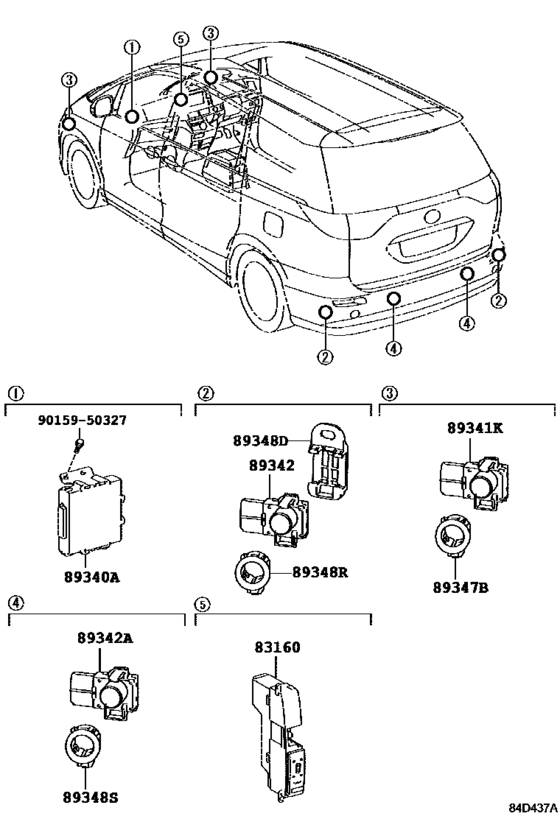

Clearance & Back Sonar ([04.2012 - 04.2013] (1204-1304)RHD..CVT ; (1204-1304)GSR50..RHD ; (1 204-1304)RHD..4FC..GEN ; (1304-1605 )RHD..DLX,GL) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83160
|
83160
83160-28050 Indicator Assy, Clearance Warning[01.2006 - 12.2008] ACR50,GSR50..RHD CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR) |
83160-28050 |
US $247.52 |
||
|
83160
|
83160
83160-28051 Indicator Assy, Clearance WarningCLEARANCE WARNING [12.2008 - 05.2012] ACR50..ARL;GSR50..RHD CLEARANCE SONAR-WITH |
83160-28051 |
US $182 |
||
|
83160
|
83160
83160-28052 Indicator Assy, Clearance Warning[04.2012 - 09.2014] GSR50..DLX;GSR50..RHD..GEN CLEARANCE SONAR-WITH |
83160-28052 |
US $151.42 |
||
|
89340A
|
89340A
89340-28190 Computer Assy, Clearance Warning[01.2006 - 12.2008] ACR50,GSR50..RHD CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR) |
89340-28190 |
US $497.95 |
||
|
89340A
|
89340A
89340-28230 Computer Assy, Clearance Warning[04.2012 - 09.2014] GSR50..DLX CLEARANCE SONAR-WITH |
89340-28230 |
US $123.76 |
||
|
89341K
|
89341K
89341-33190-A0
Sensor, Ultrasonic, No.1
[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SUPER WHITE 2,040 |
89341-33190-A0 |
— | ||
|
89341K
|
89341K
89341-33190-A1 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,WHITE PEARL CS.,070 |
89341-33190-A1 |
US $105.60 |
||
|
89341K
|
89341K
89341-33190-B0 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SILVER ME.,1F7 |
89341-33190-B0 |
US $105.60 |
||
|
89341K
|
89341K
89341-33190-C2 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,BLACK,202 |
89341-33190-C2 |
US $105.60 |
||
|
89341K
|
89341K
89341-33190-D4 Sensor, Ultrasonic, Front Corner[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,DEEP RED M.M.,3R9 |
89341-33190-D4 |
US $164.53 |
||
|
89341K
|
89341K
89341-33190-F0
Sensor, Ultrasonic, Front Corner
[04.2012 - 09.2014] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4 |
89341-33190-F0 |
— | ||
|
89341K
|
89341K
89341-33190-P0 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4 |
89341-33190-P0 |
US $148.51 |
||
|
89342
|
89342
89341-33190-A0
Sensor, Ultrasonic, No.1
[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SUPER WHITE 2,040 |
89341-33190-A0 |
— | ||
|
89342
|
89342
89341-33190-A1 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,WHITE PEARL CS.,070 |
89341-33190-A1 |
US $105.60 |
||
|
89342
|
89342
89341-33190-B0 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SILVER ME.,1F7 |
89341-33190-B0 |
US $105.60 |
||
|
89342
|
89342
89341-33190-C2 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,BLACK,202 |
89341-33190-C2 |
US $105.60 |
||
|
89342
|
89342
89341-33190-D4 Sensor, Ultrasonic, Front Corner[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,DEEP RED M.M.,3R9 |
89341-33190-D4 |
US $164.53 |
||
|
89342
|
89342
89341-33190-F0
Sensor, Ultrasonic, Front Corner
[04.2012 - 09.2014] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4 |
89341-33190-F0 |
— | ||
|
89342
|
89342
89341-33190-P0 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4 |
89341-33190-P0 |
US $148.51 |
||
|
89342A
|
89342A
89341-33190-A0
Sensor, Ultrasonic, No.1
[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SUPER WHITE 2,040 |
89341-33190-A0 |
— | ||
|
89342A
|
89342A
89341-33190-A1 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,WHITE PEARL CS.,070 |
89341-33190-A1 |
US $105.60 |
||
|
89342A
|
89342A
89341-33190-B0 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SILVER ME.,1F7 |
89341-33190-B0 |
US $105.60 |
||
|
89342A
|
89342A
89341-33190-C2 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,BLACK,202 |
89341-33190-C2 |
US $105.60 |
||
|
89342A
|
89342A
89341-33190-D4 Sensor, Ultrasonic, Front Corner[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,DEEP RED M.M.,3R9 |
89341-33190-D4 |
US $164.53 |
||
|
89342A
|
89342A
89341-33190-F0
Sensor, Ultrasonic, Front Corner
[04.2012 - 09.2014] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4 |
89341-33190-F0 |
— | ||
|
89342A
|
89342A
89341-33190-P0 Sensor, Ultrasonic, No.1[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4 |
89341-33190-P0 |
US $148.51 |
||
|
89347B
|
89347B
89348-71010-A0 Retainer, Ultrasonic Sensor, No.1ULTRASONIC SENSOR, NO.1 [04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SUPER WHITE 2,040 |
89348-71010-A0 |
US $2.94 |
||
|
89347B
|
89347B
89348-71010-A1 Retainer, Ultrasonic Sensor, Front CornerULTRASONIC SENSOR, NO.1 [04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,WHITE PEARL CS.,070 |
89348-71010-A1 |
from US $2.87 |
||
|
89347B
|
89347B
89348-71010-B5 Retainer, Ultrasonic Sensor, Front CornerULTRASONIC SENSOR, NO.1 [04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SILVER ME.,1F7 |
89348-71010-B5 |
US $3.10 |
||
|
89347B
|
89347B
89348-71010-C0 Retainer, Ultrasonic Sensor, Front CornerULTRASONIC SENSOR, NO.1 [04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,BLACK,202 |
89348-71010-C0 |
from US $2.69 |
||
|
89347B
|
89347B
89348-71010-D5
Retainer, Ultrasonic Sensor, Front Corner
[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,DEEP RED M.M.,3R9 |
89348-71010-D5 |
— | ||
|
89347B
|
89347B
89348-71010-F1
Retainer, Ultrasonic Sensor, Front Corner
[04.2012 - 09.2014] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4 |
89348-71010-F1 |
— | ||
|
89347B
|
89347B
89348-71010-P2
Retainer, Ultrasonic Sensor, Front Corner
[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4 |
89348-71010-P2 |
— | ||
|
89348D
|
89348D
89348-33090 Clip, Ultrasonic Sensor[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH |
89348-33090 |
from US $4.54 |
||
|
89348R
|
89348R
89348-33060-A0 Retainer, Ultrasonic Sensor, No.2ULTRASONIC SENSOR, NO.2 [04.2012 - 09.2012] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,SUPER WHITE 2,040 |
89348-33060-A0 |
from US $3.33 |
||
|
89348R
|
89348R
89348-33060-A2 Retainer, Ultrasonic Sensor, No.1[04.2012 - 09.2012] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,WHITE PEARL CS.,070 |
89348-33060-A2 |
US $2.98 |
||
|
89348R
|
89348R
89348-33060-B4 Retainer, Ultrasonic Sensor, No.1[04.2012 - 09.2012] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,SILVER ME.,1F7 |
89348-33060-B4 |
from US $3.24 |
||
|
89348R
|
89348R
89348-33060-C0 Retainer, Ultrasonic Sensor, No.1[04.2012 - 09.2012] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,BLACK,202 |
89348-33060-C0 |
US $3.37 |
||
|
89348R
|
89348R
89348-33060-F3
Retainer, Ultrasonic Sensor, Rear Corner
[04.2012 - 09.2012] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4 |
89348-33060-F3 |
— | ||
|
89348R
|
89348R
89348-33060-P6
Retainer, Ultrasonic Sensor, No.1
[04.2012 - 09.2012] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4 |
89348-33060-P6 |
— | ||
|
89348R
|
89348R
89348-33060-X0
Retainer, Ultrasonic Sensor, Rear Corner
[04.2012 - 09.2012] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,DEEP RED M.M.,3R9 |
89348-33060-X0 |
— | ||
|
89348R
|
89348R
89348-33100-A0 Retainer, Ultrasonic Sensor, No.1[10.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SUPER WHITE 2,040 |
89348-33100-A0 |
from US $5.95 |
||
|
89348R
|
89348R
89348-33100-A1 Retainer, Ultrasonic Sensor, Front Corner[10.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,WHITE PEARL CS.,070 |
89348-33100-A1 |
US $6.22 |
||
|
89348R
|
89348R
89348-33100-B0 Retainer, Ultrasonic Sensor, Front Corner[10.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SILVER ME.,1F7 |
89348-33100-B0 |
from US $6.57 |
||
|
89348R
|
89348R
89348-33100-B9
Retainer, Ultrasonic Sensor, Front Corner
[10.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4 |
89348-33100-B9 |
— | ||
|
89348R
|
89348R
89348-33100-C4
Retainer, Ultrasonic Sensor, Front Corner
[10.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,BLACK,202 |
89348-33100-C4 |
— | ||
|
89348R
|
89348R
89348-33100-D5
Retainer, Ultrasonic Sensor, Front Corner
[10.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,DEEP RED M.M.,3R9 |
89348-33100-D5 |
— | ||
|
89348R
|
89348R
89348-33100-F1
Retainer, Ultrasonic Sensor, Rear Corner
[10.2012 - 09.2014] ACR50,GSR50..DLX,GL CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4 |
89348-33100-F1 |
— | ||
|
89348S
|
89348S
89348-71010-A0 Retainer, Ultrasonic Sensor, No.1ULTRASONIC SENSOR, NO.1 [04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SUPER WHITE 2,040 |
89348-71010-A0 |
US $2.94 |
||
|
89348S
|
89348S
89348-71010-A1 Retainer, Ultrasonic Sensor, Front CornerULTRASONIC SENSOR, NO.1 [04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,WHITE PEARL CS.,070 |
89348-71010-A1 |
from US $2.87 |
||
|
89348S
|
89348S
89348-71010-B5 Retainer, Ultrasonic Sensor, Front CornerULTRASONIC SENSOR, NO.1 [04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,SILVER ME.,1F7 |
89348-71010-B5 |
US $3.10 |
||
|
89348S
|
89348S
89348-71010-C0 Retainer, Ultrasonic Sensor, Front CornerULTRASONIC SENSOR, NO.1 [04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,BLACK,202 |
89348-71010-C0 |
from US $2.69 |
||
|
89348S
|
89348S
89348-71010-D5
Retainer, Ultrasonic Sensor, Front Corner
[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,DEEP RED M.M.,3R9 |
89348-71010-D5 |
— | ||
|
89348S
|
89348S
89348-71010-F1
Retainer, Ultrasonic Sensor, Front Corner
[04.2012 - 09.2014] GSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN) CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4 |
89348-71010-F1 |
— | ||
|
89348S
|
89348S
89348-71010-P2
Retainer, Ultrasonic Sensor, Front Corner
[04.2012 - 09.2014] GSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4 |
89348-71010-P2 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
