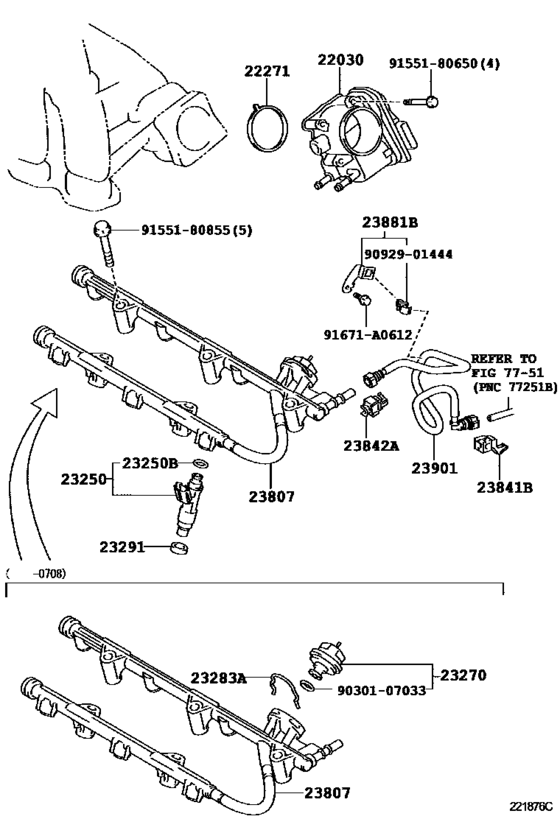

Fuel Injection System ([11.2006 - ] (0611- )2GRFE) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-31030 Body Assy, Throttle W/motor[11.2006 - 12.2008] 2GRFE..GSR50 |
22030-31030 |
from US $738.91 |
||
|
22271
|
22271
22271-31040 Gasket, Throttle Body[11.2006 - 12.2008] 2GRFE..GSR50 |
22271-31040 |
from US $3.65 |
||
|
23250
|
23250
23209-31050 Injector Assy, Fuel[11.2006 - 12.2008] 2GRFE..GSR50 |
23209-31050 |
from US $166.10 |
||
|
23250B
|
23250B
90301-07033 Ring, O(For Fuel Injector)[11.2006 - 12.2008] 2GRFE..GSR50 |
90301-07033 |
from US $2.18 |
||
|
23270
|
23270
23270-31010
Damper Assy, Fuel Pressure Pulsation
[11.2006 - 08.2007] 2GRFE..GSR50 |
23270-31010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[11.2006 - 08.2007] 2GRFE..GSR50 |
23270-31140 |
from US $48.05 |
||
|
23283A
|
23283A
23283-31010 Holder, Fuel Pressure Regulator[11.2006 - 08.2007] 2GRFE..GSR50 |
23283-31010 |
US $2.27 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[11.2006 - 12.2008] 2GRFE..GSR50 |
23291-23010 |
from US $2.59 |
||
|
23807
|
23807
23807-31040 Pipe Sub-Assy, Fuel Delivery[11.2006 - 08.2007] 2GRFE..GSR50 |
23807-31040 |
US $179.09 |
||
|
23807
|
23807
23807-31090 Pipe Sub-Assy, Fuel Delivery[08.2007 - 12.2008] 2GRFE..GSR50 |
23807-31090 |
from US $123.20 |
||
|
23841B
|
23841B
23841-28020 Clamp, Fuel Pipe, No.1(For Efi)[11.2006 - 12.2008] 2GRFE..GSR50 |
23841-28020 |
US $12.54 |
||
|
23842A
|
23842A
23842-31020 Clamp, Fuel Pipe, No.2(For Efi)[11.2006 - 12.2008] 2GRFE..GSR50 |
23842-31020 |
US $5.77 |
||
|
23881B
|
23881B
23881-31050 Bracket, Fuel Hose[11.2006 - 12.2008] 2GRFE..GSR50 |
23881-31050 |
US $2.91 |
||
|
23901
|
23901
23901-31080 Tube Sub-Assy, Fuel[11.2006 - 12.2008] 2GRFE..GSR50 |
23901-31080 |
from US $39.90 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.64 |
||
|
9030107033
|
9030107033
90301-07033 Ring, O(For Fuel Injector) |
90301-07033 |
from US $2.18 |
||
|
9092901444
|
9092901444
90929-01444 Clamp Or Clip, Fuel Hose(For Efi) |
90929-01444 |
from US $1.81 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.80 |
||
|
9155180855
|
9155180855
91551-80855 New Genuine Part |
91551-80855 |
US $1.79 |
||
