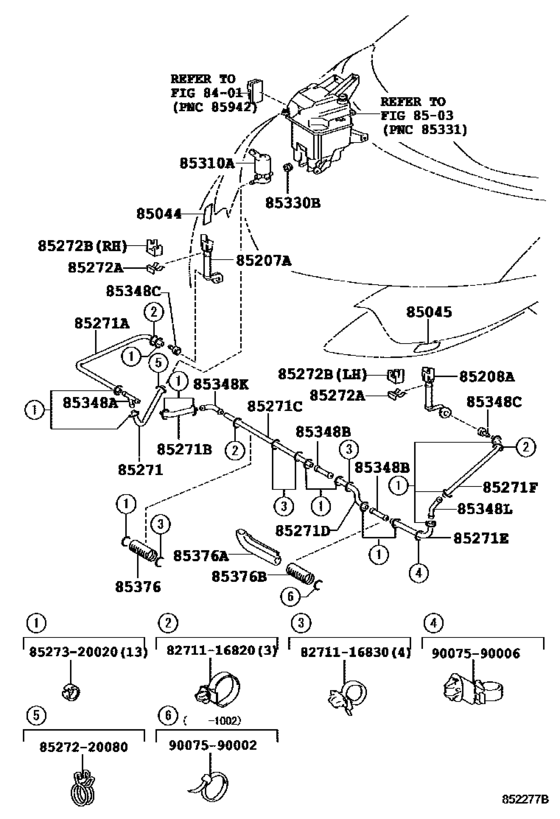

Headlamp Cleaner ([12.2008 - ] (0812- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85044
|
85044
85044-28030-A0
Nozzle Sub-Assy, Type1 H/lamp Washer, Rh
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,SUPER WHITE 2,040 |
85044-28030-A0 |
— | ||
|
85044
|
85044
85044-28030-A1 Nozzle Sub-Assy, Type1 H/lamp Washer, RhTYPE1 H/LAMP WASHER, RH [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,WHITE PEARL CS.,070 |
85044-28030-A1 |
US $14.20 |
||
|
85044
|
85044
85044-28030-B1 Nozzle Sub-Assy, Type1 H/lamp Washer, RhTYPE1 H/LAMP WASHER, RH [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,SILVER ME.,1F7 |
85044-28030-B1 |
US $13.85 |
||
|
85044
|
85044
85044-28030-B3
Nozzle Sub-Assy, Type1 H/lamp Washer, Rh
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,ICE TITANIUM M.M.,1H4 |
85044-28030-B3 |
— | ||
|
85044
|
85044
85044-28030-C0 Nozzle Sub-Assy, Type1 H/lamp Washer, RhTYPE1 H/LAMP WASHER, RH [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,BLACK,202 |
85044-28030-C0 |
US $13.81 |
||
|
85044
|
85044
85044-28030-D1
Nozzle Sub-Assy, Type1 H/lamp Washer, Rh
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,DEEP RED M.M.,3R9 |
85044-28030-D1 |
— | ||
|
85044
|
85044
85044-28030-F0
Nozzle Sub-Assy, Type1 H/lamp Washer, Rh
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,SILKY GOLD M.M.,5A4 |
85044-28030-F0 |
— | ||
|
85045
|
85045
85045-28030-A0
Nozzle Sub-Assy, Type1 H/lamp Washer, Lh
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,SUPER WHITE 2,040 |
85045-28030-A0 |
— | ||
|
85045
|
85045
85045-28030-A1 Nozzle Sub-Assy, Type1 H/lamp Washer, LhTYPE1 H/LAMP WASHER, LH [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,WHITE PEARL CS.,070 |
85045-28030-A1 |
US $13.81 |
||
|
85045
|
85045
85045-28030-B1
Nozzle Sub-Assy, Type1 H/lamp Washer, Lh
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,SILVER ME.,1F7 |
85045-28030-B1 |
— | ||
|
85045
|
85045
85045-28030-B3
Nozzle Sub-Assy, Type1 H/lamp Washer, Lh
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,ICE TITANIUM M.M.,1H4 |
85045-28030-B3 |
— | ||
|
85045
|
85045
85045-28030-C0 Nozzle Sub-Assy, Type1 H/lamp Washer, LhTYPE1 H/LAMP WASHER, LH [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,BLACK,202 |
85045-28030-C0 |
US $14.24 |
||
|
85045
|
85045
85045-28030-D1
Nozzle Sub-Assy, Type1 H/lamp Washer, Lh
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,DEEP RED M.M.,3R9 |
85045-28030-D1 |
— | ||
|
85045
|
85045
85045-28030-F0
Nozzle Sub-Assy, Type1 H/lamp Washer, Lh
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,SILKY GOLD M.M.,5A4 |
85045-28030-F0 |
— | ||
|
85207A
|
85207A
85207-28030 Actuator Sub-Assy, Headlamp Washer, RhHEADLAMP WASHER, RH [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85207-28030 |
US $182.64 |
||
|
85208A
|
85208A
85208-28030 Actuator Sub-Assy, Headlamp Washer, LhHEADLAMP WASHER, LH [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85208-28030 |
US $179.48 |
||
|
85271
|
85271
85375-50020 Hose, Windshield Washer (From Joint To Joint), No.5[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85375-50020 |
from US $2.44 |
||
|
85271A
|
85271A
85375-14400 Hose, Headlamp Cleaner, No.2HEADLAMP CLEANER, NO.3 [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL L=170,HEADLAMP-DISCHARGE & AFS |
85375-14400 |
from US $5.24 |
||
|
85271B
|
85271B
85375-20190 Hose, Headlamp Cleaner, No.2[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL L=90,HEADLAMP-DISCHARGE & AFS |
85375-20190 |
US $5.39 |
||
|
85271C
|
85271C
90445-14072 Hose, Headlamp Cleaner, No.1[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL *H,L=750,HEADLAMP-DISCHARGE & AFS |
90445-14072 |
from US $18.82 |
||
|
85271D
|
85271D
90075-15017 Hose, Headlamp Cleaner, No.3HEADLAMP CLEANER, NO.3 [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL L=120,HEADLAMP-DISCHARGE & AFS |
90075-15017 |
US $2.62 |
||
|
85271E
|
85271E
90075-15051 Hose, Headlamp Cleaner, No.1HEADLAMP CLEANER, NO.6 [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL L=140,HEADLAMP-DISCHARGE & AFS |
90075-15051 |
US $4.37 |
||
|
85271F
|
85271F
85376-16020 Hose, Headlamp Cleaner, No.5[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL L=260,HEADLAMP-DISCHARGE & AFS |
85376-16020 |
US $9.90 |
||
|
85272A
|
85272A
85272-28030 Clamp, Headlamp Cleaner, No.1HEADLAMP CLEANER [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85272-28030 |
from US $3.90 |
||
|
85272B
|
85272B
85272-28050 Clamp, Headlamp Cleaner, No.2HEADLAMP CLEANER [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,RH |
85272-28050 |
US $13.07 |
||
|
85272B
|
85272B
85273-28030 Clamp, Headlamp Cleaner, No.2HEADLAMP CLEANER [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS,LH |
85273-28030 |
US $12.62 |
||
|
85310A
|
85310A
85280-30040 Motor And Pump Assy, Headlamp Cleaner[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85280-30040 |
from US $108.24 |
||
|
85330B
|
85330B
90099-32089 Bush, Headlamp Cleaner Washer Jar[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330B
|
85330B
90099320891
Grommet
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
90099320891 |
— | ||
|
85330B
|
85330B
90068-32002 Bush, Windshield Washer Jar[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
90068-32002 |
US $7.46 |
||
|
85348A
|
85348A
85352-12010 Joint, Headlamp Cleaner Hose, No.1[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85352-12010 |
from US $5.87 |
||
|
85348B
|
85348B
85379-89131 Joint, Headlamp Cleaner Hose, No.1[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85379-89131 |
from US $2.07 |
||
|
85348C
|
85348C
85279-33040 Joint, Headlamp Cleaner Hose, No.1[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85279-33040 |
from US $5.32 |
||
|
85348K
|
85348K
85279-60007
Joint, Headlamp Cleaner Elbow, No.1
[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85279-60007 |
— | ||
|
85348L
|
85348L
85379-30010 Joint, Headlamp Cleaner Elbow, No.2HEADLAMP CLEANER HOSE, NO.5 [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85379-30010 |
US $3.20 |
||
|
85376
|
85376
85377-20621 Protector, Headlamp Cleaner Hose, No.1HEADLAMP CLEANER HOSE, NO.1 [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85377-20621 |
US $3.06 |
||
|
85376A
|
85376A
85389-28790 Protector, Headlamp Cleaner Hose, No.2HEADLAMP CLEANER HOSE, NO.2 [04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85389-28790 |
US $3.64 |
||
|
85376B
|
85376B
85275-89146 Hose, Headlamp Cleaner, No.2[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85275-89146 |
US $3.93 |
||
| replacement | |||||
|
85376B
|
85376B
85376-12090 Hose, Headlamp Cleaner, No.3[04.2012 - 04.2013] GSR50..DLX;ACR50..CVT..ARL HEADLAMP-DISCHARGE & AFS |
85376-12090 |
US $5.10 |
||
|
8271116820
|
8271116820
82711-16820 Clamp, Hood Lock Control Wire |
82711-16820 |
from US $1.17 |
||
|
8271116830
|
8271116830
82711-16830 Clamp, Headlamp Cleaner, No.1 |
82711-16830 |
from US $1.15 |
||
|
8527220080
|
8527220080
85272-20080 Clamp, Headlamp Cleaner, No.1 |
85272-20080 |
from US $1.81 |
||
|
8527320020
|
8527320020
85273-20020 Clamp, Headlamp Cleaner, No.1 |
85273-20020 |
from US $1.77 |
||
|
9007590002
|
9007590002
90075-90002 New Genuine Part |
90075-90002 |
US $1.60 |
||
|
9007590006
|
9007590006
90075-90006 Clamp, Headlamp Cleaner, No.1 |
90075-90006 |
US $3.05 |
||
