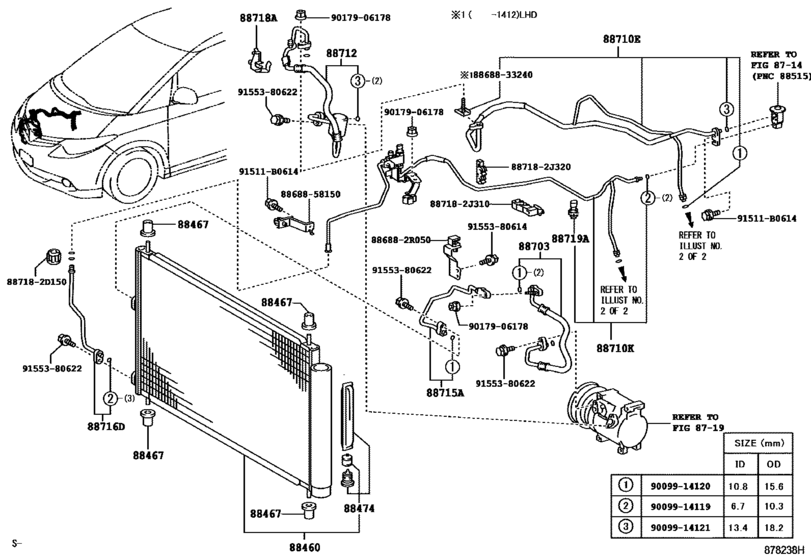

Heating & Air Conditioning - Cooler Piping ([11.2006 - ] FRONT (0611- )GSR50) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-28610
Condenser Assy, Cooler
[01.2006 - 12.2008] ACR50,GSR50..ARL TOWING PACKAGE-WITH |
88460-28610 |
— | ||
|
88460
|
88460
88460-42100 Condenser Assy, Cooler[01.2006 - 12.2008] ACR50;GSR50..ARL,GEN; ACR50..RHD..GEN SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER OPTION KIT; ACR50..RHD..GEN MALAYSIA SPEC&FRONT AIR CONDITIONER-DEALER OPTION KIT |
88460-42100 |
from US $594.36 |
||
|
88467
|
88467
16716-28010 Cushion, Fan Shroud[01.2006 - 12.2008] ACR50,GSR50 |
16716-28010 |
from US $2.13 |
||
|
88474
|
88474
88474-12030 Dryer, Cooler[08.2014 - 05.2016] ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN |
88474-12030 |
from US $66.04 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[01.2006 - 12.2008] ACR50,GSR50; ACR50..RHD..GEN SINGAPORE SPEC; ACR50..RHD..GEN MALAYSIA SPEC |
88474-17010 |
from US $65.40 |
||
|
88703
|
88703
88703-28151 Hose Sub-Assy, Discharge[11.2006 - 12.2008] GSR50 |
88703-28151 |
US $97.55 |
||
|
88710E
|
88710E
88710-2X180 Tube & Accessory Assy, Air Conditioner[01.2006 - 12.2008] ACR50,GSR50..RHD |
88710-2X180 |
US $282.46 |
||
|
88710K
|
88710K
88710-2X240 Tube & Accessory Assy, Air Conditioner, No.3[01.2006 - 12.2008] ACR50,GSR50..RHD |
88710-2X240 |
US $432.12 |
||
|
88712
|
88712
88712-28891 Hose, Cooler Refrigerant Suction, No.1[11.2006 - 12.2008] GSR50 |
88712-28891 |
US $158.70 |
||
|
88715A
|
88715A
88715-28580 Pipe, Cooler Refrigerant Discharge, A[11.2006 - 12.2008] GSR50..ARL,GEN |
88715-28580 |
US $81.54 |
||
|
88715A
|
88715A
88715-28590
Pipe, Cooler Refrigerant Discharge, A
[11.2006 - 12.2008] GSR50..GCC; GSR50..ARL TOWING PACKAGE-WITH |
88715-28590 |
— | ||
|
88715A
|
88715A
88715-28600 Pipe, Cooler Refrigerant Discharge, ACOOLER REFRIGERANT DISCHARGE, A [12.2008 - 05.2012] GSR50..RHD |
88715-28600 |
US $54.16 |
||
|
88715A
|
88715A
88715-28610
Pipe, Cooler Refrigerant Discharge, A
[12.2008 - 05.2012] GSR50..ARL TOWING PACKAGE-WITH |
88715-28610 |
— | ||
|
88716D
|
88716D
88716-2X510 Pipe, Cooler Refrigerant Liquid, D[01.2006 - 12.2008] ACR50;GSR50..ARL,GEN; ACR50..RHD..GEN SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER OPTION KIT; ACR50..RHD..GEN MALAYSIA SPEC&FRONT AIR CONDITIONER-DEALER OPTION KIT |
88716-2X510 |
from US $45.72 |
||
|
88716D
|
88716D
88716-2X520
Pipe, Cooler Refrigerant Liquid, D
[01.2006 - 12.2008] ACR50,GSR50..ARL TOWING PACKAGE-WITH |
88716-2X520 |
— | ||
|
88716D
|
88716D
88716-2X680 Pipe, Cooler Refrigerant Liquid, DCOOLER REFRIGERANT LIQUID, D [12.2008 - 05.2012] ACR50..ARL;GSR50..RHD |
88716-2X680 |
from US $49.35 |
||
|
88716D
|
88716D
88716-2X690
Pipe, Cooler Refrigerant Liquid, D
[12.2008 - 05.2012] ACR50,GSR50..ARL TOWING PACKAGE-WITH |
88716-2X690 |
— | ||
|
88718A
|
88718A
88718-28A10
Clamp(For Cooler Refrigerant Pipe), No.1
[05.2016 -] GSR50 |
88718-28A10 |
— | ||
|
88718A
|
88718A
88718-2J340
Clamp(For Cooler Refrigerant Pipe), No.1
[11.2006 - 12.2008] GSR50 |
88718-2J340 |
— | ||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[09.2007 - 12.2008] ACR50,GSR50 |
88719-33020 |
from US $124.05 |
||
|
88719A
|
88719A
88719-40020 Sensor, Airconditioner Pressure[01.2006 - 08.2007] ACR50,GSR50 |
88719-40020 |
from US $83.72 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
886882R050
|
886882R050
88688-2R050
Bracket, Cooler Diaphragm
|
88688-2R050 |
— | ||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
887182J310
|
887182J310
88718-2J310
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2J310 |
— | ||
|
887182J320
|
887182J320
88718-2J320
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2J320 |
— | ||
|
8868833240
|
8868833240
88688-33240
Bracket, Cooler Refrigerant Hose, No.2
|
88688-33240 |
— | ||
|
8868858150
|
8868858150
88688-58150
Bracket, Cooler Diaphragm
|
88688-58150 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9155380622
|
9155380622
91553-80622 BOLT FLANGE |
91553-80622 |
from US $0.68 |
||
