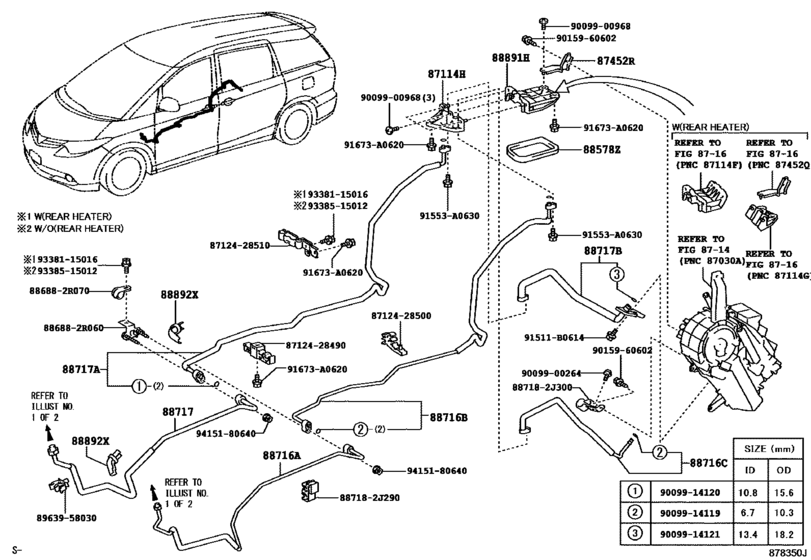

Heating & Air Conditioning - Cooler Piping ([01.2006 - ] REAR (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87114H
|
87114H
87114-28090
Cover, Heater
[01.2006 - 12.2008] ACR50,GSR50 |
87114-28090 |
— | ||
|
87452R
|
87452R
87452-28150
Bracket, Heater, No.1
[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN WITHOUT(COLD AREA SPEC) |
87452-28150 |
— | ||
|
88578Z
|
88578Z
88578-2X030
Packing, Cooler, No.1
[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN WITHOUT(COLD AREA SPEC) |
88578-2X030 |
— | ||
|
88716A
|
88716A
88716-2X480 Pipe, Cooler Refrigerant Liquid, A[01.2006 - 12.2008] ACR50,GSR50 |
88716-2X480 |
US $109.88 |
||
|
88716B
|
88716B
88716-2X490 Pipe, Cooler Refrigerant Liquid, B[01.2006 - 12.2008] ACR50,GSR50 |
88716-2X490 |
US $204.80 |
||
|
88716C
|
88716C
88716-2X500 Pipe, Cooler Refrigerant Liquid, C[01.2006 - 12.2008] ACR50,GSR50 |
88716-2X500 |
from US $51.25 |
||
|
88717
|
88717
88717-2R500 Pipe, Cooler Refrigerant Suction, No.1[01.2006 - 12.2008] ACR50,GSR50 |
88717-2R500 |
US $164 |
||
|
88717A
|
88717A
88717-2R510 Pipe, Cooler Refrigerant Suction, A[01.2006 - 12.2008] ACR50,GSR50 |
88717-2R510 |
US $333.84 |
||
|
88717B
|
88717B
88717-2R520 Pipe, Cooler Refrigerant Suction, B[01.2006 - 12.2008] ACR50,GSR50 |
88717-2R520 |
from US $89.11 |
||
|
88891H
|
88891H
88891-28150
Cover, Cooler, No.1
[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN WITHOUT(COLD AREA SPEC) |
88891-28150 |
— | ||
|
88892X
|
88892X
88892-28030
Cover, Cooler, No.2
[01.2006 - 12.2008] ACR50,GSR50 |
88892-28030 |
— | ||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
91553A0630
|
91553A0630
91553-A0630 New Genuine Part |
91553-A0630 |
US $1.61 |
||
|
91673A0620
|
91673A0620
91673-A0620 BOLT FLANGE |
91673-A0620 |
from US $0.66 |
||
|
886882R060
|
886882R060
88688-2R060
Bracket, Cooler Diaphragm
|
88688-2R060 |
— | ||
|
886882R070
|
886882R070
88688-2R070
Bracket, Cooler Diaphragm
|
88688-2R070 |
— | ||
|
887182J290
|
887182J290
88718-2J290
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2J290 |
— | ||
|
887182J300
|
887182J300
88718-2J300
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2J300 |
— | ||
|
8712428490
|
8712428490
87124-28490
Clamp, Heater
|
87124-28490 |
— | ||
|
8712428500
|
8712428500
87124-28500
Clamp, Heater
|
87124-28500 |
— | ||
|
8712428510
|
8712428510
87124-28510
Clamp, Heater
|
87124-28510 |
— | ||
|
8963958030
|
8963958030
89639-58030 Wire, Brake Control |
89639-58030 |
US $6.12 |
||
|
9009900264
|
9009900264
90099-00264
SCREW
|
90099-00264 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9338115016
|
9338115016
93381-15016 New Genuine Part |
93381-15016 |
US $0.96 |
||
|
9338515012
|
9338515012
93385-15012 SCREW |
93385-15012 |
US $2.87 |
||
|
9415180640
|
9415180640
94151-80640 NUTFLANGE |
94151-80640 |
US $1.08 |
||
