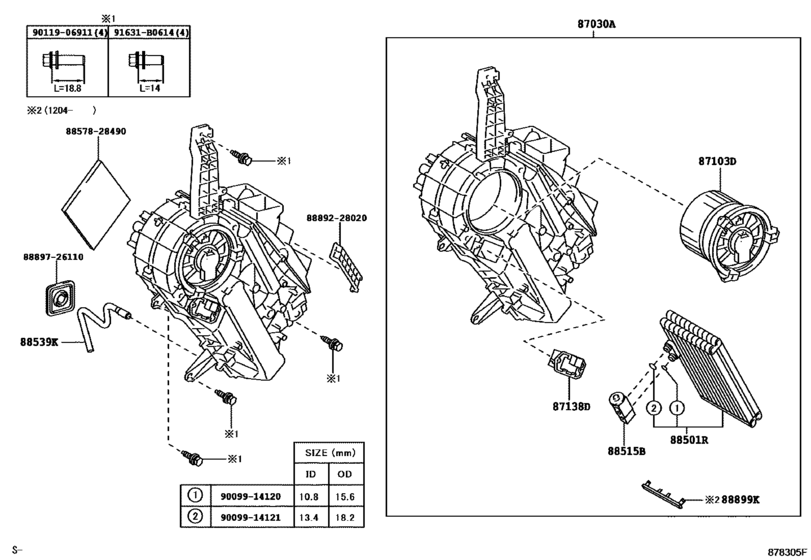

Heating & Air Conditioning - Cooler Unit ([01.2006 - ] REAR(MANUAL) (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87030A
|
87030A
87030-28220
Unit Assy, Cooling, Rear
[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
87030-28220 |
— | ||
|
87030A
|
87030A
87030-28230
Unit Assy, Cooling, Rear
[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN WITHOUT(COLD AREA SPEC) |
87030-28230 |
— | ||
|
87103D
|
87103D
87103-28110
Motor Sub-Assy, Blower W/fan(For Rear)
[01.2006 - 12.2008] ACR50,GSR50 |
87103-28110 |
— | ||
| replacement | |||||
|
87103D
|
87103D
87103-28111 Motor Sub-Assy, Cooling Unit, W/fan[01.2006 - 12.2008] ACR50,GSR50 |
87103-28111 |
from US $238.60 |
||
|
87103D
|
87103D
87103-28111 Motor Sub-Assy, Cooling Unit, W/fan[10.2010 - 05.2012] ACR50..ARL;GSR50..RHD |
87103-28111 |
from US $238.60 |
||
|
87138D
|
87138D
87138-28250 Resistor, Blower (Rear)[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN WITHOUT(COLD AREA SPEC) |
87138-28250 |
US $52.01 |
||
|
88501R
|
88501R
88501-28360 Evaporator Sub-Assy (Rear)[01.2006 - 12.2008] ACR50,GSR50 |
88501-28360 |
from US $396.61 |
||
|
88515B
|
88515B
88515-28200 Valve, Rear Cooling Unit Expansion[01.2006 - 12.2008] ACR50,GSR50 |
88515-28200 |
from US $100.52 |
||
|
88515B
|
88515B
88515-28250 Valve, Rear Cooling Unit Expansion[06.2014 - 05.2016] ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN |
88515-28250 |
from US $84.45 |
||
|
88539K
|
88539K
88539-28270
Hose, Drain Cooler
[01.2006 - 12.2008] ACR50,GSR50 |
88539-28270 |
— | ||
|
88899K
|
88899K
88899-60450 Plate, Cover[04.2012 - 05.2016] ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
88899-60450 |
US $3.20 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
8857828490
|
8857828490
88578-28490
Packing, Cooling Unit, No.1
|
88578-28490 |
— | ||
|
8889228020
|
8889228020
88892-28020
Plate, Cooler
|
88892-28020 |
— | ||
|
8889726110
|
8889726110
88897-26110
Valve, Cooler Magnet
|
88897-26110 |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
from US $0.92 |
||
