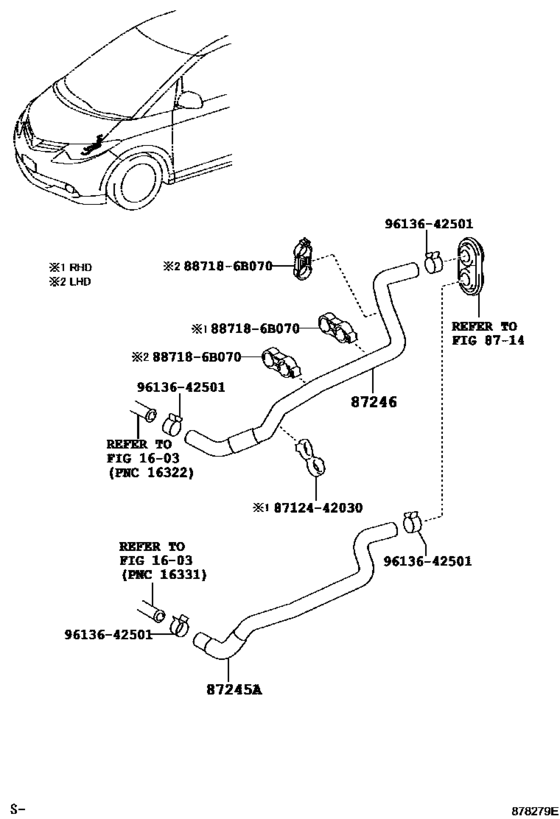

Heating & Air Conditioning - Water Piping ([11.2006 - ] FRONT,W/O(REAR HEATER) (0611- )GSR50) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87209-28A30 Hose, Heater Water, Inlet A[11.2006 - 12.2008] GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
87209-28A30 |
US $49.21 |
||
| replacement | |||||
|
87245A
|
87245A
87209-28A31 Hose, Heater Water, Inlet A[11.2006 - 12.2008] GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
87209-28A31 |
from US $61.32 |
||
|
87245A
|
87245A
87209-28A31 Hose, Heater Water, Inlet A[12.2011 - 05.2012] GSR50..RHD..GEN; GSR50..ARL COLD AREA SPEC |
87209-28A31 |
from US $61.32 |
||
|
87245A
|
87245A
87245-28B40 Hose, Heater Water, Inlet A[11.2006 - 12.2008] GSR50..RHD |
87245-28B40 |
US $17.33 |
||
|
87246
|
87246
87209-28A20 Hose, Heater Water, Outlet[11.2006 - 12.2008] GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
87209-28A20 |
US $51.98 |
||
| replacement | |||||
|
87246
|
87246
87209-28A21 Hose, Heater Water, Outlet[11.2006 - 12.2008] GSR50..RHD COLD SPEC(BATTERY SIZE:80D26L) |
87209-28A21 |
from US $64.85 |
||
|
87246
|
87246
87209-28A21 Hose, Heater Water, Outlet[12.2011 - 05.2012] GSR50..RHD..GEN; GSR50..ARL COLD AREA SPEC |
87209-28A21 |
from US $64.85 |
||
|
87246
|
87246
87245-28B30 Hose, Heater Water, Outlet[11.2006 - 12.2008] GSR50..RHD |
87245-28B30 |
US $19.22 |
||
|
887186B070
|
887186B070
88718-6B070
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6B070 |
— | ||
|
8712442030
|
8712442030
87124-42030 Clamp, Heater |
87124-42030 |
from US $1.40 |
||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.26 |
||
