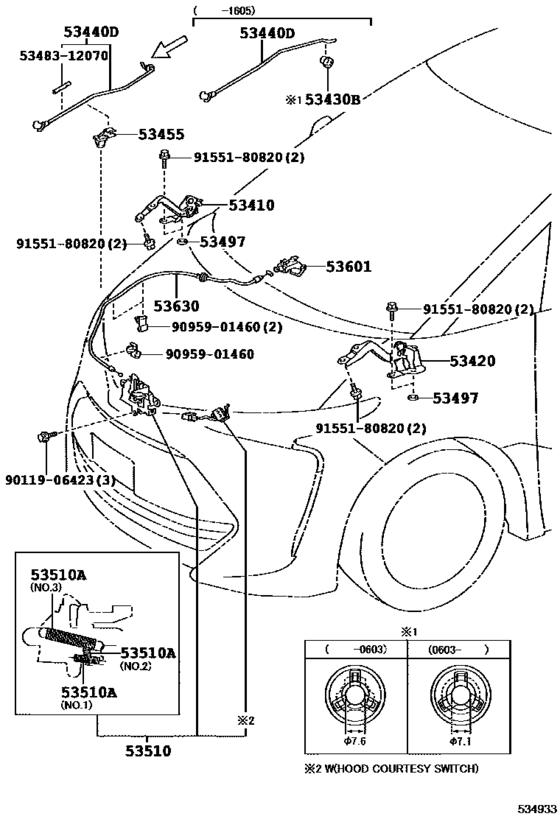

Hood Lock & Hinge ([01.2006 - ] (0601- )RHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-28060
Hinge Assy, Hood, Rh
[01.2006 - 12.2008] ACR50,GSR50 |
53410-28060 |
— | ||
| replacement | |||||
|
53410
|
53410
53410-28130 Hinge Assy, Hood, Rh[01.2006 - 12.2008] ACR50,GSR50 |
53410-28130 |
from US $21.04 |
||
|
53410
|
53410
53410-28130 Hinge Assy, Hood, Rh[05.2016 -] ACR50,GSR50 |
53410-28130 |
from US $21.04 |
||
|
53420
|
53420
53420-28060
Hinge Assy, Hood, Lh
[01.2006 - 12.2008] ACR50,GSR50 |
53420-28060 |
— | ||
| replacement | |||||
|
53420
|
53420
53420-28130 Hinge Assy, Hood, Lh[01.2006 - 12.2008] ACR50,GSR50 |
53420-28130 |
from US $20.65 |
||
|
53420
|
53420
53420-28130 Hinge Assy, Hood, Lh[05.2016 -] ACR50,GSR50 |
53420-28130 |
from US $20.65 |
||
|
53430B
|
53430B
90480-15025 Grommet(For Hood Support)[03.2006 - 12.2008] ACR50,GSR50 |
90480-15025 |
from US $3.94 |
||
|
53440D
|
53440D
53440-28010 Support Assy, Hood[01.2006 - 12.2008] ACR50,GSR50 |
53440-28010 |
US $11.79 |
||
|
53440D
|
53440D
53440-28040 Support Assy, Hood[05.2016 -] ACR50,GSR50 |
53440-28040 |
US $14.26 |
||
|
53455
|
53455
53452-28020 Clamp, Hood Support Rod[05.2016 -] ACR50,GSR50 |
53452-28020 |
US $2.62 |
||
|
53455
|
53455
53455-28040 Clamp, Hood Support Rod[03.2006 - 12.2008] ACR50,GSR50 |
53455-28040 |
from US $3.59 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[05.2006 - 12.2008] ACR50,GSR50 T=2.0 |
53497-20070 |
US $2.51 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[01.2006 - 12.2008] ACR50,GSR50 T=0.5 |
53497-42010 |
US $1.79 |
||
|
53510
|
53510
53510-28090 Lock Assy, Hood[01.2006 - 12.2008] ACR50,GSR50..RHD |
53510-28090 |
from US $37.26 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[01.2006 - 12.2008] ACR50,GSR50 WD=0.9,CW=21,NO.1 |
90506-09055 |
from US $1.52 |
||
|
53510A
|
53510A
90506-12063 Spring, Tension(For Hood Lock)[01.2006 - 12.2008] ACR50,GSR50 WD=1.2,CW=8.5,NO.2 |
90506-12063 |
from US $1.33 |
||
|
53510A
|
53510A
90506-18067 Spring, Tension(For Hood Lock)[01.2006 - 12.2008] ACR50,GSR50 WD=1.8,CW=13,NO.3 |
90506-18067 |
from US $1.48 |
||
|
53601
|
53601
53601-52010-A3 Lever Sub-Assy, Hood Lock Control[04.2012 - 05.2016] GSR50;ACR50..(DLX,GL)..(GCC,GEN) SHELL,TRIM0# |
53601-52010-A3 |
US $31.25 |
||
|
53601
|
53601
53601-52010-B9 Lever Sub-Assy, Hood Lock Control[01.2006 - 12.2008] ACR50,GSR50..RHD..DLX GRAY,TRIM1# |
53601-52010-B9 |
US $18.93 |
||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[05.2016 - 12.2016] GSR50;ACR50..CVT;ACR50..RHD..4FC BLACK,TRIM2# |
53601-52010-C0 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[05.2016 - 12.2016] GSR50;ACR50..CVT;ACR50..RHD..4FC BLACK,TRIM2# |
53601-52010-C1 |
from US $23.69 |
||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[12.2016 -] GSR50;ACR50..CVT;ACR50..RHD..4FC BLACK,TRIM2# |
53601-52010-C1 |
from US $23.69 |
||
|
53601
|
53601
53601-52010-E4 Lever Sub-Assy, Hood Lock Control[01.2006 - 12.2008] ACR50,GSR50 GREGE,TRIM4# |
53601-52010-E4 |
US $20.27 |
||
|
53630
|
53630
53630-28110 Cable Assy, Hood Lock Control[01.2006 - 12.2008] ACR50,GSR50..RHD |
53630-28110 |
US $22.51 |
||
|
5348312070
|
5348312070
53483-12070 Protector, Hood Support Rod |
53483-12070 |
US $2.62 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9095901460
|
9095901460
90959-01460 Clamp (For Fuel Lid Lock Control Cable) |
90959-01460 |
US $3.94 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
