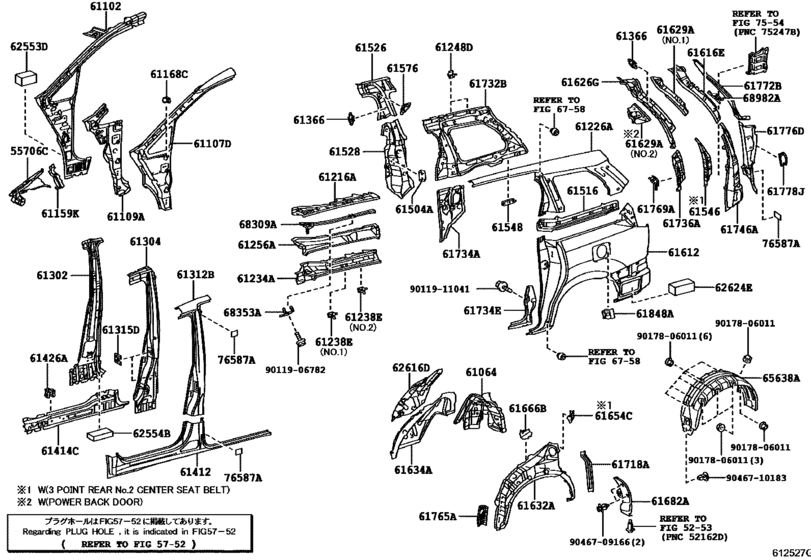

Side Member ([01.2006 - ] LH (0601- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55706C
|
55706C
55706-28060 Panel Sub-Assy, Cowl Top Side, Lh[01.2006 - 12.2008] ACR50,GSR50 |
55706-28060 |
US $33.20 |
||
|
61064
|
61064
61064-28110 Bracket, Sub-Assy, Rear Shock Absorber, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61064-28110 |
US $125.22 |
||
|
61102
|
61102
61014-28020 Panel Sub-Assy, Cowl Side, Lh[01.2006 - 01.2008] ACR50,GSR50 |
61014-28020 |
US $387.30 |
||
| replacement | |||||
|
61102
|
61102
61014-28021 Panel Sub-Assy, Cowl Side, Lh[01.2006 - 01.2008] ACR50,GSR50 |
61014-28021 |
US $243.15 |
||
|
61102
|
61102
61014-28021 Panel Sub-Assy, Cowl Side, Lh[02.2008 - 12.2008] ACR50,GSR50 |
61014-28021 |
US $243.15 |
||
|
61107D
|
61107D
61107-28040 Pillar Sub-Assy, Front, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61107-28040 |
US $97.55 |
||
|
61109A
|
61109A
61109-28030 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[01.2006 - 12.2008] ACR50,GSR50 |
61109-28030 |
US $141.23 |
||
|
61159K
|
61159K
61159-28010 Extension, Front Piller, Lower Lh[01.2006 - 12.2008] ACR50,GSR50 |
61159-28010 |
US $16.60 |
||
|
61168C
|
61168C
61168-44010 Bracket, No.6 Pillar Outer[01.2006 - 12.2008] ACR50,GSR50 |
61168-44010 |
US $4.12 |
||
|
61216A
|
61216A
61216-28040 Rail, Roof Side, Outer Rear Lh[01.2006 - 12.2008] ACR50,GSR50 |
61216-28040 |
US $56.93 |
||
|
61226A
|
61226A
61226-28010 Rail, Roof Side Outer Upper No.1, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61226-28010 |
US $244.61 |
||
|
61234A
|
61234A
61234-28130 Rail, Roof Side, Inner No.2 Lh[01.2006 - 12.2008] ACR50,GSR50 |
61234-28130 |
US $85.90 |
||
|
61238E
|
61238E
61238-28020 Bracket, Assist Grip, No.2[01.2006 - 12.2008] ACR50,GSR50 NO.1 |
61238-28020 |
US $4.80 |
||
|
61238E
|
61238E
61238-28030 Bracket, Assist Grip, No.2[01.2006 - 12.2008] ACR50,GSR50 NO.2 |
61238-28030 |
US $4.80 |
||
|
61248D
|
61248D
61248-28010 Bracket, Assist Grip, Lh[01.2006 - 12.2008] ACR50,GSR50 FRONT |
61248-28010 |
US $5.82 |
||
|
61248D
|
61248D
61248-28020 Bracket, Assist Grip, Lh[01.2006 - 12.2008] ACR50,GSR50 REAR |
61248-28020 |
US $5.82 |
||
|
61256A
|
61256A
61256-28030 Plate, Roof Side Rail, Outer Lh[01.2006 - 12.2008] ACR50,GSR50 |
61256-28030 |
US $60.13 |
||
|
61302
|
61302
61302-28200 Pillar Sub-Assy, Center Body, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61302-28200 |
US $184.91 |
||
|
61304
|
61304
61304-28020 Reinforce Sub-Assy, Center Body Pillar, Upper Lh[01.2006 - 01.2008] ACR50,GSR50 |
61304-28020 |
US $352.35 |
||
|
61312B
|
61312B
61312-28130 Pillar, Center Body, Outer Lh[01.2006 - 12.2008] ACR50,GSR50 |
61312-28130 |
US $171.81 |
||
|
61315D
|
61315D
61315-48010 Retainer, Door Lock Striker[01.2006 - 01.2008] ACR50,GSR50 |
61315-48010 |
US $4.69 |
||
|
61366
|
61366
61365-60040 Reinforcement, Belt Anchor To Center Pillar[01.2006 - 12.2008] ACR50,GSR50 |
61365-60040 |
US $5.97 |
||
|
61412
|
61412
61412-28060 Panel, Rocker, Outer Lh[01.2006 - 12.2008] ACR50,GSR50 |
61412-28060 |
US $315.20 |
||
|
61414C
|
61414C
61414-28040 Reinforcement, Rocker Panel, No.2 Lh[01.2006 - 01.2008] ACR50,GSR50 |
61414-28040 |
US $107.74 |
||
|
61426A
|
61426A
61425-28010 Reinforcement, Rocker Panel, No.4 Rh[01.2006 - 01.2008] ACR50,GSR50 |
61425-28010 |
US $19.22 |
||
| replacement | |||||
|
61426A
|
61426A
61425-28011 Reinforcement, Rocker Panel, No.4 Rh[01.2006 - 01.2008] ACR50,GSR50 |
61425-28011 |
US $11.94 |
||
|
61426A
|
61426A
61425-28011 Reinforcement, Rocker Panel, No.4 Rh[02.2008 - 12.2008] ACR50,GSR50 |
61425-28011 |
US $11.94 |
||
|
61504A
|
61504A
61503-28100 Reinforce Sub-Assy, Slide Door Lock Striker, Rh[01.2006 - 12.2008] ACR50,GSR50 |
61503-28100 |
US $12.38 |
||
|
61516
|
61516
61516-28040 Extension, Quarter Lock Pillar, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61516-28040 |
US $48.92 |
||
|
61526
|
61526
61526-28030 Reinforcement, Quarter Lock Piller, Upper Lh[01.2006 - 12.2008] ACR50,GSR50 |
61526-28030 |
US $59.55 |
||
|
61528
|
61528
61528-28030 Reinforcement, Quarter Lock Piller, Lower Lh[01.2006 - 12.2008] ACR50,GSR50 |
61528-28030 |
US $60.13 |
||
|
61546
|
61546
61546-28010 Panel Sub-Assy, Cab Rear Pillar, Inner Lh[01.2006 - 12.2008] ACR50,GSR50 |
61546-28010 |
US $35.53 |
||
|
61548
|
61548
61548-28010 Reinforcement, Quarter Pillar, Inner Lh[01.2006 - 12.2008] ACR50,GSR50 |
61548-28010 |
US $6.26 |
||
|
61576
|
61576
61576-28010 Plate, Cab Rear Pillar, Upper Lh[01.2006 - 12.2008] ACR50,GSR50 |
61576-28010 |
US $7.28 |
||
|
61612
|
61612
61602-28870 Panel, Quarter, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61602-28870 |
US $602.78 |
||
| replacement | |||||
|
61612
|
61612
61602-28871 Panel, Quarter, LhQUARTER, LH [01.2006 - 12.2008] ACR50,GSR50 |
61602-28871 |
US $684.84 |
||
|
61612
|
61612
61602-28871 Panel, Quarter, LhQUARTER, LH [04.2009 - 05.2012] ACR50..ARL;GSR50..RHD |
61602-28871 |
US $684.84 |
||
|
61616E
|
61616E
61616-28070 Reinforcement, Quarter Panel, Outer Lh[01.2006 - 12.2008] ACR50,GSR50 |
61616-28070 |
US $52.42 |
||
|
61626G
|
61626G
61626-28090 Extension, Quarter Panel, Rear Lh[01.2006 - 12.2008] ACR50,GSR50 |
61626-28090 |
US $69.60 |
||
|
61629A
|
61629A
61629-28030 Reinforcement, Quarter Panel, Lh[01.2006 - 12.2008] ACR50,GSR50 NO.1; ACR50,GSR50..LHD..GL SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD),NO.1 |
61629-28030 |
US $46.16 |
||
|
61632A
|
61632A
61632-28060 Panel, Quarter Wheel House, Outer Lh[01.2006 - 12.2008] ACR50,GSR50 |
61632-28060 |
US $99.01 |
||
|
61634A
|
61634A
61634-28080 Panel, Quarter Wheel House, Inner Lh[01.2006 - 12.2008] ACR50,GSR50 |
61634-28080 |
US $99.01 |
||
|
61654C
|
61654C
61654-28010 Bracket, Deck Side Trim, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61654-28010 |
US $8.30 |
||
|
61666B
|
61666B
61666-28030 Reinforce, Seat Belt Anchorage To Quarter Wheel House, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61666-28030 |
US $9.76 |
||
|
61682A
|
61682A
61682-28070 Extension, Rear Wheel Opening, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61682-28070 |
from US $46.25 |
||
|
61718A
|
61718A
61718-28030 Reinforcement, Quarter Panel Extension, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61718-28030 |
US $13.40 |
||
|
61732B
|
61732B
61732-28070 Panel, Roof Side, Inner Lh[01.2006 - 12.2008] ACR50,GSR50 |
61732-28070 |
US $103.38 |
||
|
61734A
|
61734A
61734-28030 Panel, Roof Side, Inner Front Lh[01.2006 - 12.2008] ACR50,GSR50 |
61734-28030 |
US $47.47 |
||
|
61734E
|
61734E
61734-28040 Panel, Roof Side, Inner Front Lh, No.2[01.2006 - 12.2008] ACR50,GSR50 |
61734-28040 |
US $47.47 |
||
|
61736A
|
61736A
61736-28040 Panel, Roof Side, Inner Rear Lh[01.2006 - 12.2008] ACR50,GSR50 |
61736-28040 |
US $19.95 |
||
|
61746A
|
61746A
61746-28070 Reinforcement, Back Door Opening, Lower Lh[01.2006 - 12.2008] ACR50,GSR50 |
61746-28070 |
US $123 |
||
|
61765A
|
61765A
61765-28090 Reinforcement, Seat Belt Anchor, No.2 Lh[01.2006 - 12.2008] ACR50,GSR50 |
61765-28090 |
US $23.73 |
||
|
61769A
|
61769A
61769-28030 Reinforcement, Seat Belt Anchor, No.2 Lh[01.2006 - 12.2008] ACR50,GSR50 |
61769-28030 |
US $12.38 |
||
|
61772B
|
61772B
61772-28060 Frame, Back Door Opening Upper Corner, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61772-28060 |
US $42.95 |
||
|
61776D
|
61776D
61776-28110 Frame, Back Door Opening Side, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61776-28110 |
US $61.32 |
||
|
61778J
|
61778J
61777-28030 Retainer, Back Door Side Stopper, Rh[01.2006 - 12.2008] ACR50,GSR50 |
61777-28030 |
US $7.35 |
||
|
61848A
|
61848A
61848-30070 Retainer, Quarter Panel, Lh[01.2006 - 12.2008] ACR50,GSR50 |
61848-30070 |
US $5.38 |
||
|
62553D
|
62553D
62939-28020 Pad, Pillar, No.3[12.2013 - 05.2016] ACR50;GSR50..ARL,GCC;GSR50..LHD..GEN |
62939-28020 |
US $3.03 |
||
|
62553D
|
62553D
62939-32020 Pad, Cowl Side Silencer[01.2006 - 12.2008] ACR50,GSR50 |
62939-32020 |
US $6.70 |
||
|
62554B
|
62554B
62554-52010 Pad, Cowl Side Silencer, No.2[01.2006 - 12.2008] ACR50,GSR50 |
62554-52010 |
US $6.60 |
||
|
62616D
|
62616D
62604-28400 Cover, Quarter Wheel House, Inner Lh[01.2006 - 12.2008] ACR50,GSR50 |
62604-28400 |
US $49.50 |
||
|
62624E
|
62624E
62624-28010 Pad, Quarter Wheel House, Inner Rear Lh[01.2006 - 12.2008] ACR50,GSR50 |
62624-28010 |
US $36.46 |
||
|
62624E
|
62624E
62624-28020 Pad, Quarter Wheel House, Inner Rear Lh[11.2010 - 05.2012] ACR50..ARL;GSR50..RHD |
62624-28020 |
US $21.34 |
||
|
65638A
|
65638A
65638-28011 Liner, Rear Wheel House, Lh[09.2006 - 12.2008] ACR50,GSR50 |
65638-28011 |
US $83.64 |
||
|
68309A
|
68309A
68309-28050 Rail Sub-Assy, Slide Door, Upper Lh[01.2006 - 12.2008] ACR50,GSR50 |
68309-28050 |
US $25.04 |
||
|
68353A
|
68353A
68353-28020 Plate, Slide Door Rail Protector[01.2006 - 12.2008] ACR50,GSR50 |
68353-28020 |
US $2.48 |
||
|
68982A
|
68982A
68982-28020 Retainer, Back Door Stay, Lh[01.2006 - 12.2008] ACR50,GSR50 |
68982-28020 |
US $12.81 |
||
|
76587A
|
76587A
76587-28030 Protector, Center Pillar Outer[01.2006 - 12.2008] ACR50,GSR50 |
76587-28030 |
US $7.71 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.66 |
||
|
9011911041
|
9011911041
90119-11041 New Genuine Part |
90119-11041 |
US $1.60 |
||
|
9017806011
|
9017806011
90178-06011 NUT FLANGE |
90178-06011 |
from US $0.74 |
||
|
9046709166
|
9046709166
90467-09166 CLIP |
90467-09166 |
from US $1.17 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.84 |
||
