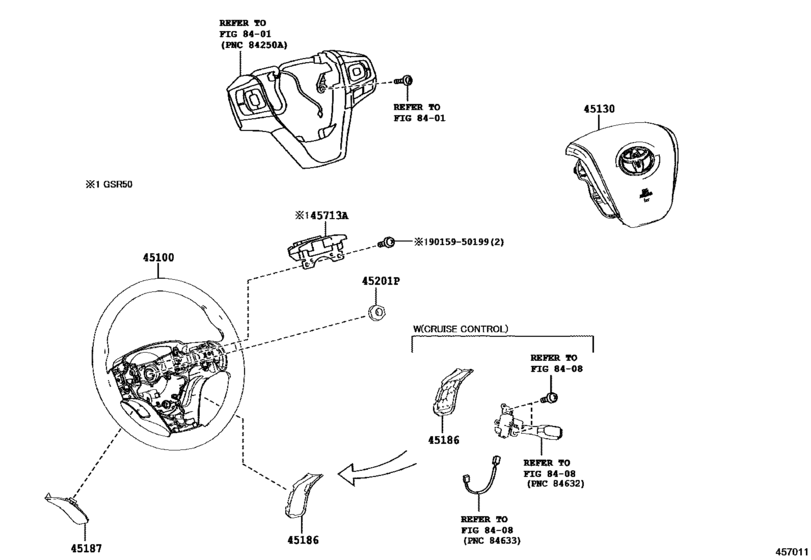

Steering Wheel ([05.2016 - ] 3-SPOKE (1605- )RHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-28390-A0 Wheel Assy, Steering[04.2012 - 05.2016] GSR50..DLX;ACR50..DLX..GCC 4-SPOKE,URETHANE,SHELL,TRIM0#; ACR50..DLX..GEN 4-SPOKE,URETHANE,SINGAPORE SPEC,SHELL,TRIM0# |
45100-28390-A0 |
US $235.87 |
||
|
45100
|
45100
45100-28390-B0 Wheel Assy, SteeringSTEERING [01.2006 - 12.2008] ACR50,GSR50..RHD..DLX 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
45100-28390-B0 |
US $375.65 |
||
| replacement | |||||
|
45100
|
45100
45100-28390-C0
Wheel Assy, Steering
[01.2006 - 12.2008] ACR50,GSR50..RHD..DLX 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
45100-28390-C0 |
— | ||
|
45100
|
45100
45100-28390-E0 Wheel Assy, Steering[01.2006 - 12.2008] ACR50,GSR50..DLX 4-SPOKE,URETHANE,GREGE,TRIM4# |
45100-28390-E0 |
US $313.04 |
||
|
45100
|
45100
45100-28410-E2 Wheel Assy, Steering[01.2006 - 12.2008] ACR50,GSR50..GL 4-SPOKE,WOOD&LEATHER,GREGE,TRIM4#; GSR50..DLX;ACR50..LHD..DLX 4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & WOOD & LEATHER,G REGE,TRIM4#; ACR50..LHD..DLX 4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-WITH&STEE |
45100-28410-E2 |
US $811.84 |
||
|
45100
|
45100
45100-28411-E4 Wheel Assy, SteeringSTEERING [12.2008 - 05.2012] GSR50..RHD..GL 4-SPOKE,WOOD&LEATHER,YELLOW BROWN,TRIM4#; GSR50..DLX 4-SPOKE,WOOD&LEATHER,STEERING WHEEL-4-SPOKE & WOOD & LEATHER,YELLOW BROWN,TRIM4# |
45100-28411-E4 |
US $714.90 |
||
|
45100
|
45100
45100-28490-C0 Wheel Assy, Steering[05.2016 -] ACR50,GSR50..DLX..ARL 3-SPOKE,URETHANE,BLACK,TRIM2#; ACR50..DLX..GEN 3-SPOKE,URETHANE,SINGAPORE SPEC,BLACK,TRIM2# |
45100-28490-C0 |
US $235.87 |
||
|
45130
|
45130
45130-28550-A0 Button Assy, Horn[04.2012 - 05.2016] GSR50;ACR50..(DLX,GL)..(GCC,GEN) SHELL,TRIM0# |
45130-28550-A0 |
from US $655.20 |
||
|
45130
|
45130
45130-28550-B0 Button Assy, Horn[01.2006 - 12.2008] ACR50,GSR50..RHD..DLX DK.GRAY,TRIM1# |
45130-28550-B0 |
US $1,038.13 |
||
| replacement | |||||
|
45130
|
45130
45130-28550-C0 Button Assy, HornHORN [01.2006 - 12.2008] ACR50,GSR50..RHD..DLX DK.GRAY,TRIM1# |
45130-28550-C0 |
US $655.20 |
||
|
45130
|
45130
45130-28550-E0 Button Assy, Horn[01.2006 - 12.2008] ACR50,GSR50 GREGE,TRIM4# |
45130-28550-E0 |
US $864.86 |
||
|
45130
|
45130
45130-28620-C0 Button Assy, Horn[05.2016 -] ACR50,GSR50..RHD BLACK,TRIM2# |
45130-28620-C0 |
US $655.20 |
||
|
45186
|
45186
45186-28040-A0 Cover, Steering Wheel, Lower No.2[04.2012 - 05.2016] GSR50;ACR50..DLX..GEN;ACR50..LHD..CVT SHELL,TRIM0#; ACR50..RHD..GL;ACR50..DLX..GCC;ACR50..LHD..4FC..GEN CRUISE CONTROL-WITH,SHELL,TRIM0# |
45186-28040-A0 |
US $4.02 |
||
|
45186
|
45186
45186-28040-B0 Cover, Steering Wheel, Lower No.2STEERING WHEEL, LOWER NO.2 [01.2006 - 12.2008] ACR50..RHD..DLX..GEN CRUISE CONTROL-WITH,DK.GRAY,TRIM1#; ACR50,GSR50..DLX..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE,DK.GRAY,TRIM1# |
45186-28040-B0 |
US $4.66 |
||
|
45186
|
45186
45186-28040-E0 Cover, Steering Wheel, Lower No.2[01.2006 - 12.2008] GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN CRUISE CONTROL-WITH,GREGE,TRIM4#; ACR50..LHD..DLX..GEN;ACR50,GSR50..DLX..(ARL,GCC) CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE,GREGE,TRIM4#; ACR50..GCC;GSR50..ARL,GCC;ACR50..LHD. |
45186-28040-E0 |
US $4.40 |
||
|
45186
|
45186
45186-28050-B0 Cover, Steering Wheel, Lower No.2[01.2006 - 12.2008] ACR50,GSR50..RHD..DLX DK.GRAY,TRIM1# |
45186-28050-B0 |
US $5.97 |
||
| replacement | |||||
|
45186
|
45186
45186-28050-C0 Cover, Steering Wheel, Lower No.2STEERING WHEEL, LOWER NO.2 [01.2006 - 12.2008] ACR50,GSR50..RHD..DLX DK.GRAY,TRIM1# |
45186-28050-C0 |
US $4.95 |
||
|
45186
|
45186
45186-28050-E0 Cover, Steering Wheel, Lower No.2[01.2006 - 12.2008] ACR50,GSR50 GREGE,TRIM4# |
45186-28050-E0 |
US $6.29 |
||
|
45186
|
45186
45186-48040-C0 Cover, Steering Wheel, Lower No.2[05.2016 -] GSR50..ARL;ACR50..CVT..(AERAS,DLX) BLACK,TRIM2#; ACR50..RHD..GL CRUISE CONTROL-WITH,BLACK,TRIM2# |
45186-48040-C0 |
from US $1.81 |
||
|
45187
|
45187
45187-28020-A0 Cover, Steering Wheel, Lower No.3[04.2012 - 05.2016] GSR50;ACR50..(DLX,GL)..(GCC,GEN) SHELL,TRIM0# |
45187-28020-A0 |
US $3.64 |
||
|
45187
|
45187
45187-28020-B0 Cover, Steering Wheel, Lower No.3[01.2006 - 12.2008] ACR50,GSR50..RHD..DLX DK.GRAY,TRIM1# |
45187-28020-B0 |
US $5.97 |
||
| replacement | |||||
|
45187
|
45187
45187-28020-C0 Cover, Steering Wheel, Lower No.3STEERING WHEEL, LOWER NO.3 [01.2006 - 12.2008] ACR50,GSR50..RHD..DLX DK.GRAY,TRIM1# |
45187-28020-C0 |
US $3.64 |
||
|
45187
|
45187
45187-28020-E0 Cover, Steering Wheel, Lower No.3[01.2006 - 12.2008] ACR50,GSR50 GREGE,TRIM4# |
45187-28020-E0 |
US $4.95 |
||
|
45187
|
45187
45187-48040-C0 Cover, Steering Wheel, Lower No.3[05.2016 -] ACR50,GSR50..RHD BLACK,TRIM2# |
45187-48040-C0 |
US $3.94 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[01.2006 - 12.2008] ACR50,GSR50 |
90179-12071 |
from US $1.52 |
||
|
45713A
|
45713A
45713-12160 Damper, Steering Shake[05.2016 -] GSR50..ARL |
45713-12160 |
US $24.81 |
||
|
45713A
|
45713A
45713-28050 Damper, Steering Shake[11.2006 - 12.2008] GSR50 |
45713-28050 |
US $19.36 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.53 |
||
