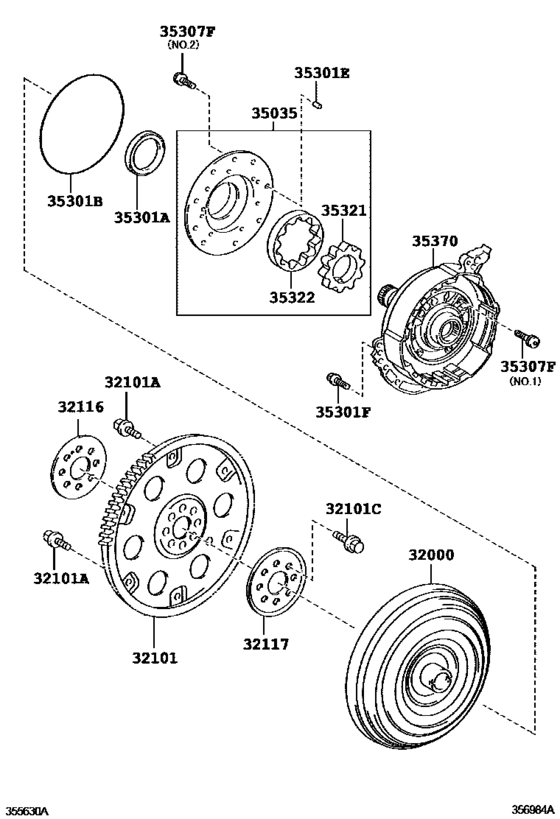

Torque Converter, Front Oil Pump & Chain (Atm) ([11.2006 - ] U660E (0611- )GSR50) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-33131 Converter Assy, Torque[11.2006 - 12.2008] GSR50 |
32000-33131 |
US $1,863.68 |
||
| replacement | |||||
|
32000
|
32000
32000-33132 Converter Assy, TorqueTORQUE [11.2006 - 12.2008] GSR50 |
32000-33132 |
from US $1,339.71 |
||
|
32000
|
32000
32000-33132 Converter Assy, TorqueTORQUE [12.2008 - 05.2009] GSR50 |
32000-33132 |
from US $1,339.71 |
||
|
32000
|
32000
32000-33133 Converter Assy, TorqueTORQUE [05.2009 - 03.2011] GSR50 |
32000-33133 |
US $1,543.36 |
||
| replacement | |||||
|
32000
|
32000
32000-33132 Converter Assy, TorqueTORQUE [05.2009 - 03.2011] GSR50 |
32000-33132 |
from US $1,339.71 |
||
|
32101
|
32101
32101-48010 Gear Sub-Assy, Drive Plate & Ring[11.2006 - 12.2008] GSR50 |
32101-48010 |
from US $174.72 |
||
|
32101A
|
32101A
90109-09001 Bolt(For Drive Plate & Torque Converter Setting)[01.2006 - 12.2008] ACR50,GSR50 *9-1.25PX12.4-7.3,BLACK |
90109-09001 |
from US $0.78 |
||
|
32101A
|
32101A
90119-09025 Bolt(For Drive Plate & Torque Converter Setting)[01.2006 - 12.2008] ACR50,GSR50 *9-1.25PX12.4-8.4,SILVER WHITE |
90119-09025 |
from US $0.78 |
||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[11.2006 - 12.2008] GSR50 *10-1.25PX18-13 |
90105-10048 |
from US $1.11 |
||
|
32101C
|
32101C
90105-A0022
Bolt, Hexagon(For Drive Plate Setting)
[12.2008 - 03.2010] GSR50 *10-1.25PX18-13,(L) |
90105-A0022 |
— | ||
| replacement | |||||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[12.2008 - 03.2010] GSR50 *10-1.25PX18-13,(L) |
90105-10048 |
from US $1.11 |
||
|
32116
|
32116
32116-32020 Spacer, Drive Plate, Front[11.2006 - 12.2008] GSR50 |
32116-32020 |
US $14.85 |
||
|
32117
|
32117
32117-32020 Spacer, Drive Plate, Rear[11.2006 - 12.2008] GSR50 |
32117-32020 |
US $10.31 |
||
|
35035
|
35035
35035-33030 Body Sub-Assy, Fr Oil Pump & Gear[11.2006 - 12.2008] GSR50 |
35035-33030 |
US $266.45 |
||
| replacement | |||||
|
35035
|
35035
35035-33031 Body Sub-Assy, Fr Oil Pump & Gear[11.2006 - 12.2008] GSR50 |
35035-33031 |
from US $200.93 |
||
|
35035
|
35035
35035-33031 Body Sub-Assy, Fr Oil Pump & Gear[08.2011 - 05.2012] GSR50..RHD |
35035-33031 |
from US $200.93 |
||
|
35301A
|
35301A
90311-43010 Seal, Oil (For Front Oil Pump)[11.2006 - 12.2008] GSR50 |
90311-43010 |
from US $8.42 |
||
|
35301B
|
35301B
35697-33010 Ring, O (For Front Oil Pump Body)[05.2011 - 05.2012] GSR50..RHD |
35697-33010 |
from US $5.02 |
||
|
35301B
|
35301B
90301-99158 Ring, O (For Front Oil Pump Body)[11.2006 - 12.2008] GSR50 |
90301-99158 |
from US $5.53 |
||
|
35301E
|
35301E
90250-08040 Pin, Straight (For Front Oil Pump)[11.2006 - 12.2008] GSR50 |
90250-08040 |
US $1.16 |
||
|
35301F
|
35301F
91551-80835 Bolt (For Front Oil Pump Setting)[11.2006 - 12.2008] GSR50 *8-1.25PX35-22 |
91551-80835 |
from US $0.80 |
||
|
35307F
|
35307F
90148-60064 Bolt (For Stator Shaft)[11.2006 - 12.2008] GSR50 NO.1 |
90148-60064 |
US $0.73 |
||
|
35307F
|
35307F
90148-60065 Bolt (For Stator Shaft)[11.2006 - 12.2008] GSR50 NO.2 |
90148-60065 |
US $0.73 |
||
|
35321
|
35321
35321-33110 Gear, Front Oil Pump Drive[11.2006 - 12.2008] GSR50 T=11.567,MARK 1 |
35321-33110 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-33111 Gear, Front Oil Pump Drive[11.2006 - 12.2008] GSR50 T=11.567,MARK 1 |
35321-33111 |
US $30.31 |
||
|
35321
|
35321
35321-33111 Gear, Front Oil Pump Drive[10.2010 - 05.2012] GSR50..RHD T=11.567,MARK 1 |
35321-33111 |
US $30.31 |
||
|
35321
|
35321
35321-33120 Gear, Front Oil Pump Drive[11.2006 - 12.2008] GSR50 T=11.567,MARK 2 |
35321-33120 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-33121 Gear, Front Oil Pump Drive[11.2006 - 12.2008] GSR50 T=11.567,MARK 2 |
35321-33121 |
US $32.61 |
||
|
35321
|
35321
35321-33121 Gear, Front Oil Pump Drive[10.2010 - 05.2012] GSR50..RHD T=11.567,MARK 2 |
35321-33121 |
US $32.61 |
||
|
35321
|
35321
35321-33130 Gear, Front Oil Pump Drive[11.2006 - 12.2008] GSR50 T=11.567,MARK 3 |
35321-33130 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-33131 Gear, Front Oil Pump Drive[11.2006 - 12.2008] GSR50 T=11.567,MARK 3 |
35321-33131 |
US $32.61 |
||
|
35321
|
35321
35321-33131 Gear, Front Oil Pump Drive[10.2010 - 05.2012] GSR50..RHD T=11.567,MARK 3 |
35321-33131 |
US $32.61 |
||
|
35321
|
35321
35321-33140 Gear, Front Oil Pump Drive[11.2006 - 12.2008] GSR50 T=11.567,MARK 4 |
35321-33140 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-33141 Gear, Front Oil Pump Drive[11.2006 - 12.2008] GSR50 T=11.567,MARK 4 |
35321-33141 |
US $32.61 |
||
|
35321
|
35321
35321-33141 Gear, Front Oil Pump Drive[10.2010 - 05.2012] GSR50..RHD T=11.567,MARK 4 |
35321-33141 |
US $32.61 |
||
|
35321
|
35321
35321-33150 Gear, Front Oil Pump Drive[11.2006 - 12.2008] GSR50 T=11.567,MARK 5 |
35321-33150 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-33151
Gear, Front Oil Pump Drive
[11.2006 - 12.2008] GSR50 T=11.567,MARK 5 |
35321-33151 |
— | ||
|
35321
|
35321
35321-33151
Gear, Front Oil Pump Drive
[10.2010 - 05.2012] GSR50..RHD T=11.567,MARK 5 |
35321-33151 |
— | ||
|
35322
|
35322
35322-33110 Gear, Front Oil Pump Driven[11.2006 - 12.2008] GSR50 T=11.567,MARK 1 |
35322-33110 |
US $28.30 |
||
|
35322
|
35322
35322-33120 Gear, Front Oil Pump Driven[11.2006 - 12.2008] GSR50 T=11.567,MARK 2 |
35322-33120 |
US $30.43 |
||
|
35322
|
35322
35322-33130 Gear, Front Oil Pump Driven[11.2006 - 12.2008] GSR50 T=11.567,MARK 3 |
35322-33130 |
US $30.43 |
||
|
35322
|
35322
35322-33140 Gear, Front Oil Pump Driven[11.2006 - 12.2008] GSR50 T=11.567,MARK 4 |
35322-33140 |
US $30.43 |
||
|
35322
|
35322
35322-33150 Gear, Front Oil Pump Driven[11.2006 - 12.2008] GSR50 T=11.567,MARK 5 |
35322-33150 |
US $30.43 |
||
|
35370
|
35370
35370-33031 Shaft Assy, Stator[11.2006 - 12.2008] GSR50 |
35370-33031 |
US $214.91 |
||
