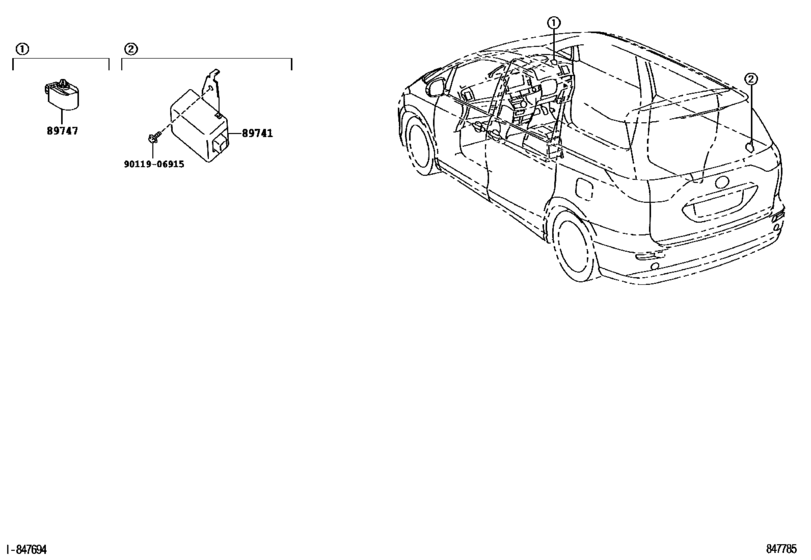

Wireless Door Lock ([01.2006 - 04.2012] W/O(SMART ENTRY) (0601-1204)) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89741
|
89741
89740-28031
Receiver, Door Control
[04.2012 - 04.2016] GSR50..ARL;ACR50..LHD..CVT;ACR50..CVT..ARL;GSR50..LHD..GEN; ACR50..RHD..4FC..GEN INDONESIA SPEC; ACR50..RHD..4FC..GEN INDONESIA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
89740-28031 |
— | ||
| replacement | |||||
|
89741
|
89741
89740-28032
Receiver, Door Control
[04.2012 - 04.2016] GSR50..ARL;ACR50..LHD..CVT;ACR50..CVT..ARL;GSR50..LHD..GEN; ACR50..RHD..4FC..GEN INDONESIA SPEC; ACR50..RHD..4FC..GEN INDONESIA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
89740-28032 |
— | ||
|
89741
|
89741
89740-28032
Receiver, Door Control
[05.2016 -] GSR50;ACR50..ARL;ACR50..LHD..CVT; ACR50..RHD..4FC INDONESIA SPEC; ACR50..RHD..4FC INDONESIA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
89740-28032 |
— | ||
|
89741
|
89741
89741-28250
Receiver, Door Control
[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN EXCEPT CHINA SPEC; ACR50..LHD..GL..GEN EXCEPT CHINA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH); ACR50..LHD..GL..GEN PHILIPPINES SPEC; ACR50..LHD..GL..GEN PHILI |
89741-28250 |
— | ||
| replacement | |||||
|
89741
|
89741
89741-28253
Receiver, Door Control
[01.2006 - 12.2008] ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN EXCEPT CHINA SPEC; ACR50..LHD..GL..GEN EXCEPT CHINA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH); ACR50..LHD..GL..GEN PHILIPPINES SPEC; ACR50..LHD..GL..GEN PHILI |
89741-28253 |
— | ||
|
89741
|
89741
89741-28270
Receiver, Door Control
[12.2008 - 12.2009] ACR50,GSR50..ARL; ACR50..RHD..GEN MALAYSIA SPEC; ACR50..RHD..GEN MALAYSIA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH); ACR50..LHD..DLX..GEN TAIWAN SPEC; ACR50..LHD..GL..GEN TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALO |
89741-28270 |
— | ||
| replacement | |||||
|
89741
|
89741
89741-28271
Receiver, Door Control
[12.2008 - 12.2009] ACR50,GSR50..ARL; ACR50..RHD..GEN MALAYSIA SPEC; ACR50..RHD..GEN MALAYSIA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH); ACR50..LHD..DLX..GEN TAIWAN SPEC; ACR50..LHD..GL..GEN TAIWAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALO |
89741-28271 |
— | ||
|
89741
|
89741
89741-28271
Receiver, Door Control
[12.2009 - 05.2012] ACR50,GSR50..ARL |
89741-28271 |
— | ||
|
89747
|
89747
89747-52010 Buzzer, Wireless Door Lock[04.2012 - 05.2016] ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
89747-52010 |
from US $29.60 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
