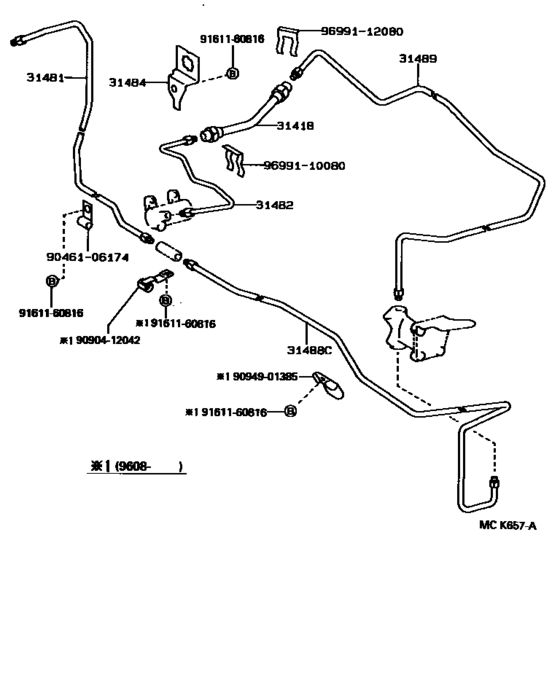

Clutch Pedal & Flexible Hose ([05.1990 - ] (9005- )RHD..MTM) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1991
- Sales region
- Europe
- Frame
- TCR20
- grade
- DX
- ENGINE
- 2TZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 05.1990
- To
- 08.1991
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90931-01021 Hose, Clutch, No.1CLUTCH [05.1990 - 12.1999] TCR1#,2#..MTM |
90931-01021 |
US $22.57 |
||
|
31481
|
31481
31481-28140 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [05.1990 - 12.1999] TCR1#,2#..RHD..MTM |
31481-28140 |
US $18.78 |
||
|
31482
|
31482
31482-28080 Tube, Clutch Release Cylinder To Flexible HoseCLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE [05.1990 - 12.1999] TCR1#,2#..MTM |
31482-28080 |
US $7.13 |
||
|
31484
|
31484
31484-28060 Bracket, Flexible Hose(For Clutch)FLEXIBLE HOSE(FOR CLUTCH) [05.1990 - 12.1999] TCR1#,2#..MTM |
31484-28060 |
US $6.41 |
||
|
31488C
|
31488C
31488-28020 Tube, Flexible Hose To Flexible HoseFLEXIBLE HOSE TO FLEXIBLE HOSE [05.1990 - 08.1991] TCR1#,2#..RHD..MTM |
31488-28020 |
US $25.63 |
||
|
31489
|
31489
31489-28150 Tube, Tube Connector To Flexible HoseTUBE CONNECTOR TO FLEXIBLE HOSE [05.1990 - 08.1991] TCR1#,2#..MTM |
31489-28150 |
US $24.32 |
||
|
9046106174
|
9046106174
90461-06174 New Genuine Part |
90461-06174 |
US $1.31 |
||
|
9090412042
|
9090412042
90904-12042 New Genuine Part |
90904-12042 |
US $11.79 |
||
|
9094901385
|
9094901385
90949-01385 New Genuine Part |
90949-01385 |
US $4.37 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
||
|
9699112080
|
9699112080
96991-12080 Clip |
96991-12080 |
US $2.15 |
||
