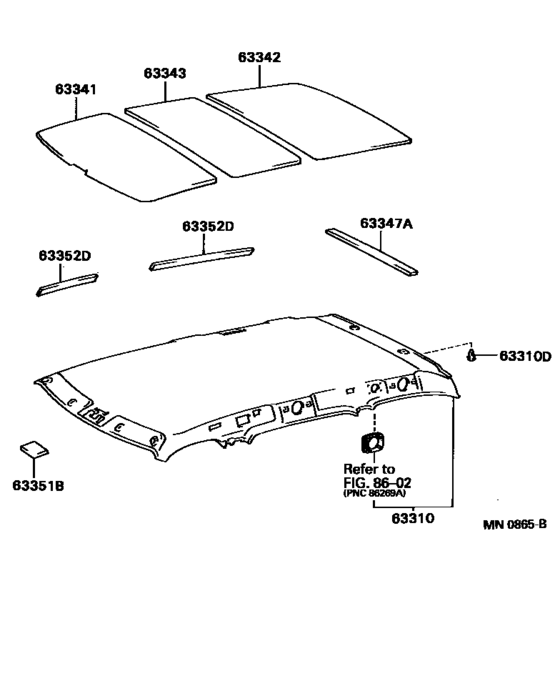

Roof Headlining & Silencer Pad ([01.1990 - ] (9001- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1991
- Sales region
- General
- Frame
- TCR20
- grade
- DX
- ENGINE
- 2TZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 05.1990
- To
- 08.1991
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63310
|
63310
63311-95D07-03 Headlining Assy, RoofROOF [05.1990 - 08.1991] TCR10,20..ARL LIGHT GRAY,TRIM1# |
63311-95D07-03 |
US $1,249.25 |
||
|
63310
|
63310
63311-95D19-03 Headlining Assy, RoofROOF [05.1990 - 08.1992] TCR1#,2#..RHD W(FRONT ROOM LAMP),LIGHT GRAY,TRIM1# |
63311-95D19-03 |
US $1,244.88 |
||
| replacement | |||||
|
63310
|
63310
63311-95D19-B2 Headlining Assy, RoofROOF [05.1990 - 08.1992] TCR1#,2#..RHD W(FRONT ROOM LAMP),LIGHT GRAY,TRIM1# |
63311-95D19-B2 |
US $1,244.88 |
||
|
63310D
|
63310D
90467-11021-13 Clip, Roof Headlining[05.1990 - 06.1990] TCR1#,2# LIGHT GRAY,TRIM1# |
90467-11021-13 |
US $4.08 |
||
| replacement | |||||
|
63310D
|
63310D
90467-11068-B8
Clip, Roof Headlining
[05.1990 - 06.1990] TCR1#,2# LIGHT GRAY,TRIM1# |
90467-11068-B8 |
— | ||
|
63310D
|
63310D
90467-11068-03 Clip, Roof Headlining[06.1990 - 08.1993] TCR1#,2# LIGHT GRAY,TRIM1# |
90467-11068-03 |
US $1.89 |
||
| replacement | |||||
|
63310D
|
63310D
90467-11068-B8
Clip, Roof Headlining
[06.1990 - 08.1993] TCR1#,2# LIGHT GRAY,TRIM1# |
90467-11068-B8 |
— | ||
|
63341
|
63341
63341-95D03 Pad, Roof Silencer, No.1[05.1990 - 12.1991] TCR1#,2# |
63341-95D03 |
US $20.09 |
||
| replacement | |||||
|
63341
|
63341
63341-28020 Pad, Roof Silencer, No.1[05.1990 - 12.1991] TCR1#,2# |
63341-28020 |
US $19.80 |
||
|
63342
|
63342
63342-95D01 Pad, Roof Silencer, No.2[05.1990 - 12.1991] TCR1#,2# |
63342-95D01 |
US $21.99 |
||
| replacement | |||||
|
63342
|
63342
63342-28010 Pad, Roof Silencer, No.2[05.1990 - 12.1991] TCR1#,2# |
63342-28010 |
US $19.80 |
||
|
63343
|
63343
63342-95D02 Pad, Roof Silencer, No.3[05.1990 - 12.1991] TCR1#,2# |
63342-95D02 |
US $13.54 |
||
| replacement | |||||
|
63343
|
63343
63342-28020 Pad, Roof Silencer, No.3[05.1990 - 12.1991] TCR1#,2# |
63342-28020 |
US $15.14 |
||
|
63347A
|
63347A
63347-95D00 Pad, Roof Silencer, No.7[05.1990 - 08.1995] TCR1#,2# |
63347-95D00 |
US $17.76 |
||
|
63351B
|
63351B
63351-28030 Pad, Roof Headlining[05.1990 - 06.1992] TCR1#,2# |
63351-28030 |
US $3.64 |
||
|
63352D
|
63352D
63351-28040 Pad, Roof Headlining, No.2[05.1990 - 06.1992] TCR1#,2# |
63351-28040 |
US $5.24 |
||
