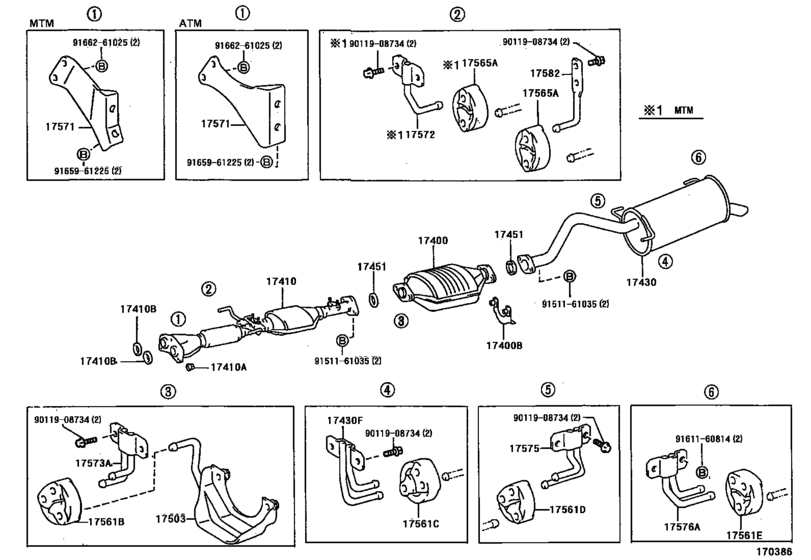

Exhaust Pipe ([05.1990 - 01.1994] W(CONVERTER) (9005-9401)2TZFE..LHD..W) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1999
- Sales region
- Europe
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- MTM
- DESTINATION
- W
- From
- 05.1990
- To
- 12.1999
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
17403-76060
Converter Assy, W/catalyst
[04.1996 - 08.1996] 2TZFE..TCR1#,2#..LHD..W |
17403-76060 |
— | ||
| replacement | |||||
|
17400
|
17400
17420-76020
Converter Assy, W/catalyst
[04.1996 - 08.1996] 2TZFE..TCR1#,2#..LHD..W |
17420-76020 |
— | ||
|
17400
|
17400
17420-76020
Converter Assy, W/catalyst
[08.1996 - 10.1998] 2TZFE..TCR1#,2#..LHD..W |
17420-76020 |
— | ||
|
17400
|
17400
18450-03080
Converter Assy, W/catalyst
[05.1994 - 04.1996] 2TZFE..TCR1#,2#..LHD..W (L) |
18450-03080 |
— | ||
|
17400
|
17400
18450-74210
Converter Assy, W/catalyst
[05.1990 - 01.1994] 2TZFE..TCR1#,2#..LHD..W |
18450-74210 |
— | ||
|
17400
|
17400
18450-74440
Converter Assy, W/catalyst
[01.1994 - 04.1996] 2TZFE..TCR1#,2#..LHD..W (J) |
18450-74440 |
— | ||
|
17400B
|
17400B
18495-76010 Retainer, Exhaust Pipe[05.1990 - 01.1994] 2TZFE..TCR1#,2#..LHD..W |
18495-76010 |
US $21.77 |
||
|
17410
|
17410
17410-76020 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1990 - 01.1994] 2TZFE..TCR1#,2#..W |
17410-76020 |
US $1,416.69 |
||
|
17410
|
17410
17410-76030 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1990 - 01.1994] 2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
17410-76030 |
US $1,587.04 |
||
|
17410
|
17410
17410-76150
Pipe Assy, Exhaust, Front
[01.1994 - 12.1994] 2TZFE..TCR1#,2#..W |
17410-76150 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-76152 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [01.1994 - 12.1994] 2TZFE..TCR1#,2#..W |
17410-76152 |
US $1,630.72 |
||
|
17410
|
17410
17410-76151
Pipe Assy, Exhaust, Front
[12.1994 - 07.1996] 2TZFE..TCR1#,2#..W |
17410-76151 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-76152 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [12.1994 - 07.1996] 2TZFE..TCR1#,2#..W |
17410-76152 |
US $1,630.72 |
||
|
17410
|
17410
17410-76152 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [07.1996 - 08.1996] 2TZFE..TCR1#,2#..W |
17410-76152 |
US $1,630.72 |
||
|
17410
|
17410
17410-76201
Pipe Assy, Exhaust, Front
[08.1996 - 01.1998] 2TZFE..TCR1#,2#..W |
17410-76201 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-76202 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1996 - 01.1998] 2TZFE..TCR1#,2#..W |
17410-76202 |
US $1,470.56 |
||
|
17410
|
17410
17410-76202 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [01.1998 - 12.1999] 2TZFE..TCR1#,2#..W |
17410-76202 |
US $1,470.56 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1990 - 12.1999] 2TZFE..TCR1#,2# |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1990 - 12.1999] 2TZFE..TCR1#,2# |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[05.1990 - 12.1999] 2TZFE..TCR1#,2# |
90917-06039 |
from US $2.26 |
||
|
17430
|
17430
17405-76070
Pipe Assy, Exhaust, Tail
[04.1996 - 08.1996] 2TZFE..TCR1#,2#..W |
17405-76070 |
— | ||
| replacement | |||||
|
17430
|
17430
17405-76072
Pipe Assy, Exhaust, Tail
[04.1996 - 08.1996] 2TZFE..TCR1#,2#..W |
17405-76072 |
— | ||
|
17430
|
17430
17405-76071
Pipe Assy, Exhaust, Tail
[08.1996 - 01.1998] 2TZFE..TCR1#,2#..W |
17405-76071 |
— | ||
| replacement | |||||
|
17430
|
17430
17405-76072
Pipe Assy, Exhaust, Tail
[08.1996 - 01.1998] 2TZFE..TCR1#,2#..W |
17405-76072 |
— | ||
|
17430
|
17430
17405-76072
Pipe Assy, Exhaust, Tail
[01.1998 - 12.1999] 2TZFE..TCR1#,2#..W |
17405-76072 |
— | ||
|
17430
|
17430
17430-76060
Pipe Assy, Exhaust, Tail
[05.1990 - 08.1993] 2TZFE..TCR1#,2#..W; 2TZFE..TCR11..LHD..MTM W/0(CONVERTER) |
17430-76060 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-76061 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.1990 - 08.1993] 2TZFE..TCR1#,2#..W; 2TZFE..TCR11..LHD..MTM W/0(CONVERTER) |
17430-76061 |
US $375.65 |
||
|
17430
|
17430
17430-76061 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1993 - 01.1994] 2TZFE..TCR1#,2#..W; 2TZFE..TCR11..LHD..MTM W/O(CONVERTER) |
17430-76061 |
US $375.65 |
||
|
17430
|
17430
17430-76070
Pipe Assy, Exhaust, Tail
[05.1990 - 08.1993] 2TZFE..TCR1#,2#..LHD W(CONVERTER) |
17430-76070 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-76071 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.1990 - 08.1993] 2TZFE..TCR1#,2#..LHD W(CONVERTER) |
17430-76071 |
US $375.65 |
||
|
17430
|
17430
17430-76071 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1993 - 01.1994] 2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
17430-76071 |
US $375.65 |
||
|
17430
|
17430
17430-76110 Pipe Assy, Exhaust, TailEXHAUST, TAIL [01.1994 - 04.1996] 2TZFE..TCR1#,2#..W |
17430-76110 |
US $372.74 |
||
|
17430
|
17430
17430-76120 Pipe Assy, Exhaust, TailEXHAUST, TAIL [01.1994 - 04.1996] 2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
17430-76120 |
US $372.74 |
||
|
17430F
|
17430F
17574-76030 Bracket, Exhaust Tail Pipe(For Center)[05.1990 - 04.1996] 2TZFE..TCR11,21 |
17574-76030 |
US $22.71 |
||
|
17451
|
17451
90917-06043
Gasket, Exhaust Pipe
[05.1990 - 08.1996] 2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
90917-06043 |
— | ||
| replacement | |||||
|
17451
|
17451
17451-52060 GASKET, EXHAUST PIPE[05.1990 - 08.1996] 2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
17451-52060 |
from US $4.72 |
||
|
17451
|
17451
90917-06057 Gasket, Exhaust Pipe, Center[05.1990 - 04.1996] 2TZFE..TCR1#,2# |
90917-06057 |
from US $4.72 |
||
|
17503
|
17503
17503-76010
Bracket Sub-Assy, Catalytic Converter, Rear
[05.1990 - 08.1991] 2TZFE..TCR1#,2# |
17503-76010 |
— | ||
|
17561B
|
17561B
17561-74110 SUPPORT, EXHAUST PIPE[05.1990 - 01.1994] 2TZFE..TCR1#,2# |
17561-74110 |
from US $10.35 |
||
|
17561C
|
17561C
17561-74110 SUPPORT, EXHAUST PIPE[05.1990 - 12.1999] 2TZFE..TCR1#,2# |
17561-74110 |
from US $10.35 |
||
|
17561D
|
17561D
17561-74110 SUPPORT, EXHAUST PIPE[05.1990 - 12.1999] 2TZFE..TCR1#,2# |
17561-74110 |
from US $10.35 |
||
|
17561E
|
17561E
17561-74110 SUPPORT, EXHAUST PIPE[05.1990 - 12.1999] 2TZFE..TCR1#,2# |
17561-74110 |
from US $10.35 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[08.1993 - 01.1994] 2TZFE..TCR1#,2#..MTM |
17565-11160 |
from US $8.42 |
||
|
17565A
|
17565A
17565-76030
Support, Exhaust Pipe, No.2
[05.1990 - 12.1991] 2TZFE..TCR1#,2# |
17565-76030 |
— | ||
|
17571
|
17571
17571-76050 Bracket, Exhaust Pipe Support, No.1[05.1990 - 01.1994] 2TZFE..TCR1#,2#..MTM |
17571-76050 |
US $24.46 |
||
|
17572
|
17572
17583-76010 Bracket, Exhaust Pipe No.1 Support[05.1990 - 12.1991] 2TZFE..TCR1#,2# |
17583-76010 |
US $20.09 |
||
|
17573A
|
17573A
17573-76030 Bracket, Exhaust Pipe Support, No.3[05.1990 - 01.1994] 2TZFE..TCR1#,2# |
17573-76030 |
US $20.68 |
||
|
17575
|
17575
17575-76020 Bracket, Exhaust Pipe Support, No.5[05.1990 - 04.1996] 2TZFE..TCR1#,2# |
17575-76020 |
US $20.68 |
||
|
17576A
|
17576A
17576-76030
Bracket, Exhaust Pipe Support, No.6
[05.1990 - 04.1996] 2TZFE..TCR1#,2# |
17576-76030 |
— | ||
|
17582
|
17582
17582-76010 Bracket, Catalytic Converter Support, Upper[05.1990 - 01.1994] 2TZFE..TCR1#,2# |
17582-76010 |
US $20.09 |
||
|
9011908734
|
9011908734
90119-08734 Bolt, W/washer(For Transmission Case Cover) |
90119-08734 |
US $1.89 |
||
| replacement | |||||
|
9011908734
|
9011908734
90119-08373 Bolt, W/washer(For Transmission Case Cover) |
90119-08373 |
US $2.51 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.94 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165961225
|
9165961225
91659-61225 BOLT |
91659-61225 |
US $3.76 |
||
|
9166261025
|
9166261025
91662-61025 New Genuine Part |
91662-61025 |
US $2.33 |
||
