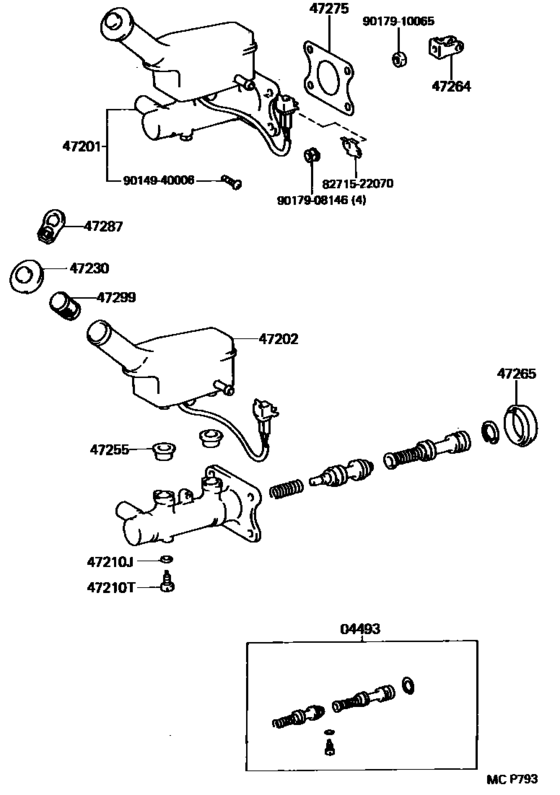

Brake Master Cylinder ([05.1990 - 08.1996] (9005-9608)) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1991
- Sales region
- General
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 05.1990
- To
- 08.1991
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-28080 Cylinder Kit, Brake MasterBRAKE MASTER [05.1990 - 08.1991] TCR1#,2# |
04493-28080 |
US $107.74 |
||
|
04493
|
04493
04493-28090 Cylinder Kit, Brake Master[05.1990 - 08.1991] TCR11,21 W(ABS) |
04493-28090 |
US $82.99 |
||
|
47201
|
47201
47201-28200 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [05.1990 - 08.1991] TCR1#,2#..MTM |
47201-28200 |
US $445.54 |
||
|
47201
|
47201
47201-28220 Cylinder Sub-Assy, Brake Master[05.1990 - 08.1993] TCR11,21..MTM W(ABS) |
47201-28220 |
US $444.08 |
||
| replacement | |||||
|
47201
|
47201
47201-28370 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [05.1990 - 08.1993] TCR11,21..MTM W(ABS) |
47201-28370 |
US $444.08 |
||
|
47202
|
47202
47203-28130 Reservoir Sub-Assy, Brake Master Cylinder[05.1990 - 08.1991] TCR11,21..MTM W(ABS) |
47203-28130 |
US $113.57 |
||
|
47202
|
47202
47203-28150 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [05.1990 - 08.1991] TCR1#,2#..MTM |
47203-28150 |
US $115.02 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[05.1990 - 05.1997] TCR1#,2# |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[05.1990 - 12.1999] TCR1#,2# |
90109-06077 |
from US $2.87 |
||
|
47230
|
47230
47230-28020 Cap Assy, Brake Master Cylinder Reservoir Filler[05.1990 - 08.1993] TCR1#,2# |
47230-28020 |
US $6.55 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[05.1990 - 12.1999] TCR1#,2# |
47255-16010 |
from US $6.45 |
||
|
47264
|
47264
47264-50010 Clevis, Master Cylinder Push Rod[05.1990 - 12.1999] TCR1#,2# |
47264-50010 |
from US $8.70 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[05.1990 - 06.1995] TCR1#,2# |
47265-20050 |
from US $4.64 |
||
|
47275
|
47275
47275-24010 Gasket, Brake Master Cylinder[05.1990 - 08.1996] TCR1#,2# |
47275-24010 |
from US $1.29 |
||
|
47299
|
47299
47299-28010 Strainer, Brake Master Cylinder Reservoir[05.1990 - 12.1999] TCR1#,2# |
47299-28010 |
US $5.68 |
||
|
8271522070
|
8271522070
82715-22070 Bracket,wiring Harness Clamp |
82715-22070 |
US $4.08 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
US $1.61 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
