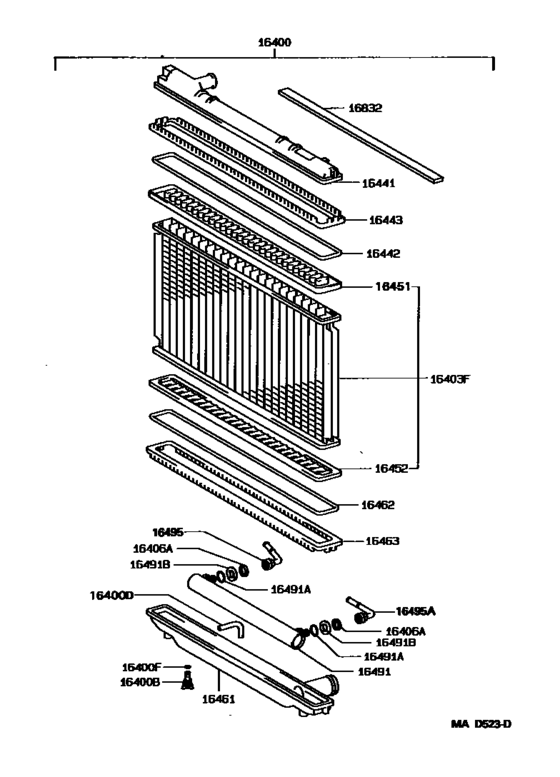

Radiator & Water Outlet ([05.1990 - ] (9005- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1991
- Sales region
- General
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 05.1990
- To
- 08.1991
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400
|
16400
16400-76091 Radiator Assy[05.1990 - 08.1991] 2TZFE..TCR1#,2#..MTM..ARL |
16400-76091 |
US $610.06 |
||
| replacement | |||||
|
16400
|
16400
16400-76081 Radiator Assy[05.1990 - 08.1991] 2TZFE..TCR1#,2#..MTM..ARL |
16400-76081 |
US $806.93 |
||
|
16400B
|
16400B
90910-09067 Plug, Radiator Drain Cock[05.1990 - 08.1991] 2TZFE..TCR1#,2# |
90910-09067 |
US $8.01 |
||
|
16400F
|
16400F
90099-06030
Packing(For Radiator Drain Cock)
[05.1990 - 08.1991] 2TZFE..TCR1#,2# |
90099-06030 |
— | ||
|
16403F
|
16403F
16403-76080 Core Sub-Assy, RadiatorRADIATOR [05.1990 - 08.1996] 2TZFE..TCR10..V;2TZFE..TCR1#,2#..MTM..ARL |
16403-76080 |
US $594.05 |
||
|
16441
|
16441
16441-76080 Tank, Radiator, UpperRADIATOR, UPPER [05.1990 - 08.1996] 2TZFE..TCR10..V;2TZFE..TCR1#,2#..MTM..ARL |
16441-76080 |
US $52.42 |
||
|
16442
|
16442
16462-63030 Ring, O(For Radiator Upper Tank)[05.1990 - 08.1996] 2TZFE..TCR10..V;2TZFE..TCR1#,2#..MTM..ARL |
16462-63030 |
US $13.10 |
||
|
16443
|
16443
16463-15320 Plate, Radiator Tank, Lock, Upper[05.1990 - 08.1996] 2TZFE..TCR10..V;2TZFE..TCR1#,2#..MTM..ARL |
16463-15320 |
US $10.92 |
||
|
16451
|
16451
16452-64070 Plate, Radiator Core, Upper[05.1990 - 08.1996] 2TZFE..TCR10..V;2TZFE..TCR1#,2#..MTM..ARL |
16452-64070 |
US $27.52 |
||
|
16452
|
16452
16452-64070 Plate, Radiator Core, Upper[05.1990 - 08.1996] 2TZFE..TCR10..V;2TZFE..TCR1#,2#..MTM..ARL |
16452-64070 |
US $27.52 |
||
|
16461
|
16461
16461-76070 Tank, Radiator, LowerRADIATOR, LOWER [05.1990 - 08.1991] 2TZFE..TCR1#,2#..MTM |
16461-76070 |
US $87.36 |
||
|
16462
|
16462
16462-63030 Ring, O(For Radiator Upper Tank)[05.1990 - 08.1996] 2TZFE..TCR1#,2# |
16462-63030 |
US $13.10 |
||
|
16463
|
16463
16463-15320 Plate, Radiator Tank, Lock, Upper[05.1990 - 08.1996] 2TZFE..TCR1#,2# |
16463-15320 |
US $10.92 |
||
|
16832
|
16832
16832-76010 Seal, Fan Shroud[05.1990 - 08.1996] 2TZFE..TCR1#,2# |
16832-76010 |
US $10.77 |
||
