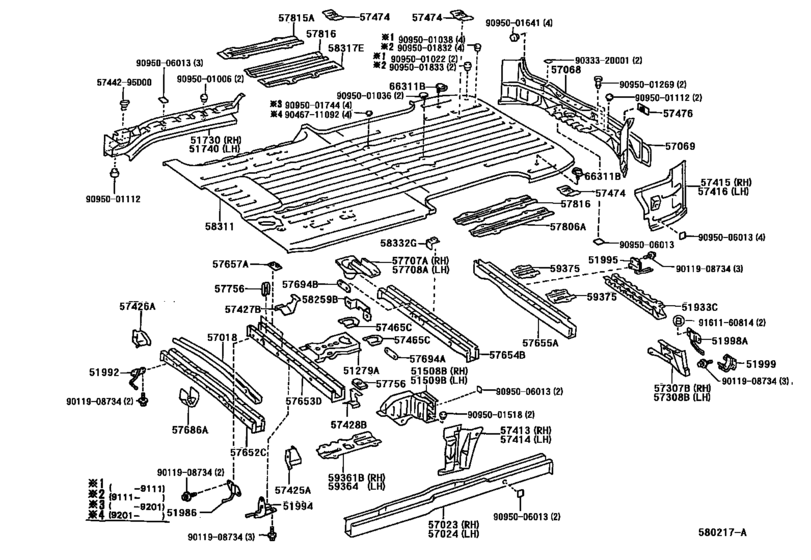

Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- )TCR11,21) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1993
- Sales region
- General
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 05.1990
- To
- 08.1993
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51279A
|
51279A
51279-95D00 Bracket, Differential Support[05.1990 - 12.1999] TCR11,21 |
51279-95D00 |
US $88.82 |
||
|
51508B
|
51508B
51508-95D02 Bracket Sub-Assy, Lower Control Link, Rh[05.1990 - 12.1999] TCR11,21..RHD |
51508-95D02 |
US $149.97 |
||
|
51509B
|
51509B
51509-95D02 Bracket Sub-Assy, Lower Control Link, Lh[05.1990 - 12.1999] TCR11,21..RHD |
51509-95D02 |
US $149.97 |
||
|
51740
|
51740
51740-95D00 Step Assy, Rear Floor, Lh[05.1990 - 12.1993] TCR11,21..RHD |
51740-95D00 |
US $125.22 |
||
| replacement | |||||
|
51740
|
51740
51740-28010 Step Assy, Rear Floor, Lh[05.1990 - 12.1993] TCR11,21..RHD |
51740-28010 |
US $125.22 |
||
|
51933C
|
51933C
51933-95D00 Stopper, Spare Wheel[05.1990 - 12.1999] TCR1#,2# |
51933-95D00 |
US $74.26 |
||
|
57018
|
57018
57018-95D00 Bracket Sub-Assy, Cross Member Floor, No.1[05.1990 - 12.1999] TCR1#,2# |
57018-95D00 |
US $133.95 |
||
|
57023
|
57023
57023-95D16 Member Sub-Assy, Rear Side, Rh[05.1990 - 01.1998] TCR11,21..ARL |
57023-95D16 |
US $631.90 |
||
| replacement | |||||
|
57023
|
57023
57023-28450 Member Sub-Assy, Rear Side, Rh[05.1990 - 01.1998] TCR11,21..ARL |
57023-28450 |
US $628.99 |
||
|
57024
|
57024
57024-28130 Member Sub-Assy, Rear Side, Lh[08.1991 - 01.1998] TCR11,21..ARL |
57024-28130 |
US $631.90 |
||
| replacement | |||||
|
57024
|
57024
57024-28480 Member Sub-Assy, Rear Side, Lh[08.1991 - 01.1998] TCR11,21..ARL |
57024-28480 |
US $628.99 |
||
|
57024
|
57024
57024-95D17 Member Sub-Assy, Rear Side, Lh[05.1990 - 08.1991] TCR11,21..ARL |
57024-95D17 |
US $633.36 |
||
| replacement | |||||
|
57024
|
57024
57024-28090 Member Sub-Assy, Rear Side, LhREAR SIDE, LH [05.1990 - 08.1991] TCR11,21..ARL |
57024-28090 |
US $671.22 |
||
|
57068
|
57068
57068-95D05 Member Sub-Assy, Rear Floor Rear Cross, Inner[05.1990 - 08.1996] TCR1#,2# |
57068-95D05 |
US $187.82 |
||
| replacements | |||||
|
57068
|
57068
57068-28190 Member Sub-Assy, Rear Floor Rear Cross, Inner[05.1990 - 08.1996] TCR1#,2# |
57068-28190 |
US $186.37 |
||
|
57068
|
57068
90333-20001 PLUG[05.1990 - 08.1996] TCR1#,2# |
90333-20001 |
from US $1.21 |
||
|
57069
|
57069
57069-95D00 Member Sub-Assy, Rear Floor Rear Cross, Outer[05.1990 - 12.1999] TCR1#,2# |
57069-95D00 |
US $134.58 |
||
|
57307B
|
57307B
57307-95D00 Outrigger Sub-Assy, No.4 Rh[05.1990 - 12.1999] TCR1#,2# |
57307-95D00 |
US $31.60 |
||
|
57308B
|
57308B
57308-95D00 Outrigger Sub-Assy, No.4 Lh[05.1990 - 12.1999] TCR1#,2# |
57308-95D00 |
US $31.16 |
||
|
57413
|
57413
57413-95D03 Rail, Floor Side, Center Rh[05.1990 - 12.1999] TCR1#,2#..RHD |
57413-95D03 |
US $49.94 |
||
|
57414
|
57414
57414-95D02 Rail, Floor Side, Center Lh[05.1990 - 12.1999] TCR1#,2#..RHD |
57414-95D02 |
US $52.71 |
||
|
57415
|
57415
57047-95D00 Rail, Floor Side, Rear Rh[05.1990 - 12.1999] TCR1#,2# |
57047-95D00 |
US $82.99 |
||
|
57416
|
57416
57048-95D00 Rail, Floor Side, Rear Lh[05.1990 - 12.1999] TCR1#,2# |
57048-95D00 |
US $82.99 |
||
|
57426A
|
57426A
57426-95D00 Plate, Rear Step, Front Lh[05.1990 - 12.1999] TCR1#,2#..RHD |
57426-95D00 |
US $14.56 |
||
|
57428B
|
57428B
57428-95D00 Plate, Rear Step, Rear Lh[05.1990 - 12.1999] TCR1#,2#..RHD |
57428-95D00 |
US $18.20 |
||
|
57474
|
57474
57474-95D02 Plate, Belt Anchor, No.1BELT ANCHOR, NO.1 [05.1990 - 08.1991] TCR1#..ARL LH; TCR21..ARL W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST)),LH |
57474-95D02 |
US $15.58 |
||
|
57474
|
57474
57474-95D03 Plate, Belt Anchor, No.1BELT ANCHOR, NO.1 [05.1990 - 08.1991] TCR11,21..ARL W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST)),RH |
57474-95D03 |
US $15.58 |
||
|
57474
|
57474
57474-95D04 Plate, Belt Anchor, No.1BELT ANCHOR, NO.1 [05.1990 - 12.1999] TCR1#,2#..ARL REAR |
57474-95D04 |
US $15.58 |
||
|
57652C
|
57652C
57652-95D02 Member, Rear Floor Cross, No.1[05.1990 - 12.1999] TCR1#,2# |
57652-95D02 |
US $256.26 |
||
|
57653D
|
57653D
57653-95D01 Member, Rear Floor Cross, No.2[05.1990 - 12.1999] TCR1#,2# |
57653-95D01 |
US $327.60 |
||
|
57654B
|
57654B
57654-95D02 Member, Rear Floor Cross, No.3[05.1990 - 12.1999] TCR1#,2# |
57654-95D02 |
US $256.26 |
||
|
57655A
|
57655A
57655-28040 Member, Rear Floor Cross, No.4[08.1991 - 12.1999] TCR11,21 |
57655-28040 |
US $216.94 |
||
|
57655A
|
57655A
57655-95D02 Member, Rear Floor Cross, No.4[05.1990 - 08.1991] TCR11,21 |
57655-95D02 |
US $216.94 |
||
| replacements | |||||
|
57655A
|
57655A
51957-28040 Bracket, Spare Wheel Carrier Hinge, Rh[05.1990 - 08.1991] TCR11,21 |
51957-28040 |
US $36.25 |
||
|
57655A
|
57655A
57655-28040 Member, Rear Floor Cross, No.4[05.1990 - 08.1991] TCR11,21 |
57655-28040 |
US $216.94 |
||
|
57686A
|
57686A
57686-95D00 Bracket, Fuel Tank Mounting, Rear Rh[05.1990 - 12.1999] TCR1#,2# |
57686-95D00 |
US $26.06 |
||
|
57694A
|
57694A
57694-95D00 Reinforcement, Fuel Tank Support, No.2[05.1990 - 12.1999] TCR1#,2# |
57694-95D00 |
US $8.30 |
||
|
57694B
|
57694B
57694-95D00 Reinforcement, Fuel Tank Support, No.2[05.1990 - 12.1999] TCR11,21 |
57694-95D00 |
US $8.30 |
||
|
57707A
|
57707A
57707-95D02 Plate Sub-Assy, Rear Spring, Rh[05.1990 - 12.1999] TCR11,21 |
57707-95D02 |
US $109.20 |
||
|
57708A
|
57708A
57708-95D02 Plate Sub-Assy, Rear Spring, Lh[05.1990 - 12.1999] TCR11,21 |
57708-95D02 |
US $109.20 |
||
|
57756
|
57756
57756-95D00 Plate, Rear Floor No.2 Crossmember[05.1990 - 12.1999] TCR11,21 |
57756-95D00 |
US $18.20 |
||
|
57815A
|
57815A
57815-95D01 Reinforcement, Belt Anchor, RhBELT ANCHOR, RH [05.1990 - 12.1999] TCR11..ARL;TCR10,21..07S..(ARL,V) |
57815-95D01 |
US $99.01 |
||
|
57816
|
57816
57808-95D00 Reinforce Sub-Assy, Belt Anchor, No.2 LhBELT ANCHOR, NO.2 LH [05.1990 - 08.1991] TCR11..ARL; TCR21..ARL W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST)) |
57808-95D00 |
US $68 |
||
|
57816
|
57816
57808-95D01 Reinforce Sub-Assy, Belt Anchor, No.2 LhBELT ANCHOR, NO.2 LH [05.1990 - 08.1991] TCR2#..ARL |
57808-95D01 |
US $100.46 |
||
|
58259B
|
58259B
58259-95D01 Reinforcement, Parking Brake Cable, No.1[05.1990 - 12.1999] TCR11,21..RHD |
58259-95D01 |
US $14.56 |
||
|
58311
|
58311
58311-95D13 Pan, Rear FloorREAR FLOOR [05.1990 - 08.1991] TCR11,21..ARL W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST)) |
58311-95D13 |
US $1,039.58 |
||
| replacement | |||||
|
58311
|
58311
58311-28911 Pan, Rear Floor[05.1990 - 08.1991] TCR11,21..ARL W(RR NO.1 SEAT = 1+1 CAPTAIN,W(ARM REST)) |
58311-28911 |
US $1,042.50 |
||
|
58311
|
58311
58311-95D15 Pan, Rear FloorREAR FLOOR [05.1990 - 08.1991] TCR2#..ARL |
58311-95D15 |
US $1,043.95 |
||
| replacement | |||||
|
58311
|
58311
58311-28911 Pan, Rear Floor[05.1990 - 08.1991] TCR2#..ARL |
58311-28911 |
US $1,042.50 |
||
|
59361B
|
59361B
59361-95D01 Retainer, Rear Seat, No.1 A[05.1990 - 08.1996] TCR1#,2#..RHD |
59361-95D01 |
US $88.82 |
||
|
59364
|
59364
59364-95D01 Retainer, Rear Seat, No.1 D[05.1990 - 08.1996] TCR1#,2#..RHD |
59364-95D01 |
US $88.82 |
||
|
59375
|
59375
59375-95D00 Retainer, Rear Seat, No.4[05.1990 - 08.1996] TCR11,21 |
59375-95D00 |
US $32.47 |
||
|
5744295D00
|
5744295D00
57442-95D00 Plug, Step Panel Hole |
57442-95D00 |
US $6.99 |
||
|
9011908734
|
9011908734
90119-08734 Bolt, W/washer(For Transmission Case Cover) |
90119-08734 |
US $1.89 |
||
| replacement | |||||
|
9011908734
|
9011908734
90119-08373 Bolt, W/washer(For Transmission Case Cover) |
90119-08373 |
US $2.51 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.21 |
||
|
9046711092
|
9046711092
90467-11092 New Genuine Part |
90467-11092 |
US $1.60 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.13 |
||
|
9095001022
|
9095001022
90950-01022
Plug, Hole, No.1(For Dash Panel)
|
90950-01022 |
— | ||
| replacement | |||||
|
9095001022
|
9095001022
90950-01882 Cover, Hole |
90950-01882 |
from US $2.01 |
||
|
9095001036
|
9095001036
90950-01036 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01036 |
US $4.22 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.84 |
||
|
9095001112
|
9095001112
90950-01112 Plug, Hole(For Heater Control Cable Hole) |
90950-01112 |
US $1.49 |
||
|
9095001269
|
9095001269
90950-01269 New Genuine Part |
90950-01269 |
US $2.18 |
||
| replacement | |||||
|
9095001269
|
9095001269
90950-01453 New Genuine Part |
90950-01453 |
US $1.46 |
||
|
9095001518
|
9095001518
90950-01518 PLUG |
90950-01518 |
US $1.97 |
||
|
9095001641
|
9095001641
90950-01641 New Genuine Part |
90950-01641 |
US $3.58 |
||
|
9095001744
|
9095001744
90950-01744 New Genuine Part |
90950-01744 |
US $2.62 |
||
|
9095001832
|
9095001832
90950-01832 Sub-Sheet, Front Door Service Hole |
90950-01832 |
from US $1.97 |
||
|
9095001833
|
9095001833
90950-01833 PLUG HOLE |
90950-01833 |
from US $2.15 |
||
|
9095006013
|
9095006013
90950-06013 New Genuine Part |
90950-06013 |
US $2.15 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
