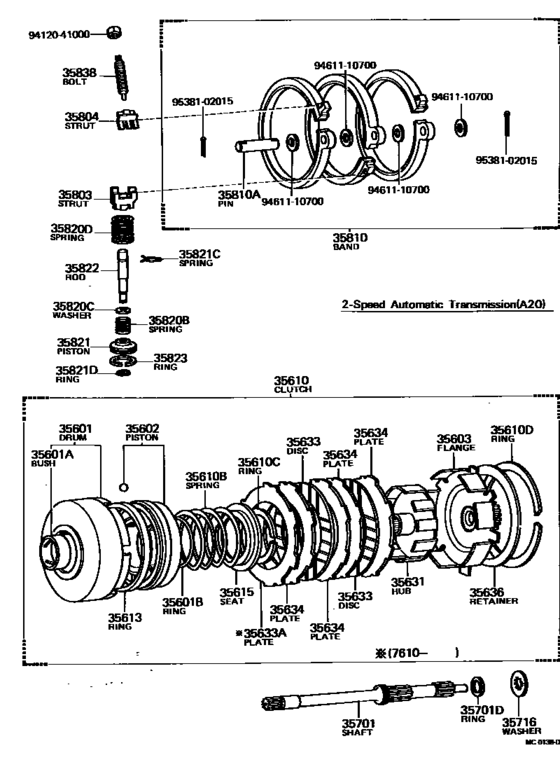

Brake Band & Multiple Disc Clutch (Atm) ([10.1969 - 11.1975] (6910-7511)2FC ; (7610-7802)2FC) Diagram Toyota PUBLICA
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- KP30
- grade
- DLX
- body
- SED
- ENGINE
- 2K
- TRANSMISSION
- ATM
- Model
- PUBLICA
- From
- 10.1969
- To
- 11.1975
- Gear Shift Type
- 2FC
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35601
|
35601
35601-12010 Drum Sub-Assy, ClutchCLUTCH [10.1969 - 11.1975] KP30,31..2FC |
35601-12010 |
US $158.70 |
||
|
35601A
|
35601A
90999-73038 Bush, Bimetal Formed (For Clutch Drum)BIMETAL FORMED (FOR CLUTCH DRUM) [10.1969 - 11.1975] KP30,31..2FC |
90999-73038 |
US $10.05 |
||
|
35601B
|
35601B
90301-47100 Ring, O (For Front Clutch Drum)O (FOR FRONT CLUTCH DRUM) [10.1969 - 11.1975] KP30,31..2FC |
90301-47100 |
US $4.95 |
||
|
35602
|
35602
35602-12010
Piston Sub-Assy, Front Clutch
[10.1969 - 02.1971] KP30,31..2FC |
35602-12010 |
— | ||
| replacements | |||||
|
35602
|
35602
35602-12011
Piston Sub-Assy, Front Clutch
[10.1969 - 02.1971] KP30,31..2FC |
35602-12011 |
— | ||
|
35602
|
35602
90501-55620 Spring, Compression (For Front Clutch Piston Return)COMPRESSION (FOR FRONT CLUTCH PISTON RETURN) [10.1969 - 02.1971] KP30,31..2FC |
90501-55620 |
US $7.72 |
||
|
35602
|
35602
35602-12011
Piston Sub-Assy, Front Clutch
[02.1971 - 11.1975] KP30,31..2FC |
35602-12011 |
— | ||
|
35603
|
35603
35603-12010
Flange Sub-Assy, Clutch, W/low Sun Gear
[10.1969 - 11.1975] KP30,31..2FC |
35603-12010 |
— | ||
|
35610
|
35610
35610-12010
Clutch Assy, Front Multiple Disc
[10.1969 - 11.1975] KP30,31..2FC |
35610-12010 |
— | ||
|
35610B
|
35610B
90501-55383
Spring, Compression (For Front Clutch Piston Return)
[10.1969 - 02.1971] KP30,31..2FC |
90501-55383 |
— | ||
|
35610B
|
35610B
90501-55620 Spring, Compression (For Front Clutch Piston Return)COMPRESSION (FOR FRONT CLUTCH PISTON RETURN) [02.1971 - 11.1975] KP30,31..2FC |
90501-55620 |
US $7.72 |
||
|
35610C
|
35610C
90520-52077 Ring, Shaft Snap (For Front Clutch Piston Return Spring)SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING) [10.1969 - 11.1975] KP30,31..2FC T=1.6 |
90520-52077 |
US $2.33 |
||
|
35610D
|
35610D
90521-99093 Ring, Hole Snap (For Front Multiple Disc Clutch)HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH) [10.1969 - 11.1975] KP30,31..2FC T=1.85-1.95 |
90521-99093 |
US $3.06 |
||
|
35613
|
35613
35653-30010 Ring, Clutch Piston Oil Seal, OuterCLUTCH PISTON OIL SEAL, OUTER [10.1969 - 11.1975] KP30,31..2FC |
35653-30010 |
US $10.05 |
||
|
35615
|
35615
35615-12010
Seat, Clutch Piston Return Spring
[10.1969 - 11.1975] KP30,31..2FC |
35615-12010 |
— | ||
|
35631
|
35631
35631-12010 Hub, Clutch(For Multiple Disc Clutch)CLUTCH(FOR MULTIPLE DISC CLUTCH) [10.1969 - 11.1975] KP30,31..2FC |
35631-12010 |
US $48.05 |
||
| replacement | |||||
|
35631
|
35631
35631-12011
Hub, Clutch(For Multiple Disc Clutch)
[10.1969 - 11.1975] KP30,31..2FC |
35631-12011 |
— | ||
|
35633
|
35633
35633-12010 Disc, Clutch (For Front Clutch)[10.1969 - 02.1973] KP30,31..2FC T=2.5 |
35633-12010 |
US $27.52 |
||
| replacement | |||||
|
35633
|
35633
35633-12012 Disc, Clutch (For Front Clutch)[10.1969 - 02.1973] KP30,31..2FC T=2.5 |
35633-12012 |
US $35.24 |
||
|
35633
|
35633
35633-12011 Disc, Clutch (For Front Clutch)CLUTCH (FOR FRONT CLUTCH) [02.1973 - 11.1975] KP30..2FC T=2.5 |
35633-12011 |
US $35.09 |
||
| replacement | |||||
|
35633
|
35633
35633-12012 Disc, Clutch (For Front Clutch)[02.1973 - 11.1975] KP30..2FC T=2.5 |
35633-12012 |
US $35.24 |
||
|
35634
|
35634
35634-12010 Plate, Front ClutchFRONT CLUTCH [10.1969 - 11.1975] KP30,31..2FC T=1.50-1.65 |
35634-12010 |
US $8.59 |
||
|
35636
|
35636
35636-12010
Retainer, Clutch Flange
[10.1969 - 11.1975] KP30,31..2FC |
35636-12010 |
— | ||
|
35701
|
35701
35711-12010
Shaft Sub-Assy, Input
[10.1969 - 11.1975] KP30,31..2FC |
35711-12010 |
— | ||
|
35701D
|
35701D
35712-12010 Ring (For Input Shaft)[10.1969 - 11.1975] KP30,31..2FC |
35712-12010 |
US $10.05 |
||
|
35716
|
35716
35716-12010 Washer, Low Sun Gear Thrust, No.1LOW SUN GEAR THRUST, NO.1 [10.1969 - 11.1975] KP30,31..2FC T=2.0 |
35716-12010 |
US $7.57 |
||
|
35716
|
35716
35717-12010 Washer, Low Sun Gear Thrust, No.1LOW SUN GEAR THRUST, NO.1 [10.1969 - 11.1975] KP30,31..2FC T=2.6 |
35717-12010 |
US $7.57 |
||
|
35803
|
35803
35803-12010 Strut Sub-Assy, Low Brake Band ApplyLOW BRAKE BAND APPLY [10.1969 - 11.1975] KP30,31..2FC |
35803-12010 |
US $4.08 |
||
|
35804
|
35804
35804-12011 Strut Sub-Assy, Low Brake Band AnchorLOW BRAKE BAND ANCHOR [10.1969 - 11.1975] KP30,31..2FC |
35804-12011 |
US $8.74 |
||
|
35810
|
35810
35810-12011 Band Assy, Transmission Brake (For Front)[10.1969 - 02.1973] KP30,31..2FC |
35810-12011 |
US $157.25 |
||
| replacement | |||||
|
35810
|
35810
35810-12014 Band Assy, Transmission Brake (For Front)[10.1969 - 02.1973] KP30,31..2FC |
35810-12014 |
US $200.93 |
||
|
35810
|
35810
35810-12013 Band Assy, Transmission Brake (For Front)TRANSMISSION BRAKE (FOR FRONT) [02.1973 - 11.1975] KP30..2FC |
35810-12013 |
US $200.93 |
||
| replacement | |||||
|
35810
|
35810
35810-12014 Band Assy, Transmission Brake (For Front)[02.1973 - 11.1975] KP30..2FC |
35810-12014 |
US $200.93 |
||
|
35810A
|
35810A
90255-07008
Pin, W/hole Straight (For Brake Band)
[10.1969 - 11.1975] KP30,31..2FC |
90255-07008 |
— | ||
|
35820B
|
35820B
90501-26317 Spring, Compression (For Low Servo Piston Inner)COMPRESSION (FOR LOW SERVO PISTON INNER) [10.1969 - 11.1975] KP30,31..2FC WD=2.6,CW=6.0 |
90501-26317 |
US $2.77 |
||
|
35820C
|
35820C
90201-08255 Washer, Plate (For Low Servo Piston Return Spring)[10.1969 - 11.1975] KP30,31..2FC |
90201-08255 |
US $2.18 |
||
|
35820D
|
35820D
90501-26318 Spring, Compression (For Low Servo Piston Return)COMPRESSION (FOR LOW SERVO PISTON RETURN) [10.1969 - 11.1975] KP30,31..2FC |
90501-26318 |
US $2.91 |
||
|
35821
|
35821
35821-12011
Piston, Low Servo
[10.1969 - 11.1975] KP30..2FC |
35821-12011 |
— | ||
|
35821C
|
35821C
90524-08010
Spring, Low Servo Piston Spring Lock Retainer
[10.1969 - 11.1975] KP30,31..2FC |
90524-08010 |
— | ||
|
35821D
|
35821D
90523-04008 Ring, E (For Toggle Lever Pin Stopper)E (FOR CONTROL LEVER SHAFT) [10.1969 - 04.1972] KP30,31..2FC |
90523-04008 |
US $1.89 |
||
| replacement | |||||
|
35821D
|
35821D
96160-00400 Ring, E(For Release Arm)[10.1969 - 04.1972] KP30,31..2FC |
96160-00400 |
US $1.05 |
||
|
35821D
|
35821D
96160-00400 Ring, E(For Release Arm)[04.1972 - 11.1975] KP30..2FC |
96160-00400 |
US $1.05 |
||
|
35822
|
35822
35822-12010 Rod, Low Servo PistonLOW SERVO PISTON [10.1969 - 11.1975] KP30,31..2FC |
35822-12010 |
US $8.74 |
||
|
35823
|
35823
35823-12011
Ring, Servo Piston
[10.1969 - 11.1975] KP30..2FC |
35823-12011 |
— | ||
|
35838
|
35838
35838-12010
Bolt, Brake Band Anchor
[10.1969 - 11.1975] KP30,31..2FC |
35838-12010 |
— | ||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9461110700
|
9461110700
94611-10700 New Genuine Part |
94611-10700 |
US $1.75 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.79 |
||
