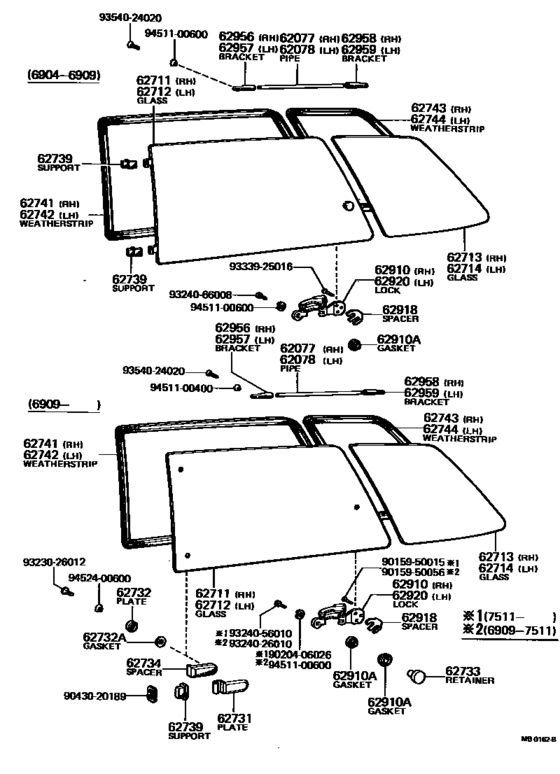

Quarter Window ([04.1969 - 09.1978] (6904-7809)V) Diagram Toyota PUBLICA
- Year
- 1975 - 1978
- Sales region
- Japan
- Frame
- KP37
- grade
- DLX
- body
- V
- ENGINE
- 3KHJ
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 11.1975
- To
- 09.1978
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62077
|
62077
90443-10017
Pipe Sub-Assy, Quarter Window Guard B, Rh
[04.1969 - 09.1978] KP36,37,UP36..V |
90443-10017 |
— | ||
|
62078
|
62078
90443-10017
Pipe Sub-Assy, Quarter Window Guard B, Rh
[04.1969 - 09.1978] KP36,37,UP36..V |
90443-10017 |
— | ||
|
62711
|
62711
62711-11021 Glass, Quarter Window, RhQUARTER WINDOW, RH [09.1969 - 09.1978] KP36,37,UP36..V *TEM,T=4.0 |
62711-11021 |
US $96.10 |
||
|
62712
|
62712
62712-11021
Glass, Quarter Window, Lh
[09.1969 - 09.1978] KP36,37,UP36..V *TEM,T=4.0 |
62712-11021 |
— | ||
|
62713
|
62713
62713-11020 Glass, Quarter Window, Rear RhQUARTER WINDOW, REAR RH [10.1973 - 09.1978] KP36,37..V *TEM,T=4.0 |
62713-11020 |
US $49.07 |
||
|
62714
|
62714
62714-11020 Glass, Quarter Window, Rear LhQUARTER WINDOW, REAR LH [10.1973 - 09.1978] KP36,37..V *TEM,T=4.0 |
62714-11020 |
US $49.07 |
||
|
62731
|
62731
62731-10031
Plate, Quarter Or Side Window Hinge
[01.1972 - 09.1978] KP36,37..V |
62731-10031 |
— | ||
|
62732
|
62732
62732-10030
Plate, Quarter Or Side Window Hinge Finish
[01.1972 - 09.1978] KP36,37..V |
62732-10030 |
— | ||
|
62732A
|
62732A
90430-06199 Gasket(For Quarter Window Hinge Finish Plate)[01.1972 - 09.1978] KP36,37..V |
90430-06199 |
US $2.48 |
||
|
62733
|
62733
62733-12010 Retainer, Quarter Or Side Window Hinge[09.1969 - 09.1978] KP3#,50,UP3#..SED,V |
62733-12010 |
US $3.23 |
||
|
62734
|
62734
62734-10030
Spacer, Quarter Window Hinge
[01.1972 - 09.1978] KP36,37..V |
62734-10030 |
— | ||
|
62739
|
62739
62739-10021
Support, Quarter Window Hinge
[01.1972 - 09.1978] KP36,37..V |
62739-10021 |
— | ||
|
62741
|
62741
62741-11020
Weatherstrip, Quarter Window, Rh
[04.1969 - 09.1978] KP36,37,UP36..V |
62741-11020 |
— | ||
|
62742
|
62742
62742-11020
Weatherstrip, Quarter Window, Lh
[04.1969 - 09.1978] KP36,37,UP36..V |
62742-11020 |
— | ||
|
62743
|
62743
62743-11020
Weatherstrip, Quarter Window, Rear Rh
[04.1969 - 09.1978] KP36,37,UP36..V |
62743-11020 |
— | ||
|
62744
|
62744
62744-11010
Weatherstrip, Quarter Window, Rear Lh
[04.1969 - 09.1978] KP36,37,UP36..V |
62744-11010 |
— | ||
|
62910
|
62910
62910-11012
Lock Assy, Quarter Or Side Window, Rh
[01.1975 - 11.1975] KP36,37..V |
62910-11012 |
— | ||
|
62910
|
62910
62910-11013
Lock Assy, Quarter Or Side Window, Rh
[11.1975 - 09.1978] KP37..V |
62910-11013 |
— | ||
|
62910A
|
62910A
62734-12010 Clip, Quarter Window Hinge Plate[09.1969 - 09.1978] KP3#,50,UP3#..SED,V |
62734-12010 |
from US $2.51 |
||
|
62918
|
62918
62918-13010
Spacer, Quarter Window Lock Support
[04.1969 - 09.1978] KP36,37,UP36..V |
62918-13010 |
— | ||
|
62920
|
62920
62920-11012
Lock Assy, Quarter Window, Lh
[01.1975 - 11.1975] KP36,37..V |
62920-11012 |
— | ||
|
62920
|
62920
62920-11013
Lock Assy, Quarter Window, Lh
[11.1975 - 09.1978] KP37..V |
62920-11013 |
— | ||
|
62956
|
62956
62881-11021
Bracket, Guard Pipe Quarter Window, Front Rh
[09.1969 - 09.1978] KP36,37,UP36..V |
62881-11021 |
— | ||
|
62957
|
62957
62881-11021
Bracket, Guard Pipe Quarter Window, Front Rh
[09.1969 - 09.1978] KP36,37,UP36..V |
62881-11021 |
— | ||
|
62958
|
62958
62881-11021
Bracket, Guard Pipe Quarter Window, Front Rh
[09.1969 - 09.1978] KP36,37,UP36..V |
62881-11021 |
— | ||
|
62959
|
62959
62881-11021
Bracket, Guard Pipe Quarter Window, Front Rh
[09.1969 - 09.1978] KP36,37,UP36..V |
62881-11021 |
— | ||
|
9015950015
|
9015950015
90159-50015 New Genuine Part |
90159-50015 |
US $2.33 |
||
|
9015950056
|
9015950056
90159-50056 New Genuine Part |
90159-50056 |
US $2.91 |
||
| replacement | |||||
|
9015950056
|
9015950056
93339-25025 New Genuine Part |
93339-25025 |
US $1.75 |
||
|
9020406026
|
9020406026
90204-06026 New Genuine Part |
90204-06026 |
US $2.33 |
||
|
9043020189
|
9043020189
90430-20189 New Genuine Part |
90430-20189 |
US $2.77 |
||
|
9323026012
|
9323026012
93230-26012 New Genuine Part |
93230-26012 |
US $2.87 |
||
|
9324026010
|
9324026010
93240-26010 New Genuine Part |
93240-26010 |
US $2.18 |
||
|
9324056010
|
9324056010
93240-56010 SCREW |
93240-56010 |
US $0.73 |
||
|
9324066008
|
9324066008
93240-66008 New Genuine Part |
93240-66008 |
US $1.60 |
||
|
9333925016
|
9333925016
93339-25016 New Genuine Part |
93339-25016 |
US $1.60 |
||
|
9354024020
|
9354024020
93540-24020 New Genuine Part |
93540-24020 |
US $2.18 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9452400600
|
9452400600
94524-00600 New Genuine Part |
94524-00600 |
US $3.05 |
||
