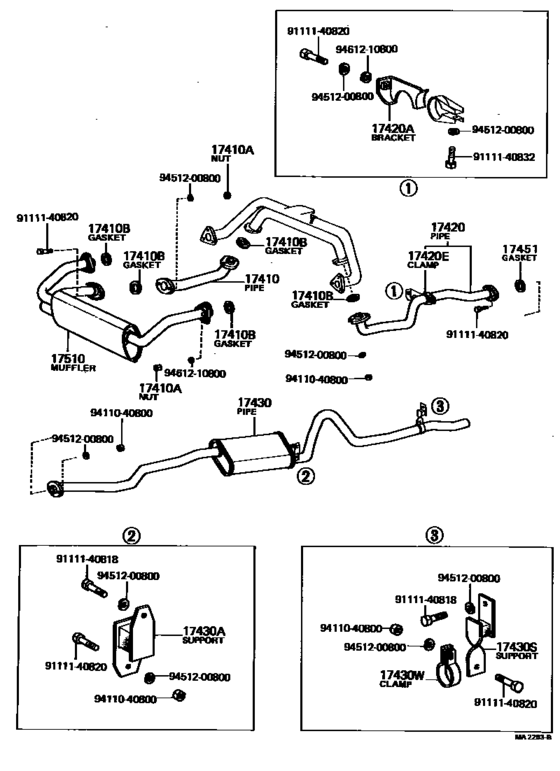

Exhaust Pipe ([04.1969 - 12.1971] (6904-7112)2UC..UP36) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP36
- grade
- DLX
- body
- V
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-11021
Pipe Assy, Exhaust, Front
[04.1969 - 12.1971] 2UC..UP3# |
17401-11021 |
— | ||
|
17410A
|
17410A
90170-08047 Nut, Exhaust Pipe Set Stud Bolt[04.1969 - 12.1971] 2UC..UP3# |
90170-08047 |
US $3.20 |
||
| replacement | |||||
|
17410A
|
17410A
46441-30030 Nut, Wire Adjusting, No.1[04.1969 - 12.1971] 2UC..UP3# |
46441-30030 |
US $4.66 |
||
|
17410B
|
17410B
90917-06006
Gasket, Exhaust Pipe
[04.1969 - 04.1974] 2K,3K,2UC..KP3#,UP3# |
90917-06006 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06037 Gasket, Exhaust Pipe[04.1969 - 04.1974] 2K,3K,2UC..KP3#,UP3# |
90917-06037 |
from US $2.98 |
||
|
17420
|
17420
17403-11041
Pipe Assy, Exhaust, Center
[04.1969 - 12.1971] 2UC..UP3# FR |
17403-11041 |
— | ||
|
17420A
|
17420A
17561-11030
Bracket, Exhaust Pipe Center, Front
[04.1969 - 12.1971] 2UC..UP3# |
17561-11030 |
— | ||
|
17420E
|
17420E
90461-23333
Clamp No.2, Exhaust Pipe Center, Front
[04.1969 - 12.1971] 2UC..UP3# |
90461-23333 |
— | ||
|
17430
|
17430
17410-11091
Pipe Assy, Exhaust, Tail
[04.1969 - 12.1971] 2UC..UP36 |
17410-11091 |
— | ||
|
17430A
|
17430A
17562-12020
Bracket, Exhaust Tail Pipe(For Front)
[04.1969 - 10.1973] 2K,3K,2UC..KP36,37,UP36..V |
17562-12020 |
— | ||
|
17430S
|
17430S
17563-12020
Bracket, Exhaust Tail Pipe (For Rear)
[04.1969 - 09.1978] 2K,3K,3KHJ,2UC..KP36,37,UP36..V |
17563-12020 |
— | ||
|
17430W
|
17430W
90461-23110 Clamp No.2, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE (FOR REAR) [04.1969 - 10.1970] 2K,2UC..KP36,UP36..V |
90461-23110 |
US $2.91 |
||
|
17451
|
17451
90917-06006
Gasket, Exhaust Pipe
[04.1969 - 05.1970] KB,2K,2UC..KP3#,UP3# |
90917-06006 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06037 Gasket, Exhaust Pipe[04.1969 - 05.1970] KB,2K,2UC..KP3#,UP3# |
90917-06037 |
from US $2.98 |
||
|
9111140818
|
9111140818
91111-40818
New Genuine Part
|
91111-40818 |
— | ||
| replacement | |||||
|
9111140818
|
9111140818
91111-50818 New Genuine Part |
91111-50818 |
US $3.23 |
||
|
9111140820
|
9111140820
91111-40820
New Genuine Part
|
91111-40820 |
— | ||
| replacement | |||||
|
9111140820
|
9111140820
91111-50820 New Genuine Part |
91111-50820 |
US $2.20 |
||
|
9111140832
|
9111140832
91111-40832 Bolt(For Clutch Master Cylinder Setting) |
91111-40832 |
US $1.75 |
||
| replacement | |||||
|
9111140832
|
9111140832
91111-50832 Bolt(For Clutch Master Cylinder Setting) |
91111-50832 |
US $2.15 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
