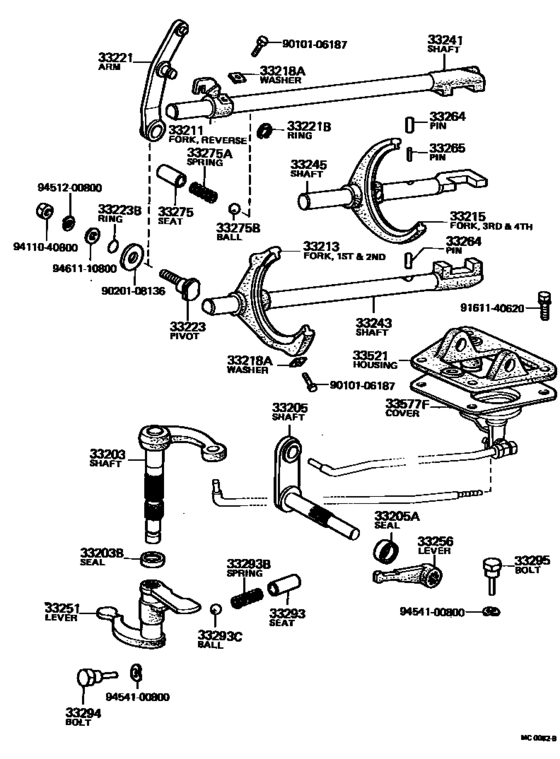

Gear Shift Fork & Lever Shaft (Mtm) ([04.1969 - 12.1971] (6904-7112)UP3#) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP36
- grade
- DLX
- body
- V
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33203
|
33203
33203-10030
Shaft Sub-Assy, Shift Lever, No.1
[04.1969 - 12.1971] UP3# |
33203-10030 |
— | ||
|
33203B
|
33203B
90312-15003 Seal, Oil(For Shift Lever Shaft)[04.1969 - 12.1971] UP3# |
90312-15003 |
US $1.51 |
||
|
33205
|
33205
33205-10060
Shaft Sub-Assy, Select Lever
[04.1969 - 12.1971] UP3# |
33205-10060 |
— | ||
|
33205A
|
33205A
90312-12002
Seal, Oil(For Shift Lever No.2 Shaft)
[04.1969 - 12.1971] UP3# |
90312-12002 |
— | ||
|
33211
|
33211
33211-10011
Fork, Reverse Shift
[04.1969 - 12.1971] UP3# |
33211-10011 |
— | ||
|
33213
|
33213
33213-10012
Fork, 1St & 2Nd Shift
[04.1969 - 12.1971] UP3# |
33213-10012 |
— | ||
|
33215
|
33215
33215-10013
Fork, 3Rd & 4Th Shift
[04.1969 - 12.1971] UP3# |
33215-10013 |
— | ||
|
33218A
|
33218A
90209-06048 Washer(For Gear Shift Fork Bolt Lock)[04.1969 - 12.1971] UP3# |
90209-06048 |
US $1.46 |
||
|
33221
|
33221
33221-10010
Arm, Reverse Shift
[04.1969 - 12.1971] UP3# |
33221-10010 |
— | ||
|
33221B
|
33221B
90523-07014 Ring, E(For Reverse Shift Arm)[04.1969 - 12.1971] UP3# |
90523-07014 |
US $2.18 |
||
|
33223
|
33223
33223-30011 Pivot, Shift Arm[04.1969 - 12.1971] UP3# |
33223-30011 |
US $15.87 |
||
|
33223B
|
33223B
90301-08001
Ring, O(For Shift Arm Pivot)
[04.1969 - 12.1971] UP3# |
90301-08001 |
— | ||
|
33241
|
33241
33241-10011
Shaft, Reverse Shift Fork
[04.1969 - 12.1971] UP3# |
33241-10011 |
— | ||
|
33243
|
33243
33243-10012
Shaft, 1St & 2Nd Shift Fork
[04.1969 - 12.1971] UP3# |
33243-10012 |
— | ||
|
33245
|
33245
33245-10013
Shaft, 3Rd & 4Th Shift Fork
[04.1969 - 12.1971] UP3# |
33245-10013 |
— | ||
|
33251
|
33251
33251-10031
Lever, Shift & Select
[04.1969 - 12.1971] UP3# |
33251-10031 |
— | ||
|
33256
|
33256
33256-10020
Lever, Select Inner
[04.1969 - 12.1971] UP3# |
33256-10020 |
— | ||
|
33264
|
33264
33264-10010
Pin, Or Ball, Shift Inter Lock, No.1
[04.1969 - 12.1971] UP3# REVERSE |
33264-10010 |
— | ||
|
33264
|
33264
33265-10010 Pin, Or Ball, Shift Inter Lock, No.1SHIFT INTER LOCK, NO.2 [04.1969 - 12.1971] UP3# 1ST & 2ND |
33265-10010 |
US $3.06 |
||
|
33265
|
33265
33266-10010
Pin, Shift Inter Lock, No.2
[04.1969 - 12.1971] UP3# 3RD & 4TH |
33266-10010 |
— | ||
|
33275
|
33275
33275-10010 Seat, Shift Detent Ball Spring, No.1[04.1969 - 12.1971] UP3# |
33275-10010 |
US $2.62 |
||
|
33275A
|
33275A
90501-12435
Spring, Compression (For Shift Detent Ball Low Side)
[04.1969 - 06.1969] UP3# |
90501-12435 |
— | ||
|
33275A
|
33275A
90501-14514 Spring, Compression (For Shift Detent Ball Low Side)[06.1969 - 12.1971] UP3# |
90501-14514 |
US $2.18 |
||
| replacement | |||||
|
33275A
|
33275A
90501-14638 Spring, Compression (For Shift Detent Ball Low Side)[06.1969 - 12.1971] UP3# |
90501-14638 |
US $2.48 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[04.1969 - 12.1971] UP3# |
90360-10003 |
from US $1.16 |
||
|
33293
|
33293
33276-10010 Holder, Reverse Restrict Ball[04.1969 - 12.1971] UP3# |
33276-10010 |
US $3.35 |
||
|
33293B
|
33293B
90501-16041 Spring, Compression (For Reverse Restrict Ball)[04.1969 - 12.1971] UP3# WD=1.6,CW=8 |
90501-16041 |
US $2.33 |
||
|
33293C
|
33293C
90360-10003 Ball(For Transmission Oil Pump Cover)[04.1969 - 12.1971] UP3# OD=8 |
90360-10003 |
from US $1.16 |
||
|
33294
|
33294
33294-10010 Bolt, Shaft RetainingSHAFT RETAINING [04.1969 - 12.1971] UP3# |
33294-10010 |
US $2.77 |
||
|
33295
|
33295
33295-10010
Bolt, Shaft Retaining, No.2
[04.1969 - 12.1971] UP3# |
33295-10010 |
— | ||
|
33521
|
33521
33521-10130
Housing, Shift Lever
[04.1969 - 12.1971] UP3# |
33521-10130 |
— | ||
|
33577F
|
33577F
33577-10010 Cover, Control Shaft Hole (For Floor Shift)[04.1969 - 06.1970] UP3# |
33577-10010 |
US $17.04 |
||
| replacement | |||||
|
33577F
|
33577F
33577-10011
Cover, Control Shaft Hole (For Floor Shift)
[04.1969 - 06.1970] UP3# |
33577-10011 |
— | ||
|
33577F
|
33577F
33577-10011
Cover, Control Shaft Hole (For Floor Shift)
[06.1970 - 12.1971] UP3# |
33577-10011 |
— | ||
|
9010106187
|
9010106187
90101-06187 New Genuine Part |
90101-06187 |
US $2.04 |
||
|
9020108136
|
9020108136
90201-08136 New Genuine Part |
90201-08136 |
US $3.35 |
||
|
9161140620
|
9161140620
91611-40620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-40620 |
US $2.04 |
||
| replacement | |||||
|
9161140620
|
9161140620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9454100800
|
9454100800
94541-00800 New Genuine Part |
94541-00800 |
US $1.79 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.84 |
||
