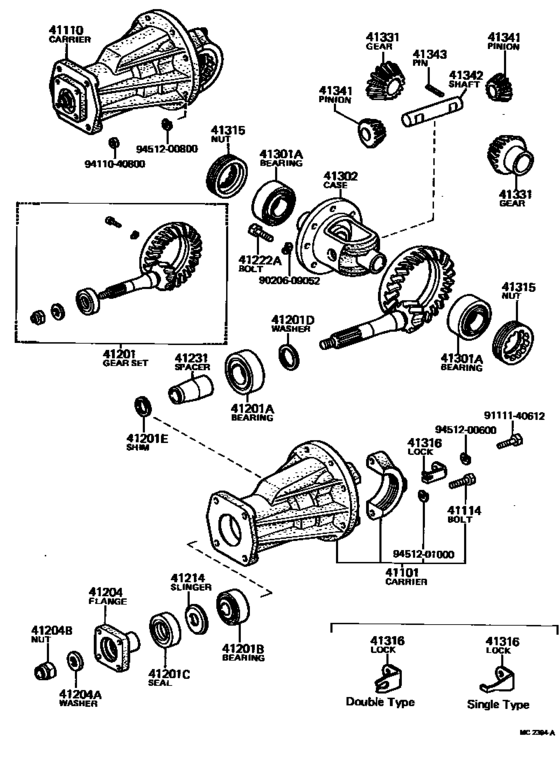

Rear Axle Housing & Differential ([04.1969 - 12.1971] (6904-7112)UP3#) Diagram Toyota PUBLICA
- Year
- 1969 - 1971
- Sales region
- Japan
- Frame
- UP36
- grade
- DLX
- body
- V
- ENGINE
- 2UC
- TRANSMISSION
- MTM
- Model
- PUBLICA
- From
- 04.1969
- To
- 12.1971
- Gear Shift Type
- 4F
- Vehicle Model
- PUBLICA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-10040
Carrier Sub-Assy, Differential, Rear
[04.1969 - 12.1971] UP3# |
41101-10040 |
— | ||
|
41110
|
41110
41110-10070
Carrier Assy, Differential, Rear
[04.1969 - 12.1971] UP3# R=35:9,*AXC=U062 |
41110-10070 |
— | ||
|
41114
|
41114
90101-10199
Bolt, Rear Differential Bearing Cap
[04.1969 - 12.1971] UP3# |
90101-10199 |
— | ||
|
41201
|
41201
41201-19095
Final Gear Kit, Differential, Rear
[04.1969 - 12.1971] UP3# N=35:9 |
41201-19095 |
— | ||
|
41201A
|
41201A
90366-29024
Bearing (For Rear Drive Pinion Rear)
[04.1969 - 12.1971] UP3# |
90366-29024 |
— | ||
|
41201B
|
41201B
90366-20025
Bearing (For Rear Drive Pinion Front)
[04.1969 - 12.1971] UP3# |
90366-20025 |
— | ||
|
41201C
|
41201C
90311-28060 Seal, Oil (For Rear Differential Carrier)[04.1969 - 12.1971] UP3# |
90311-28060 |
US $3.93 |
||
| replacement | |||||
|
41201C
|
41201C
90311-28001
Seal, Oil (For Rear Differential Carrier)
[04.1969 - 12.1971] UP3# |
90311-28001 |
— | ||
|
41201D
|
41201D
90201-30234 Washer, Plate (For Rear Differential Drive Pinion)[04.1969 - 12.1971] UP3# T=2.32-2.34 |
90201-30234 |
US $3.49 |
||
|
41201D
|
41201D
90201-30235 Washer, Plate (For Rear Differential Drive Pinion)[04.1969 - 12.1971] UP3# T=2.35-2.37 |
90201-30235 |
US $3.49 |
||
|
41201D
|
41201D
90201-30236 Washer, Plate (For Rear Differential Drive Pinion)[04.1969 - 12.1971] UP3# T=2.38-2.40 |
90201-30236 |
US $3.49 |
||
|
41201D
|
41201D
90201-30237 Washer, Plate (For Rear Differential Drive Pinion)[04.1969 - 12.1971] UP3# 厚さ＝２．４１−２．４３,T=2.41-2.43 |
90201-30237 |
US $3.49 |
||
|
41201D
|
41201D
90201-30238 Washer, Plate (For Rear Differential Drive Pinion)[04.1969 - 12.1971] UP3# 厚さ＝２．４４−２．４６,T=2.44-2.46 |
90201-30238 |
US $3.49 |
||
|
41201D
|
41201D
90201-30239 Washer, Plate (For Rear Differential Drive Pinion)[04.1969 - 12.1971] UP3# 厚さ＝２．４７−２．４９,T=2.47-2.49 |
90201-30239 |
US $3.49 |
||
|
41201D
|
41201D
90201-30240 Washer, Plate (For Rear Differential Drive Pinion)[04.1969 - 12.1971] UP3# 厚さ＝２．５０−２．５２,T=2.50-2.52 |
90201-30240 |
US $3.49 |
||
|
41201D
|
41201D
90201-30241 Washer, Plate (For Rear Differential Drive Pinion)[04.1969 - 12.1971] UP3# 厚さ＝２．５３−２．５５,T=2.53-2.55 |
90201-30241 |
US $3.49 |
||
|
41201D
|
41201D
90201-30242 Washer, Plate (For Rear Differential Drive Pinion)[04.1969 - 12.1971] UP3# 厚さ＝２．５６−２．５８,T=2.56-2.58 |
90201-30242 |
US $3.49 |
||
|
41201E
|
41201E
90564-20112
Shim (For Rear Diff Drive Pinion Spacer Front Adjust)
[04.1969 - 12.1971] UP3# T=0.25 |
90564-20112 |
— | ||
|
41204
|
41204
37326-10010
Flange Sub-Assy, Rear Drive Pinion Companion, Rear
[04.1969 - 12.1971] UP3# |
37326-10010 |
— | ||
|
41204A
|
41204A
90201-16244 Washer, Plate (For Rear Drive Pinion)[04.1969 - 12.1971] UP3# |
90201-16244 |
US $1.97 |
||
|
41204B
|
41204B
90179-16052
Nut (For Rear Drive Pinion)
[04.1969 - 12.1971] UP3# |
90179-16052 |
— | ||
|
41214
|
41214
41214-11010
Slinger, Rear Differential Drive Pinion Oil
[04.1969 - 12.1971] UP3# |
41214-11010 |
— | ||
|
41222A
|
41222A
90101-09228
Bolt (For Rear Differential Ring Gear Set)
[04.1969 - 12.1971] UP3# |
90101-09228 |
— | ||
|
41231
|
41231
41231-10020
Spacer, Rear Differential Drive Pinion Bearing
[10.1971 - 12.1971] UP3# |
41231-10020 |
— | ||
|
41231
|
41231
41231-11010
Spacer, Rear Differential Drive Pinion Bearing
[04.1969 - 10.1971] UP3# L=53.890-53.910 |
41231-11010 |
— | ||
| replacement | |||||
|
41231
|
41231
41231-10020
Spacer, Rear Differential Drive Pinion Bearing
[04.1969 - 10.1971] UP3# L=53.890-53.910 |
41231-10020 |
— | ||
|
41231
|
41231
41232-11010 Spacer, Rear Differential Drive Pinion Bearing[04.1969 - 10.1971] UP3# L=53.930-53.950 |
41232-11010 |
US $7.57 |
||
| replacement | |||||
|
41231
|
41231
41231-10020
Spacer, Rear Differential Drive Pinion Bearing
[04.1969 - 10.1971] UP3# L=53.930-53.950 |
41231-10020 |
— | ||
|
41231
|
41231
41233-11010
Spacer, Rear Differential Drive Pinion Bearing
[04.1969 - 10.1971] UP3# L=53.970-53.990 |
41233-11010 |
— | ||
| replacement | |||||
|
41231
|
41231
41231-10020
Spacer, Rear Differential Drive Pinion Bearing
[04.1969 - 10.1971] UP3# L=53.970-53.990 |
41231-10020 |
— | ||
|
41231
|
41231
41234-11010 Spacer, Rear Differential Drive Pinion Bearing[04.1969 - 10.1971] UP3# L=54.010-54.030 |
41234-11010 |
US $7.57 |
||
| replacement | |||||
|
41231
|
41231
41231-10020
Spacer, Rear Differential Drive Pinion Bearing
[04.1969 - 10.1971] UP3# L=54.010-54.030 |
41231-10020 |
— | ||
|
41231
|
41231
41235-11010 Spacer, Rear Differential Drive Pinion Bearing[04.1969 - 10.1971] UP3# L=54.050-54.070 |
41235-11010 |
US $7.57 |
||
| replacement | |||||
|
41231
|
41231
41231-10020
Spacer, Rear Differential Drive Pinion Bearing
[04.1969 - 10.1971] UP3# L=54.050-54.070 |
41231-10020 |
— | ||
|
41231
|
41231
41236-11010
Spacer, Rear Differential Drive Pinion Bearing
[04.1969 - 10.1971] UP3# L=54.090-54.110 |
41236-11010 |
— | ||
| replacement | |||||
|
41231
|
41231
41231-10020
Spacer, Rear Differential Drive Pinion Bearing
[04.1969 - 10.1971] UP3# L=54.090-54.110 |
41231-10020 |
— | ||
|
41301A
|
41301A
90368-31005
Bearing(For Rear Differential Case)
[04.1969 - 12.1971] UP3# |
90368-31005 |
— | ||
|
41302
|
41302
41311-10013 Case Sub-Assy, Rear Differential[04.1969 - 12.1971] UP3# |
41311-10013 |
US $211.12 |
||
| replacements | |||||
|
41302
|
41302
41311-10015
Case, Front Differential
[04.1969 - 12.1971] UP3# |
41311-10015 |
— | ||
|
41302
|
41302
41361-11010
Washer, Rear Differential Side Gear Thrust, No.1
[04.1969 - 12.1971] UP3# |
41361-11010 |
— | ||
|
41302
|
41302
41362-11010
Washer, Rear Differential Side Gear Thrust, No.2
[04.1969 - 12.1971] UP3# |
41362-11010 |
— | ||
|
41302
|
41302
41363-11010
Washer, Rear Differential Side Gear Thrust, No.3
[04.1969 - 12.1971] UP3# |
41363-11010 |
— | ||
|
41302
|
41302
41364-11010
New Genuine Part
[04.1969 - 12.1971] UP3# |
41364-11010 |
— | ||
|
41315
|
41315
41315-10010
Nut, Rear Differential Bearing Adjusting
[04.1969 - 12.1971] UP3# |
41315-10010 |
— | ||
|
41316
|
41316
41316-10010
Lock, Rear Differential Bearing Adjusting Nut
[04.1969 - 12.1971] UP3# SINGLE TYPE |
41316-10010 |
— | ||
|
41316
|
41316
41317-10010
Lock, Rear Differential Bearing Adjusting Nut
[04.1969 - 12.1971] UP3# DOUBLE TYPE |
41317-10010 |
— | ||
|
41331
|
41331
41331-10020
Gear, Rear Differential Side
[04.1969 - 12.1971] UP3# N=16 |
41331-10020 |
— | ||
|
41341
|
41341
41341-10010
Pinion, Rear Differential
[04.1969 - 12.1971] UP3# N=10 |
41341-10010 |
— | ||
|
41342
|
41342
41342-10010
Shaft, Rear Differential Pinion
[04.1969 - 12.1971] UP3# |
41342-10010 |
— | ||
|
41343
|
41343
90250-04053 Pin, Straight (For Front Differential Pinion Shaft)[04.1969 - 12.1971] UP3# |
90250-04053 |
US $1.79 |
||
|
9020609052
|
9020609052
90206-09052 Washer (For Propeller Shaft) |
90206-09052 |
US $2.91 |
||
|
9111140612
|
9111140612
91111-40612
New Genuine Part
|
91111-40612 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
