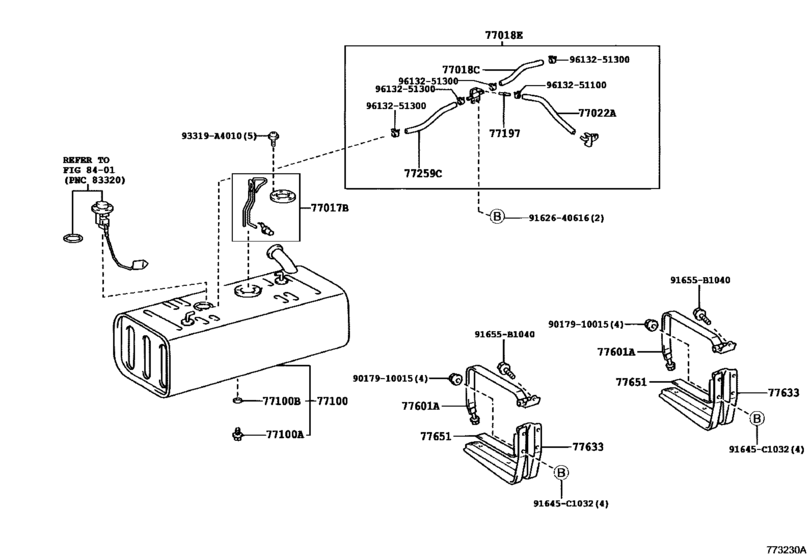

Fuel Tank & Tube ([03.2012 - ] ﾌｭｰｴﾙﾀﾝｸ (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77017B
|
77017B
77017-37060 Tube Sub-Assy, Fuel Tank Vent[03.2012 -] XZU282 |
77017-37060 |
US $29.27 |
||
|
77018C
|
77018C
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[03.2012 -] XZU282 ＊Ｈ，Ｌ＝２８０，内径＝７．６ |
95333-08030 |
US $11.83 |
||
|
77018E
|
77018E
77018-37120 Tube Sub-Assy, Fuel Tank Evaporation Vent[03.2012 -] XZU282 |
77018-37120 |
US $42.22 |
||
|
77022A
|
77022A
95333-06030
Hose, Fuel
[03.2012 -] XZU282 ＊Ｈ，Ｌ＝２８０ |
95333-06030 |
— | ||
| replacement | |||||
|
77022A
|
77022A
95338-06030 HOSE, FUEL[03.2012 -] XZU282 ＊Ｈ，Ｌ＝２８０ |
95338-06030 |
from US $10.39 |
||
|
77100
|
77100
77001-37540 Tank Assy, Fuel[03.2012 -] XZU282 |
77001-37540 |
US $495.04 |
||
|
77100A
|
77100A
90105-12116 Plug(For Fuel Tank)[03.2012 - 12.2012] XZU282 |
90105-12116 |
from US $1.31 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[03.2012 -] XZU282 |
90430-12245 |
from US $0.88 |
||
|
77197
|
77197
90977-02001 Orifice, Fuel Vapour[03.2012 -] XZU282 |
90977-02001 |
US $3.93 |
||
|
77259C
|
77259C
77259-60380 Hose, Fuel[03.2012 -] XZU282 |
77259-60380 |
US $15.43 |
||
|
77601A
|
77601A
77601-37010 Band Sub-Assy, Fuel Tank, No.1[03.2012 -] XZU282 |
77601-37010 |
US $27.66 |
||
|
77633
|
77633
77633-37140 Stay, Fuel Tank[03.2012 -] XZU282 |
77633-37140 |
US $78.62 |
||
|
77651
|
77651
77651-36110 Packing, Fuel Tank Bracket[03.2012 -] XZU282 |
77651-36110 |
US $7.43 |
||
|
91645C1032
|
91645C1032
91645-C1032 Bolt, Fuel Tank |
91645-C1032 |
US $3.58 |
||
|
91655B1040
|
91655B1040
91655-B1040 BOLT WWASHER |
91655-B1040 |
US $2.33 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.68 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
