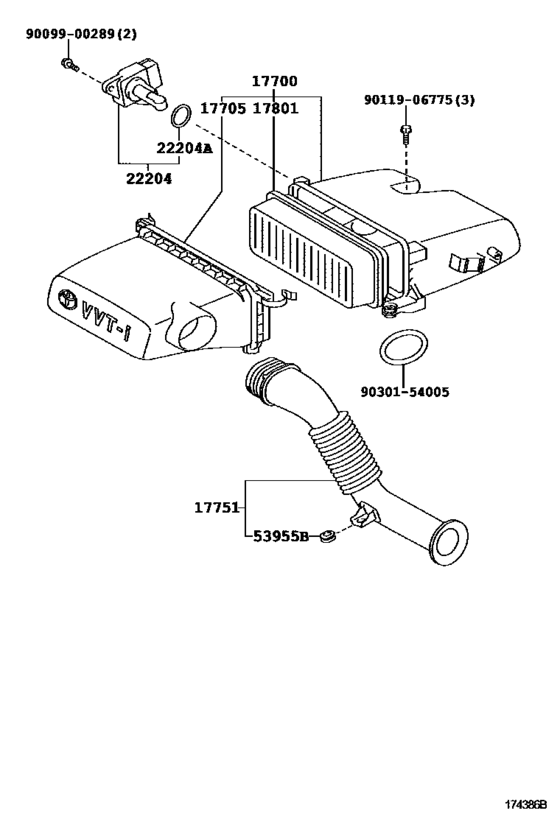

Air Cleaner ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-23082 Cleaner Assy, Air[10.2009 -] 2SZFE..SCP100 |
17700-23082 |
US $279.55 |
||
|
17705
|
17705
17705-23060
Cap Sub-Assy, Air Cleaner
[10.2009 -] 2SZFE..SCP100 |
17705-23060 |
— | ||
|
17751
|
17751
17751-23040 Inlet, Air Cleaner, No.1[10.2009 -] 2SZFE..SCP100 |
17751-23040 |
US $51.83 |
||
|
17801
|
17801
17801-23030 Element Sub-Assy, Air Cleaner Filter[10.2009 -] 2SZFE..SCP100 |
17801-23030 |
from US $25.56 |
||
|
22204
|
22204
22204-0C020 Meter Sub-Assy, Intake Air Flow[10.2009 -] 2SZFE..SCP100 (L) |
22204-0C020 |
US $152.55 |
||
| replacement | |||||
|
22204
|
22204
22204-22010 Meter Sub-Assy, Intake Air Flow[10.2009 -] 2SZFE..SCP100 (L) |
22204-22010 |
from US $135.15 |
||
|
22204
|
22204
22204-22010 Meter Sub-Assy, Intake Air Flow[10.2009 -] 2SZFE..SCP100 (J) |
22204-22010 |
from US $135.15 |
||
|
22204A
|
22204A
90099-14141 Ring, O(For Intake Air Flow Meter)[10.2009 -] 2SZFE..SCP100 |
90099-14141 |
from US $1.09 |
||
|
53955B
|
53955B
53955-52010 Cushion, Air Cleaner Inlet, No.1[10.2009 - 08.2010] SCP100 |
53955-52010 |
US $6.81 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.66 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9030154005
|
9030154005
90301-54005 RING O |
90301-54005 |
from US $7 |
||
