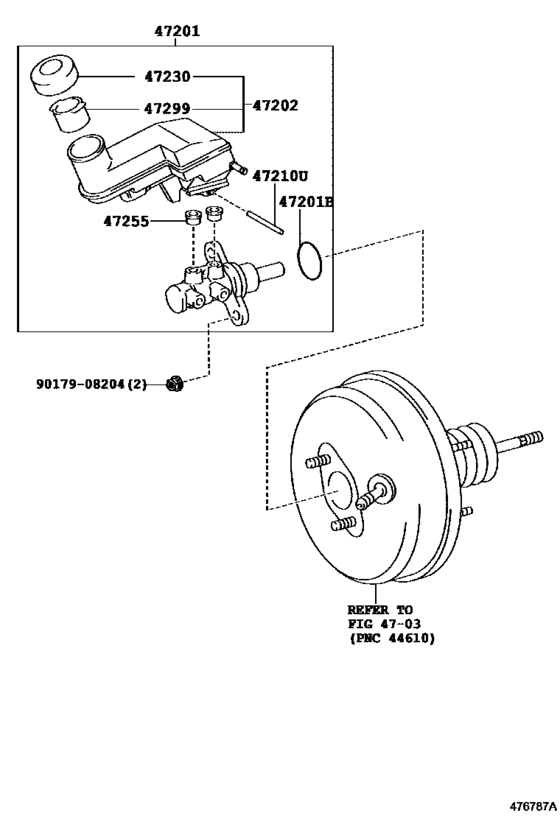

Brake Master Cylinder ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-52250
Cylinder Sub-Assy, Brake Master
[10.2009 - 08.2010] SCP100 |
47201-52250 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-52251 Cylinder Sub-Assy, Brake Master[10.2009 - 08.2010] SCP100 |
47201-52251 |
US $449.28 |
||
|
47201B
|
47201B
90015-AH001 Ring, O(For Brake Master Cylinder)[10.2009 -] SCP100 |
90015-AH001 |
from US $1.19 |
||
|
47202
|
47202
47220-52110 Reservoir Sub-Assy, Brake Master Cylinder[10.2009 - 08.2010] SCP100 |
47220-52110 |
US $88.82 |
||
|
47210U
|
47210U
90015-AE401 Ring Pin, Brake Master Cylinder[10.2009 -] SCP100 |
90015-AE401 |
US $3.20 |
||
|
47230
|
47230
47230-33071 Cap Assy, Brake Master Cylinder Reservoir FillerBRAKE MASTER CYLINDER RESERVOIR FILLER [05.2010 -] SCP100 |
47230-33071 |
US $12.67 |
||
| replacement | |||||
|
47230
|
47230
47230-33072 Cap Assy, Brake Master Cylinder Reservoir Filler[05.2010 -] SCP100 |
47230-33072 |
from US $9.26 |
||
|
47230
|
47230
47230-52030 Cap Assy, Brake Master Cylinder Reservoir Filler[10.2009 - 05.2010] SCP100 |
47230-52030 |
US $15.29 |
||
| replacement | |||||
|
47230
|
47230
47230-33072 Cap Assy, Brake Master Cylinder Reservoir Filler[10.2009 - 05.2010] SCP100 |
47230-33072 |
from US $9.26 |
||
|
47255
|
47255
90015-AT001 Grommet, Master Cylinder Reservoir[10.2009 -] SCP100 |
90015-AT001 |
US $9.32 |
||
|
47299
|
47299
47299-52110 Strainer, Brake Master Cylinder Reservoir[10.2009 -] SCP100 |
47299-52110 |
US $6.99 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
