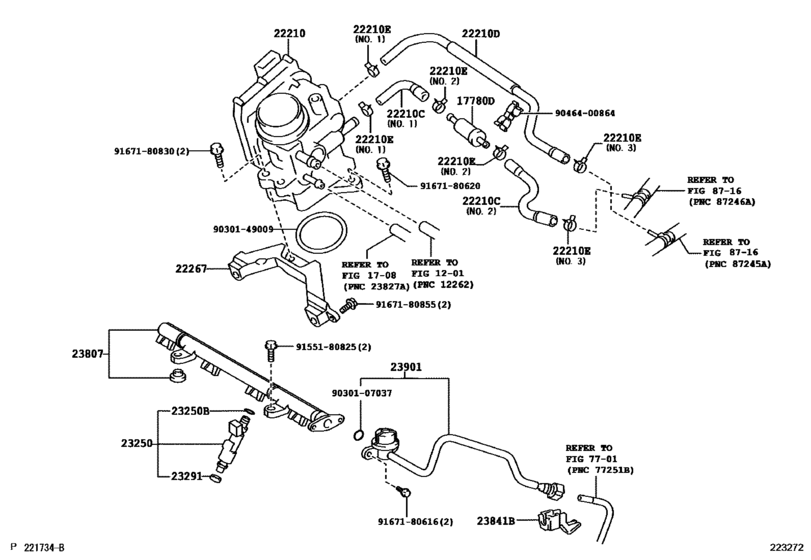

Fuel Injection System ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17780D
|
17780D
17780-23010 Valve Assy, Thermostat[10.2009 -] 2SZFE..SCP100 |
17780-23010 |
US $50.06 |
||
|
22210
|
22210
22030-23010 Body Assy, Throttle[10.2009 -] 2SZFE..SCP100 |
22030-23010 |
US $939.12 |
||
|
22210C
|
22210C
16261-23040 Hose, Water By-Pass, No.1[10.2009 - 08.2010] 2SZFE..SCP100 NO.1 |
16261-23040 |
US $10.39 |
||
|
22210C
|
22210C
16261-23070 Hose, Water By-Pass, No.1[10.2009 - 08.2010] 2SZFE..SCP100 NO.2 |
16261-23070 |
US $10.39 |
||
|
22210D
|
22210D
16264-23050 Hose, Water By-Pass, No.2[10.2009 - 08.2010] 2SZFE..SCP100 |
16264-23050 |
US $10.39 |
||
|
22210E
|
22210E
90466-10002 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[10.2009 - 08.2010] 2SZFE..SCP100 NO.1 |
90466-10002 |
US $2.33 |
||
|
22210E
|
22210E
90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[10.2009 - 08.2010] 2SZFE..SCP100 NO.3 |
90466-12001 |
US $2.15 |
||
|
22210E
|
22210E
90467-12062 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[10.2009 - 08.2010] 2SZFE..SCP100 NO.2 |
90467-12062 |
US $1.61 |
||
|
22267
|
22267
22267-23020 Bracket, Throttle Body[10.2009 -] 2SZFE..SCP100 |
22267-23020 |
US $38.44 |
||
|
23250
|
23250
23209-29015 Injector Assy, Fuel[10.2009 -] 2SZFE..SCP100 |
23209-29015 |
US $313.56 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[10.2009 -] 2SZFE..SCP100 |
90301-07037 |
from US $2.18 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[10.2009 -] 2SZFE..SCP100 |
23291-23010 |
from US $2.59 |
||
|
23807
|
23807
23807-23041 Pipe Sub-Assy, Fuel Delivery[10.2009 -] 2SZFE..SCP100 |
23807-23041 |
US $63.77 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[10.2009 - 08.2010] 2SZFE..SCP100 |
23841-21050 |
US $3.94 |
||
|
23901
|
23901
23901-23040 Tube Sub-Assy, Fuel[10.2009 - 08.2010] 2SZFE..SCP100 |
23901-23040 |
US $143.27 |
||
|
9030107037
|
9030107037
90301-07037 Ring, O(For Fuel Injector) |
90301-07037 |
from US $2.18 |
||
|
9030149009
|
9030149009
90301-49009 RING O |
90301-49009 |
from US $3.80 |
||
|
9046400864
|
9046400864
90464-00864 New Genuine Part |
90464-00864 |
US $2.04 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.80 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $1.08 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.43 |
||
|
9167180855
|
9167180855
91671-80855 New Genuine Part |
91671-80855 |
US $3.05 |
