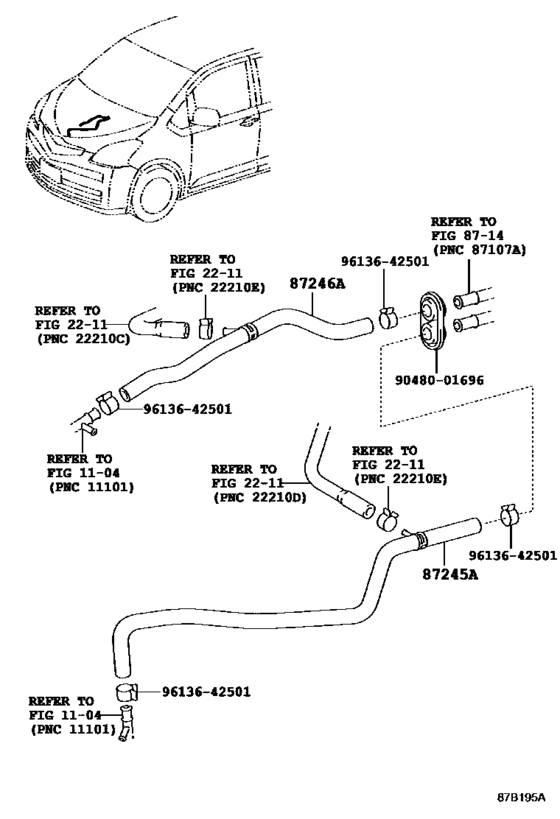

Heating & Air Conditioning - Water Piping ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87209-52170 Hose, Heater Water, Inlet A[10.2009 - 08.2010] SCP100 |
87209-52170 |
US $40.99 |
||
|
87246A
|
87246A
87209-52180 Hose, Heater Water, Outlet A[10.2009 -] SCP100 |
87209-52180 |
US $35.78 |
||
|
9048001696
|
9048001696
90480-01696
Grommet, Heater
|
90480-01696 |
— | ||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.26 |
