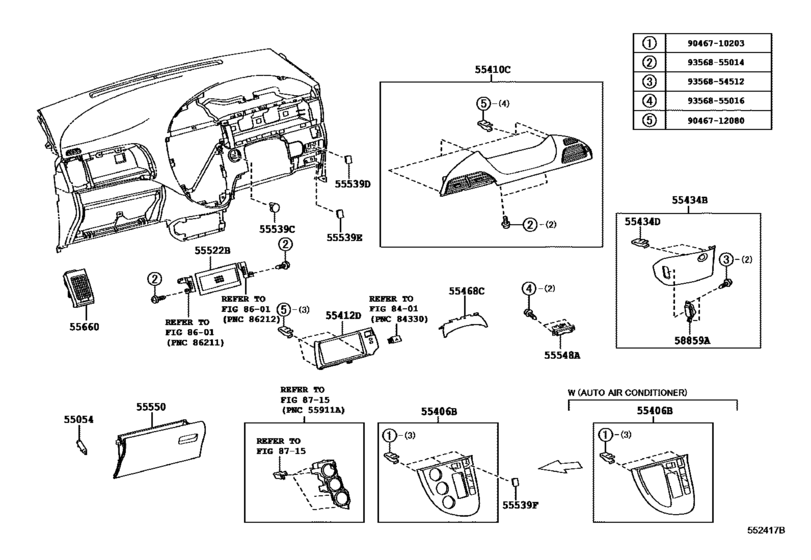

Instrument Panel & Glove Compartment ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-52020 Stopper Sub-Assy, Glove Compartment Door[10.2009 -] SCP100 |
55054-52020 |
US $11.83 |
||
|
55406B
|
55406B
55406-52220 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[10.2009 - 08.2010] SCP100 |
55406-52220 |
US $87.36 |
||
|
55406B
|
55406B
55406-52230 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[10.2009 - 08.2010] SCP100 L PACKAGE |
55406-52230 |
US $87.36 |
||
|
55410C
|
55410C
55410-52070-B0 Panel Assy, Instrument Cluster Finish[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
55410-52070-B0 |
US $273.73 |
||
|
55412D
|
55412D
55412-52350 Panel, Instrument Cluster Finish, Center[10.2009 -] SCP100 |
55412-52350 |
US $72.36 |
||
|
55434B
|
55434B
55434-52160-B0 Panel, Instrument Panel Finish, Lower Center[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
55434-52160-B0 |
US $60.72 |
||
|
55434D
|
55434D
90467-12080 Clip(For Panel, Instrument Cluster Finish)[10.2009 -] SCP100 |
90467-12080 |
from US $0.76 |
||
|
55468C
|
55468C
55468-52030 Seal, Instrument Cluster Finish Panel, No.1[10.2009 -] SCP100 |
55468-52030 |
US $9.17 |
||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[10.2009 -] SCP100 |
55522-52020 |
from US $14.14 |
||
|
55539C
|
55539C
55539-52040-B0 Cover, Spare Switch Hole[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1#; SCP100 L PACKAGE,DK.GRAY,TRIM1# |
55539-52040-B0 |
US $5.56 |
||
|
55539D
|
55539D
55539-52060-B0 Cover, Spare Switch Hole[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
55539-52060-B0 |
from US $3.80 |
||
|
55539E
|
55539E
55539-52060-B0 Cover, Spare Switch Hole[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1#; SCP100 L PACKAGE,DK.GRAY,TRIM1# |
55539-52060-B0 |
from US $3.80 |
||
|
55539F
|
55539F
55539-52060-B0 Cover, Spare Switch Hole[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
55539-52060-B0 |
from US $3.80 |
||
|
55548A
|
55548A
55548-52030-B0 Cover, Instrument Panel Hole[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
55548-52030-B0 |
US $10.93 |
||
|
55550
|
55550
55550-52160-B0 Door Assy, Glove Compartment[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
55550-52160-B0 |
US $177.63 |
||
|
55660
|
55660
55660-52030-B0 Register Assy, Instrument Panel, No.2[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
55660-52030-B0 |
US $94.64 |
||
|
58859A
|
58859A
58859-33010-B2 Hook, Console Box Holder[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
58859-33010-B2 |
US $18.35 |
||
| replacement | |||||
|
58859A
|
58859A
58859-33010-C0 Hook, Console Box HolderCONSOLE BOX HOLDER [10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
58859-33010-C0 |
US $22.13 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
