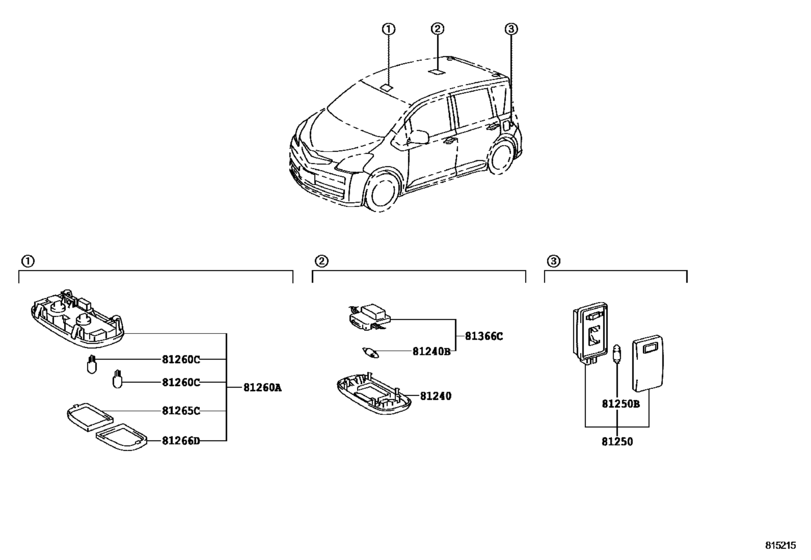

Interior Lamp ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81240
|
81240
81240-68010-B0 Lamp Assy, Room, No.1[10.2009 - 08.2010] SCP100 LT.GRAY,TRIM1# |
81240-68010-B0 |
US $33.20 |
||
|
81240B
|
81240B
90981-14011 Bulb, Room Lamp, No.1[10.2009 -] SCP100 12V 8W |
90981-14011 |
from US $1.89 |
||
|
81250
|
81250
81250-48010 Lamp Assy, Room, No.2[10.2009 - 08.2010] SCP100 |
81250-48010 |
from US $23.93 |
||
|
81250B
|
81250B
99132-13050 Bulb(For Courtesy Lamp)[10.2009 -] SCP100 12V 5W |
99132-13050 |
from US $2.57 |
||
| replacement | |||||
|
81250B
|
81250B
00234-13050 Bulb,Room Lamp[10.2009 -] SCP100 12V 5W |
00234-13050 |
US $2.82 |
||
|
81260A
|
81260A
81260-52030-B1 Lamp Assy, Map[10.2009 - 08.2010] SCP100 LT.GRAY,TRIM1# |
81260-52030-B1 |
US $70.47 |
||
|
81260C
|
81260C
90981-11062 Bulb, Room Lamp, No.1[10.2009 -] SCP100 12V 8W |
90981-11062 |
from US $2.54 |
||
|
81265C
|
81265C
81265-52020 Lens, Map Lamp, No.1[10.2009 -] SCP100 |
81265-52020 |
from US $2.15 |
||
|
81266D
|
81266D
81266-52020 Lens, Map Lamp, No.2[10.2009 -] SCP100 |
81266-52020 |
from US $2.11 |
||
|
81366C
|
81366C
81366-68010 Base, Room Lamp Switch[10.2009 - 08.2010] SCP100 |
81366-68010 |
from US $10.87 |
||
