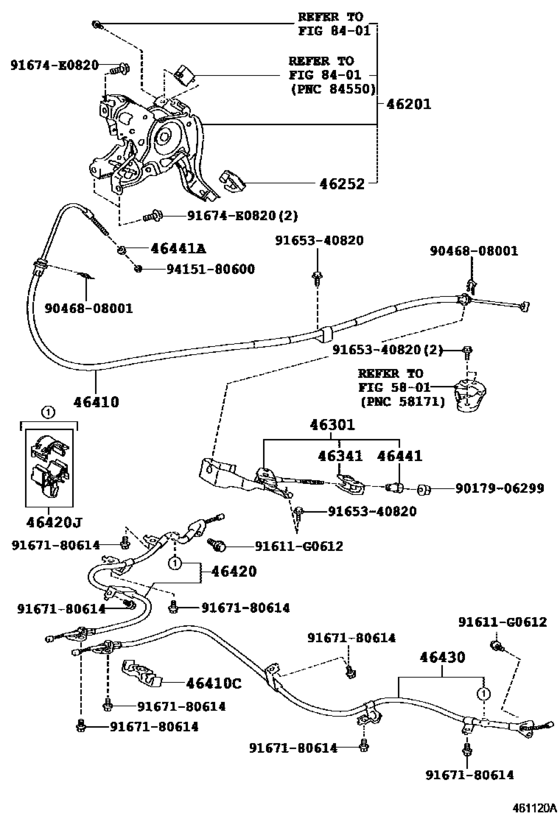

Parking Brake & Cable ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201
|
46201
46210-52110 Pedal Sub-Assy, Parking Brake[10.2009 -] SCP100 |
46210-52110 |
US $104.96 |
||
|
46252
|
46252
46252-52020 Pad, Parking Pedal[10.2009 -] SCP100 |
46252-52020 |
US $4.12 |
||
|
46301
|
46301
46320-52020 Lever Sub-Assy, Parking Brake Intermediate[10.2009 - 08.2010] SCP100 |
46320-52020 |
US $35.53 |
||
|
46341
|
46341
46341-52010 Equalizer, Parking Brake[10.2009 -] SCP100 |
46341-52010 |
US $5.53 |
||
|
46410
|
46410
46410-52040 Cable Assy, Parking Brake, No.1[10.2009 -] SCP100 |
46410-52040 |
US $43.10 |
||
|
46410C
|
46410C
46411-52030 Clamp(For Parking Brake Front Cable)[10.2009 -] SCP100 |
46411-52030 |
US $7.71 |
||
|
46420
|
46420
46420-52180 Cable Assy, Parking Brake, No.2[10.2009 - 08.2010] SCP100 |
46420-52180 |
US $50.80 |
||
|
46420J
|
46420J
46402-52030 Clamp, No.1(For Parking Brake Cable)[10.2009 -] SCP100 |
46402-52030 |
US $6.81 |
||
|
46430
|
46430
46430-52180 Cable Assy, Parking Brake, No.3[10.2009 - 08.2010] SCP100 |
46430-52180 |
US $83.64 |
||
|
46441
|
46441
46441-52010 Nut, Wire Adjusting, No.1[10.2009 -] SCP100 |
46441-52010 |
US $2.62 |
||
|
46441A
|
46441A
46441-12010 Nut, Wire Adjusting, No.1[10.2009 -] SCP100 |
46441-12010 |
US $2.87 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
91674E0820
|
91674E0820
91674-E0820 New Genuine Part |
91674-E0820 |
US $1.02 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
|
9165340820
|
9165340820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
