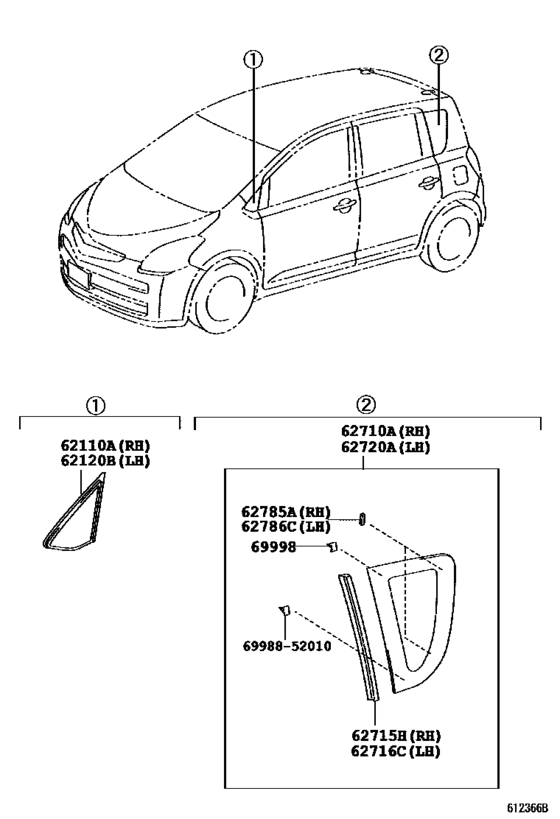

Quarter Window ([10.2009 - ] (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62110A
|
62110A
62110-52020
Window Assy, Front Side Fix, Rh
[10.2009 -] SCP100 |
62110-52020 |
— | ||
|
62120B
|
62120B
62120-52020
Window Assy, Front Side Fix, Lh
[10.2009 -] SCP100 |
62120-52020 |
— | ||
|
62710A
|
62710A
62710-52230
Window Assy, Quarter, Rh
[10.2009 -] SCP100 *UVCT,T=2.8,GREEN |
62710-52230 |
— | ||
|
62715H
|
62715H
62715-52050 Dam, Quarter Window Glass Adhesive, Rh[10.2009 -] SCP100 |
62715-52050 |
US $10.93 |
||
|
62716C
|
62716C
62715-52050 Dam, Quarter Window Glass Adhesive, Rh[10.2009 -] SCP100 |
62715-52050 |
US $10.93 |
||
|
62720A
|
62720A
62720-52230
Window Assy, Quarter, Lh
[10.2009 -] SCP100 *UVCT,T=2.8,GREEN |
62720-52230 |
— | ||
|
62785A
|
62785A
62785-16030 Spacer Quarter Panel, No.1[10.2009 -] SCP100 |
62785-16030 |
from US $2.07 |
||
|
62786C
|
62786C
62785-16030 Spacer Quarter Panel, No.1[10.2009 -] SCP100 |
62785-16030 |
from US $2.07 |
||
|
69998
|
69998
69998-52040 Pin, Quarter Window Guide Piece, No.1[10.2009 -] SCP100 RH |
69998-52040 |
US $3.30 |
||
|
69998
|
69998
69999-52010 Pin, Quarter Window Guide Piece, No.1[10.2009 -] SCP100 LH |
69999-52010 |
US $3.30 |
||
|
6998852010
|
6998852010
69988-52010 Spacer, Quarter Window Glass |
69988-52010 |
US $4.84 |
