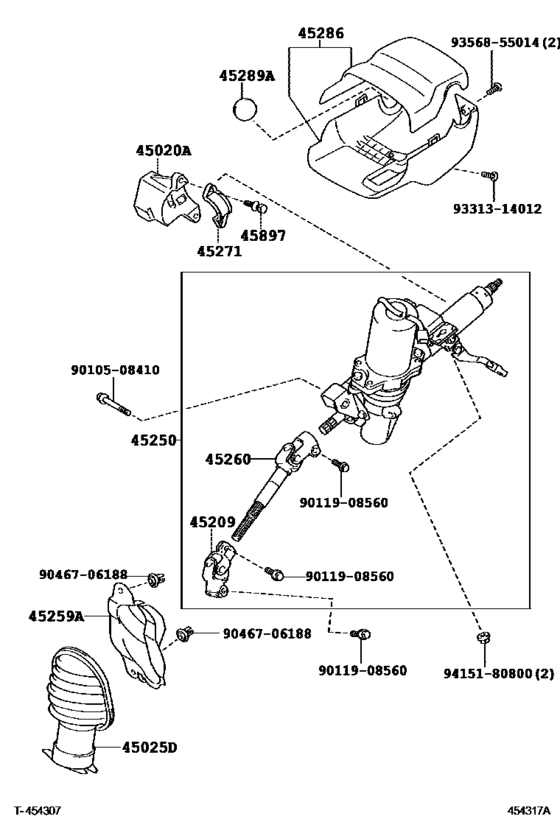

Steering Column & Shaft ([10.2009 - ] W(SMART KEY SYSTEM) (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020A
|
45020A
45020-52140 Actuator Assy, Steering Lock[10.2009 -] SCP100 L PACKAGE |
45020-52140 |
US $225.76 |
||
|
45025D
|
45025D
45025-52140
Cover Sub-Assy, Steering Column Hole, No.1
[10.2009 -] SCP100 |
45025-52140 |
— | ||
| replacement | |||||
|
45025D
|
45025D
45025-52170 Cover Sub-Assy, Steering Column Hole, No.1[10.2009 -] SCP100 |
45025-52170 |
US $50.90 |
||
|
45209
|
45209
45209-52070 Yoke Sub-Assy, Steering Sliding[10.2009 -] SCP100 |
45209-52070 |
US $65.96 |
||
|
45250
|
45250
45250-52162 Column Assy, Steering[10.2009 - 08.2010] SCP100 |
45250-52162 |
US $1,166.26 |
||
|
45250
|
45250
45250-52172 Column Assy, Steering[10.2009 - 08.2010] SCP100 L PACKAGE |
45250-52172 |
US $1,166.26 |
||
|
45259A
|
45259A
45259-52010 Sheet, Column Hole Cover Silencer[10.2009 -] SCP100 |
45259-52010 |
US $9.32 |
||
|
45260
|
45260
45260-52221 Shaft Assy, Steering Intermediate, No.2[10.2009 -] SCP100 |
45260-52221 |
US $164.53 |
||
|
45271
|
45271
45271-52030 Clamp, Steering Column, Upper[10.2009 -] SCP100 |
45271-52030 |
from US $6.96 |
||
|
45286
|
45286
45286-52931-B0 Cover, Steering Column[10.2009 - 08.2010] SCP100 DK.GRAY,TRIM1# |
45286-52931-B0 |
US $51.02 |
||
|
45289A
|
45289A
45289-52010-B0 Support, Steering Column Cover[10.2009 - 08.2010] SCP100 L PACKAGE,DK.GRAY,TRIM1# |
45289-52010-B0 |
US $2.91 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[10.2009 -] SCP100 |
45897-12020 |
from US $2.63 |
||
|
9010508410
|
9010508410
90105-08410 New Genuine Part |
90105-08410 |
US $1.40 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $4.47 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.87 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
