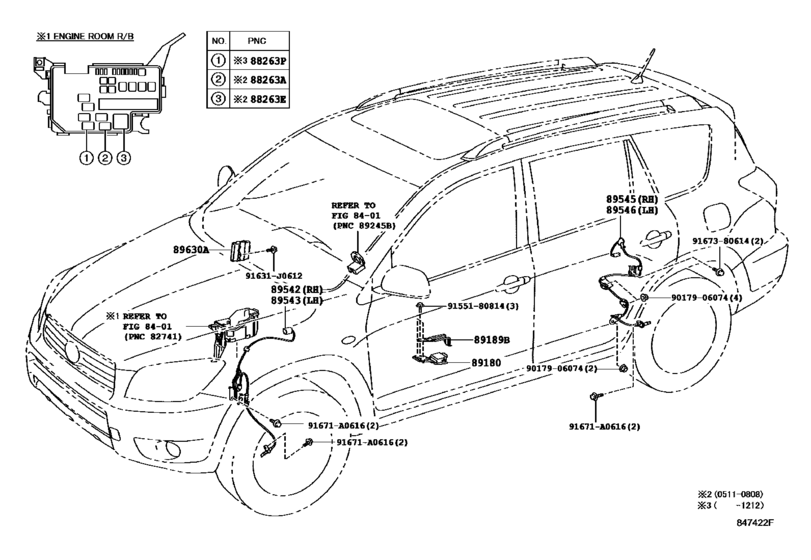

Abs & Vsc ([11.2005 - ] (0511- )ACA33,ASA33,GSA33) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Frame
- ACA33
- grade
- LIMD
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 11.2005
- To
- 08.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88263A
|
88263A
88263-32070 Relay, Skid Control[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
88263-32070 |
US $47.21 |
||
|
88263E
|
88263E
88263-21010 Relay[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
88263-21010 |
from US $41.15 |
||
|
88263P
|
88263P
90987-04004 Relay, Starter Cut[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
90987-04004 |
from US $47.21 |
||
|
89180
|
89180
89180-42020 Sensor Assy, Yawrate[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
89180-42020 |
US $1,616.16 |
||
|
89189B
|
89189B
89189-42010 Bracket, Yawrate Sensor[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
89189-42010 |
US $14.12 |
||
|
89542
|
89542
89542-42050 Sensor, Speed, Front Rh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
89542-42050 |
from US $158.73 |
||
|
89543
|
89543
89543-42050 Sensor, Speed, Front Lh[11.2005 - 08.2008] ACA3#,GSA3#..JPP |
89543-42050 |
from US $173.24 |
||
|
89545
|
89545
89545-42040 Sensor, Speed, Rear Rh[11.2005 - 08.2008] ACA33,GSA33..JPP |
89545-42040 |
from US $208.34 |
||
|
89546
|
89546
89546-42040 Sensor, Speed, Rear Lh[11.2005 - 08.2008] ACA33,GSA33..JPP |
89546-42040 |
from US $208.71 |
||
|
89630A
|
89630A
89630-42010 Computer Assy, 4Wd[11.2005 - 02.2007] ACA33,GSA33..JPP |
89630-42010 |
US $661.02 |
||
| replacement | |||||
|
89630A
|
89630A
89630-42020 Computer Assy, 4Wd[11.2005 - 02.2007] ACA33,GSA33..JPP |
89630-42020 |
US $548.91 |
||
|
89630A
|
89630A
89630-42020 Computer Assy, 4Wd[03.2007 - 08.2008] ACA33,GSA33..JPP |
89630-42020 |
US $548.91 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.64 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.61 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
|
9167380614
|
9167380614
91673-80614 BOLT, FLANGE W/WASER |
91673-80614 |
US $1.08 |
||
