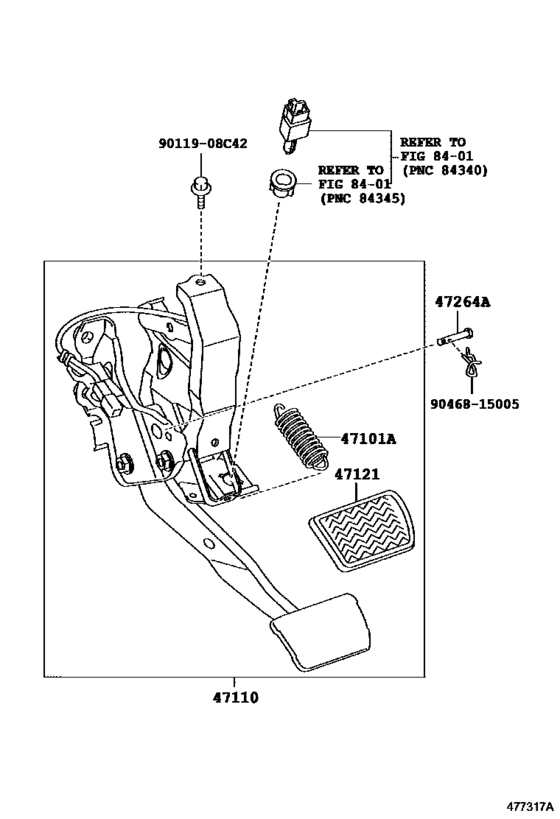

Brake Pedal & Bracket ([11.2005 - ] W(VSC) (0511- )LHD) Diagram Toyota RAV4/VANGUARD
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ACA33
- grade
- G
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 11.2005
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101A
|
47101A
47146-42020 Spring(For Brake Pedal Return)[11.2005 - 12.2008] ACA33..G..GCC;ACA30,31,ALA30..LHD |
47146-42020 |
US $3.49 |
||
|
47110
|
47110
47110-42190
Support Assy, Brake Pedal
[11.2005 - 12.2008] ACA33..G..GCC; ACA30..LHD..4FC..X WITHOUT(VSC) |
47110-42190 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-42192
Support Assy, Brake Pedal
[11.2005 - 12.2008] ACA33..G..GCC; ACA30..LHD..4FC..X WITHOUT(VSC) |
47110-42192 |
— | ||
|
47110
|
47110
47110-42191
Support Assy, Brake Pedal
[12.2009 - 08.2011] ACA33,38..4FC..(GCC,GEN); ACA30,ZSA30..LHD..ATM..X VSC-WITHOUT |
47110-42191 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-42192
Support Assy, Brake Pedal
[12.2009 - 08.2011] ACA33,38..4FC..(GCC,GEN); ACA30,ZSA30..LHD..ATM..X VSC-WITHOUT |
47110-42192 |
— | ||
|
47110
|
47110
47110-42192
Support Assy, Brake Pedal
[09.2011 - 12.2012] ACA33,38..4FC..(GCC,GEN); ACA30,ZSA30..LHD..ATM..X VSC-WITHOUT |
47110-42192 |
— | ||
|
47110
|
47110
47110-42200
Support Assy, Brake Pedal
[11.2005 - 12.2008] ACA30,31..LHD..4FC; ACA33..G..GCC WITH(VSC) |
47110-42200 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-42202
Support Assy, Brake Pedal
[11.2005 - 12.2008] ACA30,31..LHD..4FC; ACA33..G..GCC WITH(VSC) |
47110-42202 |
— | ||
|
47110
|
47110
47110-42201
Support Assy, Brake Pedal
[12.2009 - 08.2011] ACA30,33,ALA30,ZSA30..LHD..ATM..EUR; ACA33,38..G..GCC VSC-WITH |
47110-42201 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-42202
Support Assy, Brake Pedal
[12.2009 - 08.2011] ACA30,33,ALA30,ZSA30..LHD..ATM..EUR; ACA33,38..G..GCC VSC-WITH |
47110-42202 |
— | ||
|
47110
|
47110
47110-42202
Support Assy, Brake Pedal
[09.2011 - 12.2012] ACA30,33,ALA30,ZSA30..LHD..ATM..EUR; ACA33,38..G..GCC VSC-WITH |
47110-42202 |
— | ||
|
47121
|
47121
47121-42010 Pad, Brake Pedal[11.2005 - 12.2008] ACA30,31..4FC;ACA33..G..GCC |
47121-42010 |
from US $4.17 |
||
|
47264A
|
47264A
90249-06180 Pin(For Push Rod)[11.2005 - 12.2008] ACA30,31,ALA30; ACA33..G..GCC WITH(VSC) |
90249-06180 |
US $0.96 |
||
|
47264A
|
47264A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[11.2005 - 12.2006] ACA38;ACA33..X;ACA33..LHD..G; ACA30,ALA30..X WITHOUT(VSC) |
90249-08051 |
US $3.05 |
||
|
47264A
|
47264A
90249-08256 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[01.2007 - 12.2008] ACA33..G..GCC; ACA30,ALA30..X WITHOUT(VSC) |
90249-08256 |
US $2.33 |
||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.43 |
||
|
9046815005
|
9046815005
90468-15005 CLIP |
90468-15005 |
US $1.97 |
||
